High Temperature Flange Connection Boiler Water Reflex Sight Glass Level Gauge

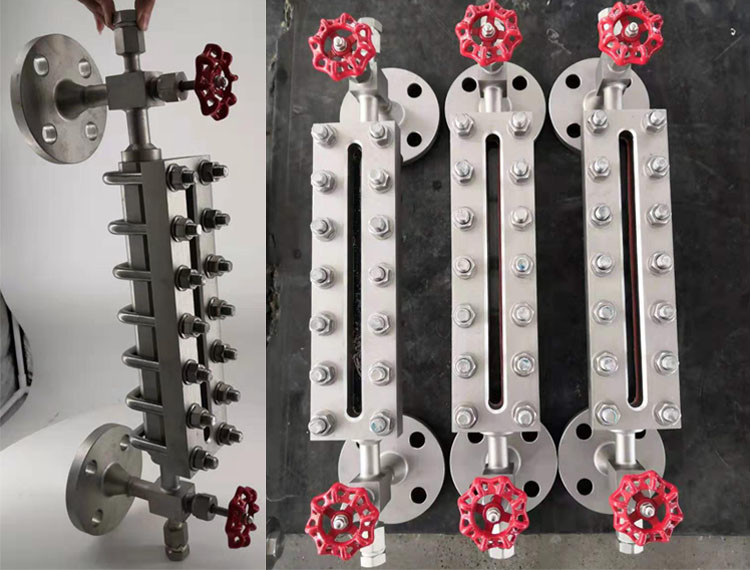

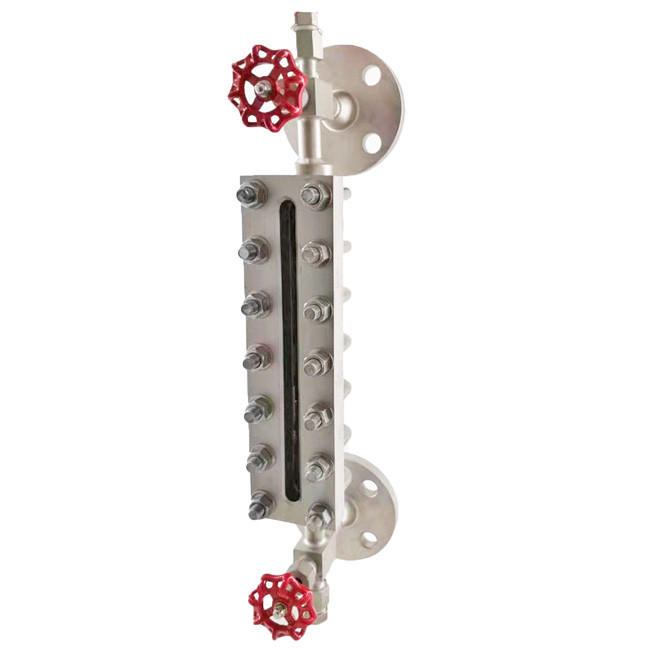

According to the principle of connector, the reflective glass level gauge leads the medium liquid in the container to the external glass plate level gauge. There is a reflective plate behind it, which can directly display the actual height of the liquid level in the container through transparent glass.
The instrument valve stem sealing packing adopts flexible graphite pressure ring, with reliable sealing performance. Vacorda two-color glass plate liquid level gauge is an updated product of Ub type glass plate liquid level gauge. It is connected by flange. It is used for liquid level indication in pressurized or open containers in various industrial systems, especially for on-site indication of colorless and transparent liquids, such as liquid level measurement of water, liquid ammonia, light oil, liquefied gas and other media.
Why choose us:
- 24 years professional manufacturer in China, 30% Senior professional engineers, sales market nearly 30 countries
- Our factory nearly 20000 m2, hundreds of CNC equipments and inspection devices
- Certification: 20 Technology Patents, ISO9001:2015, European CE and ATEX explosion-proof certificate
- The structure of level gauge is designed according to the world leading brands - US Emerson & Germany WIKA & Switzerland E+H
- Flange manufactured to meet ASME/ANSI, JIS, DIN, HG/T20592-2009 standard
- One - year quality warranty
- Great measurement accuracy and reliability, Longest using life up to 10 years
- OEM accept

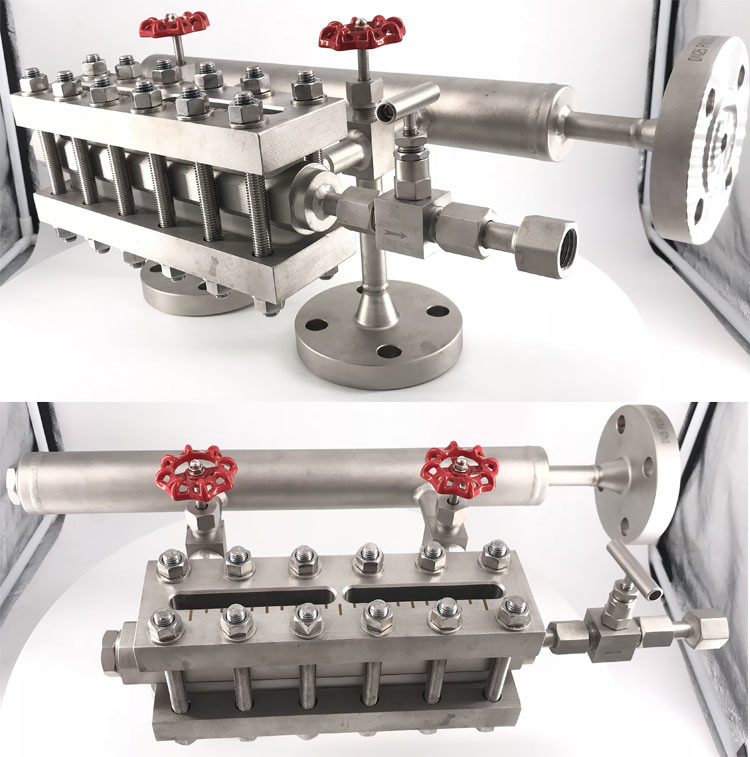

Glass plate level gauge is divided into three kinds: Transparent type, reflection-type and sight glass type. The level gauge is mainly composed by level gauge’s body, upper valve (gas valve), lower valve (liquid valve), drain valve, insurance steel ball and so on. When the glass plate have some cracks or be damaged, the insurance steel ball will automatically stop the side valve of gas and liquid to avoid or reduce flowing. So the worker can cut off the bottom valve to handle it. This series product is stable, sealed and reliable, simple installation, which is ideal instrument for detecting for liquid level in all kinds of containers with middle or low pressure.
Connecting the upper and lower flanges of this level gauge with the upper and lower flanges of the container to form a permeator, then the height of liquid can be directly seen.
Features
1. Clear and direct reading, good sealability.
2. High working temperature: ≤+250°C
3. High working pressure: ≤PN300
4. Long lifetime, simple structure, easy installation and maintenance
Technical parameters
| Nominal length (center to center ): | 0~300-0~2000mm |
| Recommended length: | 550, 850, 1150, 1450, 1750mm |
| Material: | Carbon steel, 304, 316L |
| Nominal pressure (MPa): | Transparent type: 2.5, 6.3; Reflection-type: 4.0; Sight glass type: 0.1, 0.6 |
| Working temperature: | 0~250℃ |
| Connection flange: | DN20 (3/4”); A,B type---HG20592; C type---HG20615-09 |
| Heating steam cube connector: | RC1/4 internal thread |
| Heating steam pressure: | ≤1.0MPa |
| Steel ball closing pressure: | ≥0.3MPa |
