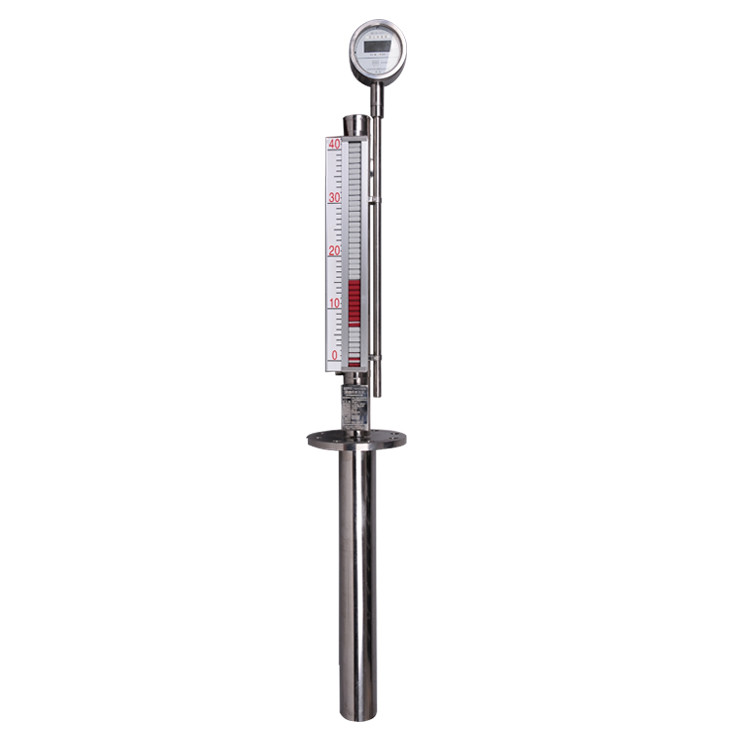

20mm Top Mounted PN2.5 Magnetic Liquid Water Level Gauge
Selection tips
1. Nominal pressure of anti-corrosion type≤1.0MPa.
2. The liquid level gauge has a certain blind zone, so the blind zone value compensation should be added when reading the liquid level height (the factory scale of the factory liquid gauge, the scale zero has been moved to the actual value).
3. The measuring range of the liquid level meter does not exceed 5 meters, otherwise it will affect the stability, reliability and fastness of the liquid level meter.
4. Install the connection flange, the common projected surface size of this liquid level meter leaves the factory (HG21592-97) manufacturing.
The components of UHC series magnetic float column level gauge are made of 1Cr18Ni9Ti, 316L, 304 stainless steel lined with PTFE, PVC, PP and other materials and imported components, which have excellent reliability, stability and corrosion resistance. Its characteristics are very significant:
※ Simple design, compact, sturdy and reliable, long life, no maintenance workload can be installed and used indoors and out for many years;
※ The measuring tube is completely isolated from the liquid level display part, liquid level transmitter and alarm switch in terms of pressure resistance and gas resistance;
※ Wide working pressure range, pressure resistance from vacuum to 42Mpa; corrosion resistance ≤2.5Mpa;
※ Wide working temperature range, suitable for -160~+450℃;
※ Widely used in strong and weak corrosive, flammable and explosive, toxic, strong radioactive, agitated, dirty liquid level measurement;
※ Each model can be equipped with magnetic alarm switch to realize automatic control or alarm of high and low liquid level;
※ Each model can be equipped with 4~20mADC liquid level sensor to realize long-distance centralized measurement and control.
Product Parameters
Center-center distance: | 150~6000mm |
Medium density: | More than 0.45g/cm3 |
Nominal pressure: | PN6~PN63(x 0.1MPa) |
Material: | SS304, 316L, PP, PTFE, or customized |
Operating temperature: | <80 °C |
Process connection: | Flange or customized |
Indicator types: | |
A: Al &ABS flap cylinder | B: Al flap plate |
C: PVC ABS flap cylinder | D: PP&ABS flap cylinder |
E: AL &LED | F: PP&LED |
Structure of top chamber: | 1.Welding cover 2.welding cover with M14*1.5 plug screw 3.flange 4.flange with M14*1.5 plug screw 5.welding cover with DN20 flange 6.flange with DN20 flange 7.welding cover with air valve 8.flange with air valve |
Structure of bottom chamber: | 1.flange cover 2.flange with drain plug screw 3.flange with DN20 welding tube 4.with DN20 flange 5.with needle/ball valve |
Protection class: |
IP65 |
Product Features
1. Simple structure, good stability and reliability.
2. Independent of medium’s physical and chemical states such as conductivity, dielectric constants, foam etc.
3. Appliable for all kinds of medium environment such as corrosive, toxic and explosive one.
4. Interface measurement or level measurement of 2 kinds of medium with different density.
5. Two-wire 4~20mADC signal output, 0.8’’ or 0.56” LED digital display.
