Handleheld DN15-DN6000 Clamp On Ultrasonic Flow Meter

1 piece
MOQ
Negotiable
Price
Handleheld DN15-DN6000 Clamp On Ultrasonic Flow Meter
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: DN15-DN6000 Clamp On Ultrasonic Flowmeter
Flow Range: 0.03m/s-5.00m/s
Accuracy: 1mm/s
Water Depth: 0.05m~10.00m
Remprerature Range: 0~60℃
Power Supply: 12VDC
Signal Output: RS485,RS232
High Light:

DN6000 Clamp On Ultrasonic Flow Meter

,

DN15 Clamp On Ultrasonic Flow Meter

,

DN6000 ultrasonic flow measurement

Basic Infomation
Place of Origin: china
Brand Name: vacorda
Certification: CE/ISO9001
Model Number: HKD
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 15 working day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 400 pieces/month
Product Description

Handleheld DN15-DN6000 Clamp On Ultrasonic Flow Meter

Ultrasonic flowmeter is an indispensable measuring instrument for measuring the flow of liquid, acid, and alkali. The accuracy of the set point-to-point related flowmeter is currently generally used in two ultrasonic flowmeters, Doppler ultrasonic flowmeter and time difference ultrasonic flowmeter. The Doppler type uses the phase difference method to measure the flow velocity. That is to say, because a sound wave of a known frequency moves in the fluid, the liquid itself has a moving speed, so the frequency or phase of the ultrasonic wave between the two receivers (or transmitters) will change relatively. The velocity of the liquid can be obtained by measuring this relative change. The time difference type uses the time difference method to measure the flow rate. That is to say, the propagation time of a sound wave of a certain speed between two receivers (or transmitters) due to the flow of the fluid changes, and the flow velocity of the fluid can be obtained by measuring this relative change. The correct installation method is very important to the flowmeter. Rui Lingyi shares installation tips and suggestions for ultrasonic flowmeters.

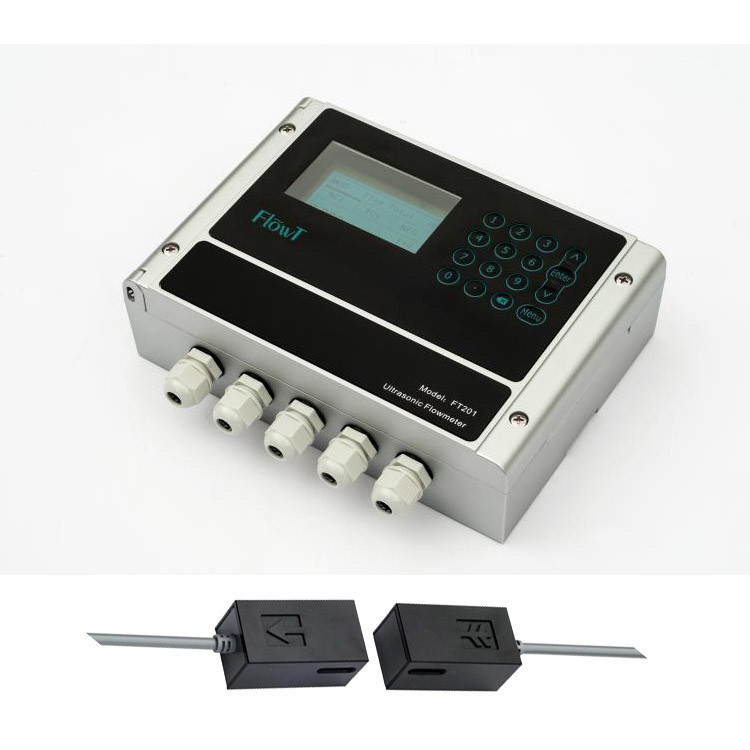

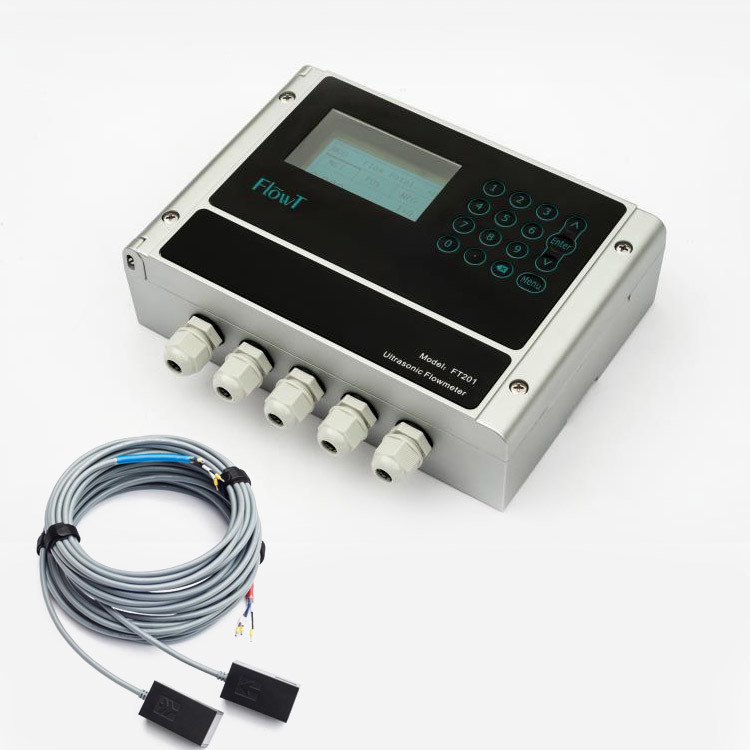

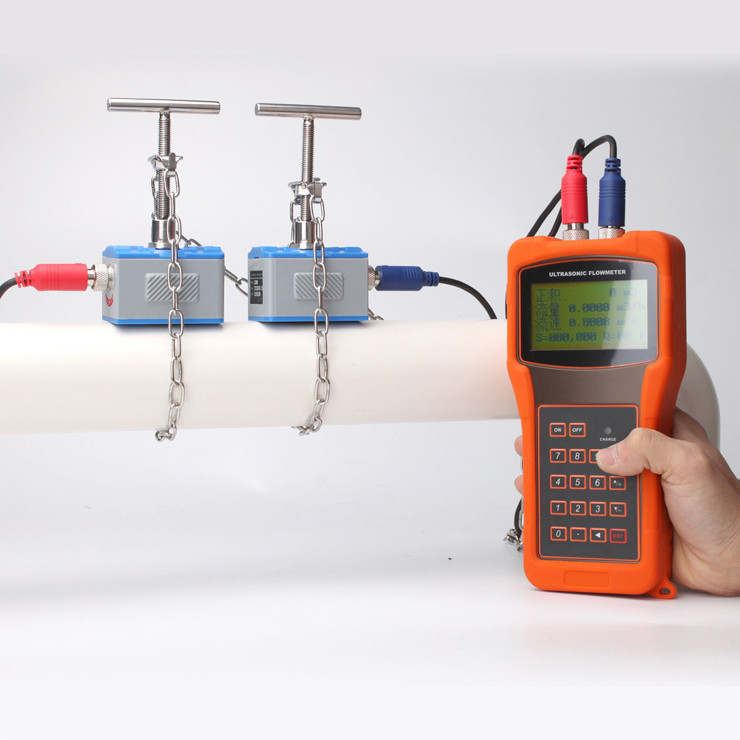

Handleheld DN15-DN6000 Clamp On Ultrasonic Flow Meter 0Handleheld DN15-DN6000 Clamp On Ultrasonic Flow Meter 1Handleheld DN15-DN6000 Clamp On Ultrasonic Flow Meter 2

Application
The ultrasonic flow meter is designed to measure the fluid velocity of liquid within closed conduit. The transducers are a non-contacting, clamp-on type, which will provide benefits of non- fouling operation and easy installation.

SPECIFICATION

Accuracy
1%
Power supply
DC8-36V or AC85-264V
Power consumption
1.5KW
Flow rate
0~±10m/s
Pipe inner diameter
15-6000mm
Output signal
4-20mA, OTC pulse, relay
Data interface
MODBUS protocol/RS485


Handleheld DN15-DN6000 Clamp On Ultrasonic Flow Meter 3



Integrated installation principle of ultrasonic level gauge
1. The distance from the emitting surface of the sensor to the lowest liquid level should be less than the measuring range of the selected instrument.
2. The distance from the emitting surface of the sensor to the highest liquid level should be greater than the blind zone of the selection and purchase of the instrument.
3. The emitting surface of the sensor should be parallel to the liquid surface.
4. The installation position of the sensor should avoid the fluctuation of the liquid level as much as possible, such as the water inlet and outlet.
5. If the pool or tank wall is not smooth, the instrument should keep the pool or tank wall above 0.3m.
6. If the distance from the transmitter surface of the sensor to the highest liquid level is less than the blind zone of the selected instrument, a telescopic tube should be installed, the diameter of which is greater than 120 mm, the length is 0.35m ≤ 0.50m, the vertical installation, the inner wall is smooth, and the inner hole of the tank should be Greater than the inner diameter of the extension tube. Or the pipe can be directly connected to the bottom of the tank, the pipe diameter is greater than 80 mm, and the hole at the bottom of the pipe can easily flow into liquid.



About us
Sichuan VACORDA Instruments Manufacturing Co., Ltd.is a professional production-manufacturing enterprise specialized in designing, producing and marketing of instruments and apparatuses. Our company has been established for 23 years since 1997 to grow up to be a team of high-quality, united, hard-working and truth-seeking characters. Solid foundation has been established.
