Anti-Corrosion Lining Inclinometer Magnetic For Corrosive Liquid

1 Piece/Pieces
Anti-Corrosion Lining Inclinometer Magnetic For Corrosive Liquid
Features Gallery Product Description Request A Quote
Product Name: Anti-Corrosion Lining Inclinometer Magnetic For Corrosive Liquid
Nominal Pressure:: PN2.5~PN40, PN40~PN320(x 0.1MPa)
Process Connection:: DN20~DN250/RF/14
Max Control Area: L-120mm
Density: >0.45g/cm3
Meterial: 304,316L,1Cr18Ni9Ti
High Light:

magnetic inclinometer


magnetic Corrosive Liquid inclinometer


Lining Inclinometer Magnetic

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Certification: ISO9001:2000/CE
Model Number: UHC-CJ
Payment & Shipping Terms
Packaging Details: wooden box or as your request
Supply Ability: 100 Piece/Pieces per Week
Product Description

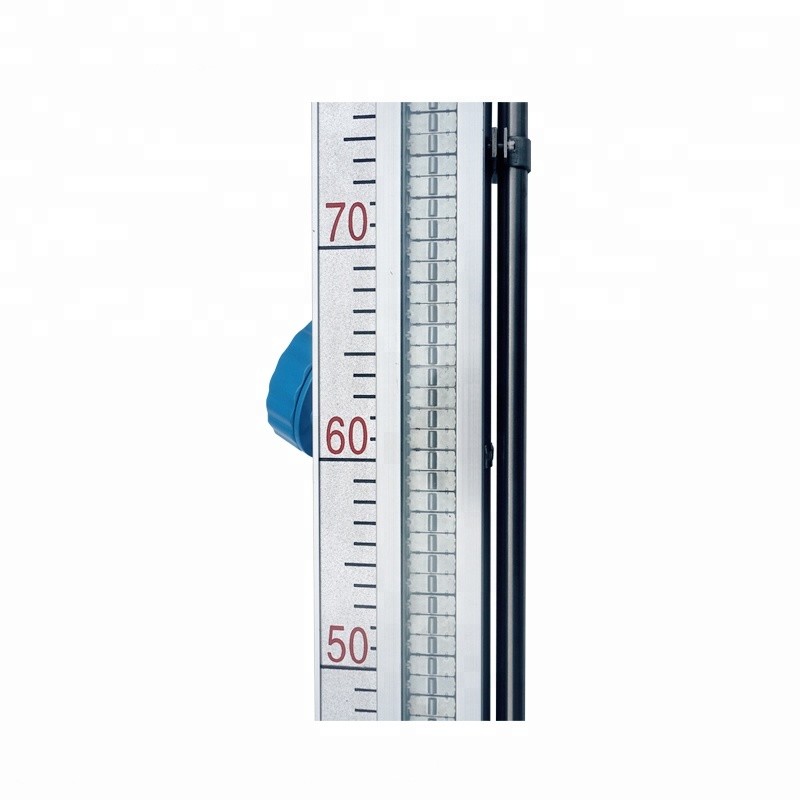

Anti-Corrosion Lining Inclinometer Magnetic For Corrosive Liquid
Anti-Corrosion Lining Inclinometer Magnetic For Corrosive Liquid 0
Product Parameters

(1) Center-center distance:150~6000mm
(2) Medium density:More than 0.45g/cm3
(3) Nominal pressure:PN63~PN320(x 0.1MPa)
(4) Material:SS304, 316L or customized
(5)Operating temperature:-190 ~ +425 °C
(6) Process connection:DN20/RF/14(or customized)
(7)Indicator types:
A: Al &ABS flap cylinderB: Al flap plate
C: PVC ABS flap cylinderD: PP&ABS flap cylinder
(8) Structure of top chamber:1.Welding cover
2.welding cover with M14*1.5 plug screw
4.flange with M14*1.5 plug screw
5.welding cover with DN20 flange
6.flange with DN20 flange
7.welding cover with air valve
8.flange with air valve
(9) Structure of bottom chamber:1.flange cover
2.flange with drain plug screw
3.flange with DN20 welding tube
4.with DN20 flange
5.with needle/ball valve
(10)Protection class:IP65
Application: Widely used in petroleum, chemical industry, oil field, pharmaceuticals industry, food, wine industry etc., suitable for level measurements under the environment of high/low temp., high pressure, strong corrosion, toxicity.
Note: Basic type, top mounted type, heat tracing type, LPG specialized type, anti-corrosive type, boiler steam specialized type etc, they have some differences in technical parameter. Different pressure has different flange specification.
Detailed Images

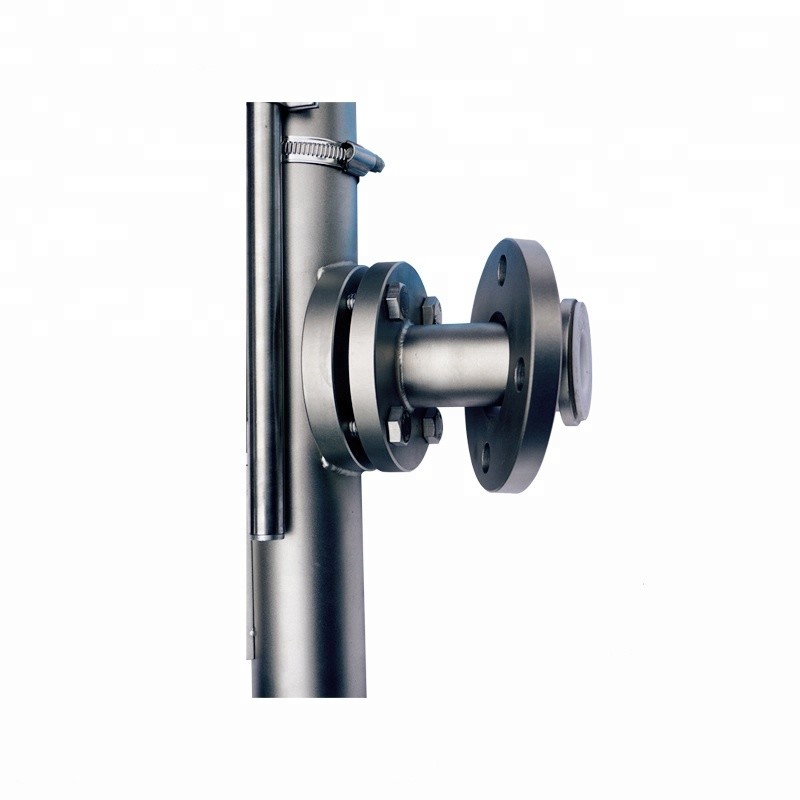

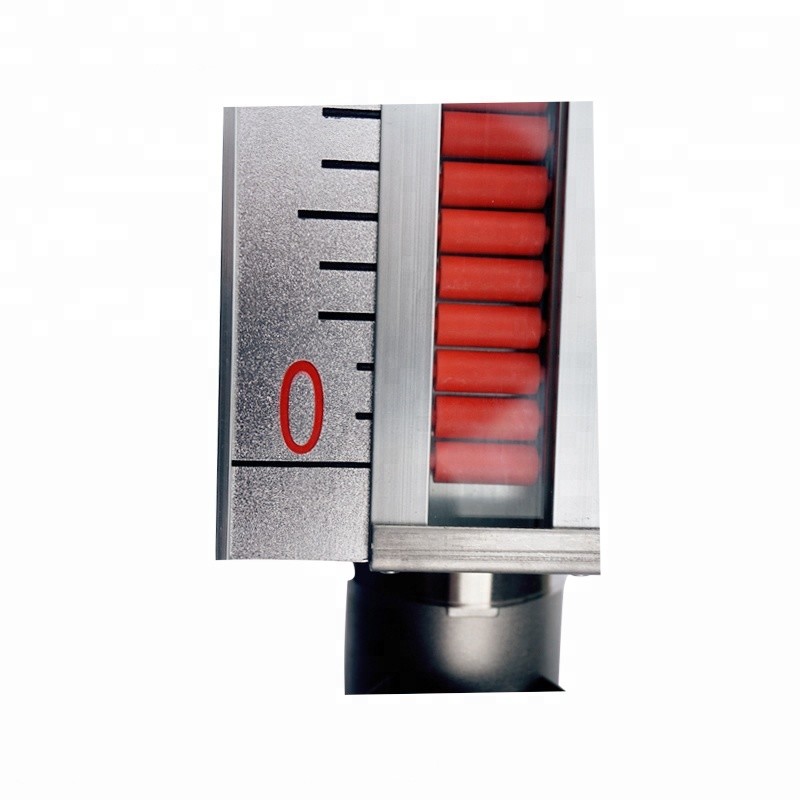

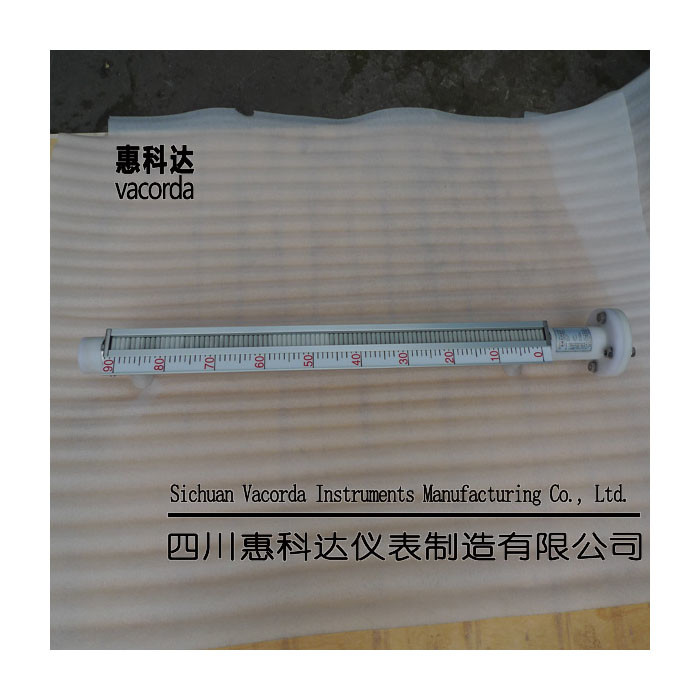

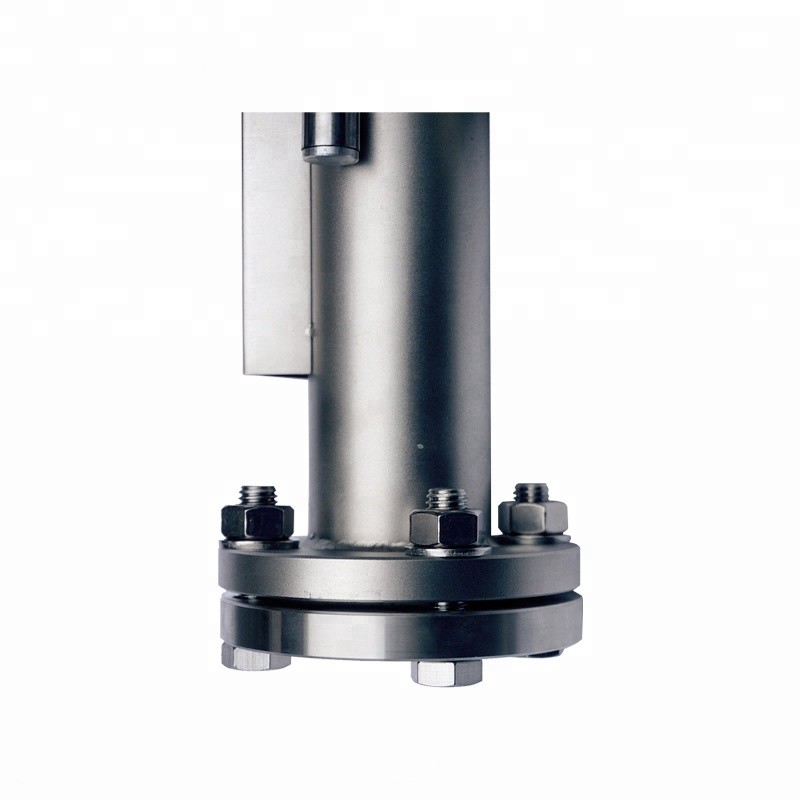

Anti-Corrosion Lining Inclinometer Magnetic For Corrosive Liquid 1Anti-Corrosion Lining Inclinometer Magnetic For Corrosive Liquid 2

Sichuan VACORDA Instruments Manufacturing Co., a professional production-manufacturing enterprise specialized in designing, producing and marketing of instruments and apparatuses. Our company has been established for 23 years since 1997 to grow up to be a team of high-quality, united, hard-working and truth-seeking characters. Solid foundation has been established.


In 2017, we moved into our new factory whhich occupies the area about 20000 square meter, the workshop of 6900 square meter, R&D department of 1180 square meter, integrated office building of 1260 square meter, and we have established the high accuracy flow calibration lines.


Our company has got the ISO9001: 2000 international quality system certification in 2005, Import and export trading right in 2012, total 12 patents till 2016, the title of “national high-tech enterprise” and CE certificate for three categories product in 2014. Our company has owned trade marks as “vacorda”. At the same time, our company is preparing for more certificates for foreign market, such as IECEX, API, UL and so on, to lay a foundation for further international market.


Workshop and Skilled Workers

RS485 4-20mA Automatic Magnetic Water Tank Level Meter With Factory Price

RS485 4-20mA Automatic Magnetic Water Tank Level Meter With Factory Price
Product characteristics of anti-corrosion magnetic level gauge

(1) Unique lining processThe joint between the buoy and the flange adopts a unique lining process, which effectively prevents accidental corrosion damage caused by media leakage caused by extrusion damage;
(2) Panel widening designThe widened design of the display panel greatly increases the viewing distance and viewing angle. The scale and numbers of the anticorrosive magnetic flip liquid level gauge are more eye-catching and clear, and the appearance is beautiful and atmospheric;
(3) A variety of protection levels are available, all exceeding national standardsThe unique display panel end cover design and glass sealant technology make the protection level of the whole machine reach up to IP66/IP67. Currently, the protection level of anti-corrosion magnetic flip liquid level gauge is IP65, IP66/IP67 optional, exceeding the national standard IP54 Claim
(4) Double explosion-proof certificationThe magnetic switch and reed switch remote transmission transmitter matched with the anticorrosive magnetic flap liquid level gauge have now passed the explosion-proof and intrinsically safe double explosion-proof certification;
(5) The minimum density of measurable liquid 0.5g/cm³

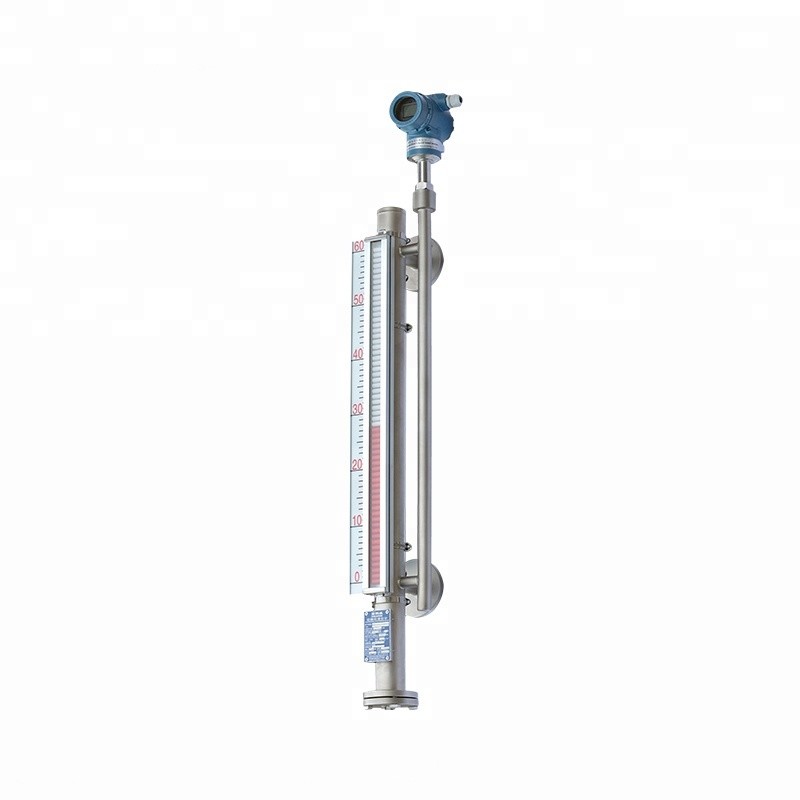

Anti-Corrosion Lining Inclinometer Magnetic For Corrosive Liquid 5
