Product Name: Magnetrol Level Indicator For High Temperature Pressure Liquid Level
Nominal Pressure:: PN2.5~PN40, PN40~PN320(x 0.1MPa)
Process Connection:: DN20~DN250/RF/14
Max Control Area: L-120mm
Density: >0.45g/cm3
Meterial: 304,316L,1Cr18Ni9Ti
Product Description

High Temperature Pressure PN40 Magnetic Liquid Level Indicator


Application of high temperature magnetic flap liquid level gauge

High-temperature magnetic flap liquid level gauge adopts a unique heat dissipation method to effectively control the working temperature of the instrument, avoid the phenomenon of demagnetization of magnetic components under high temperature conditions, and effectively ensure the reliable operation of the instrument. The process temperature of the high-temperature magnetic flap liquid level gauge is as high as 350℃, which is at the leading level in the same industry in China. The excellent performance makes the high-temperature magnetic flap liquid level gauge have a wider range of application. In addition to the application of ordinary magnetic flap liquid level gauge, it is especially used in high temperature industries such as electricity, heating, and gas supply. Liquid level measurement occasions.

Because of the high temperature of liquid sulfur, the measurement of liquid sulfur level is a typical application of high temperature magnetic flap level gauge. When the temperature is lower than 100 ℃, liquid sulfur will become solid crystals. In order to prevent the solidification phenomenon, it is necessary to ensure that the liquid sulfur is at a high temperature. At this time, it is necessary to use a high-temperature magnetic flap level gauge for measurement. The following methods are generally adopted:

First, add a high-temperature steam jacket on the outside of the instrument to heat the medium through high-temperature steam;

Secondly, in order to ensure that the medium is always in a liquefied state, a vacuum jacket can be added outside the high-temperature jacket, so that the thermal energy of the high-temperature steam is not attenuated, and the medium can be kept constant within the liquefaction temperature range.

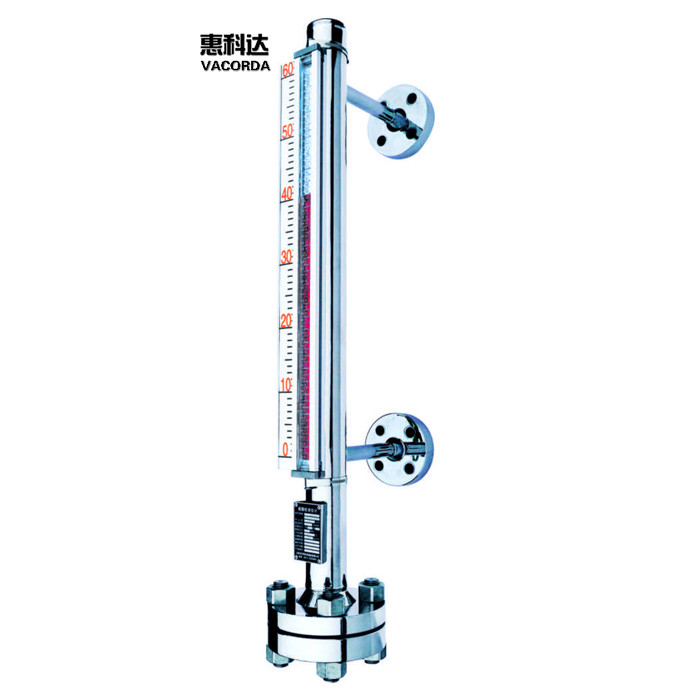

High Temperature Pressure PN40 Magnetic Liquid Level Indicator 0

Product Parameters

(1) Center-center distance: 150~6000mm
(2) Medium density: More than 0.45g/cm3
(3) Nominal pressure: PN63~PN320(x 0.1MPa)
(4) Material: SS304, 316L or customized
(5)Operating temperature: -190 ~ +425 °C
(6) Process connection: DN20/RF/14(or customized)
(7)Indicator types:
A: Al &ABS flap cylinder B: Al flap plate
C: PVC ABS flap cylinder D: PP&ABS flap cylinder
(8) Structure of top chamber: 1.Welding cover
2.welding cover with M14*1.5 plug screw
4.flange with M14*1.5 plug screw
5.welding cover with DN20 flange
6.flange with DN20 flange
7.welding cover with air valve
8.flange with air valve
(9) Structure of bottom chamber: 1.flange cover
2.flange with drain plug screw
3.flange with DN20 welding tube
4.with DN20 flange
5.with needle/ball valve
(10)Protection class: IP65
Application: Widely used in petroleum, chemical industry, oil field, pharmaceuticals industry, food, wine industry etc., suitable for level measurements under the environment of high/low temp., high pressure, strong corrosion, toxicity.
Note: Basic type, top mounted type, heat tracing type, LPG specialized type, anti-corrosive type, boiler steam specialized type etc, they have some differences in technical parameter. Different pressure has different flange specification.
Detailed Images

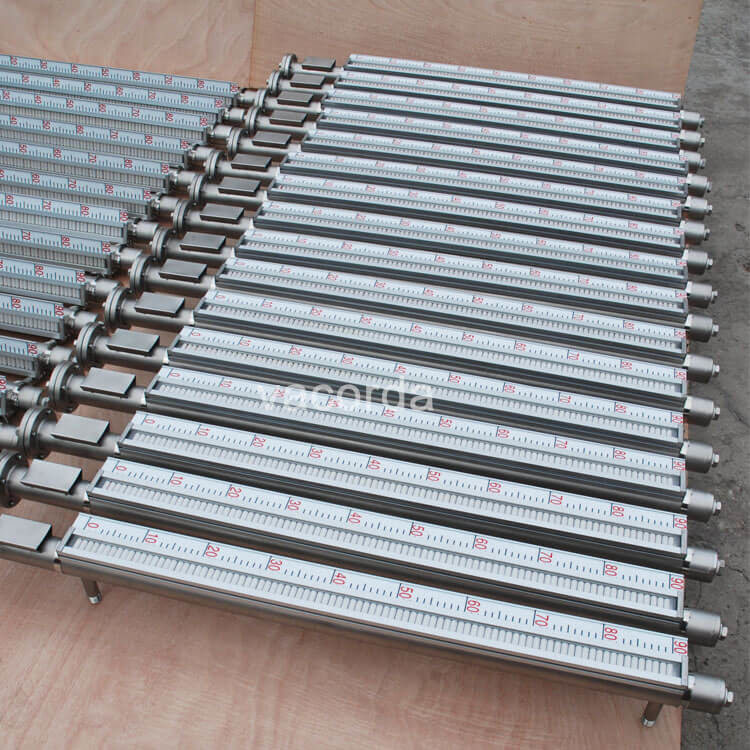

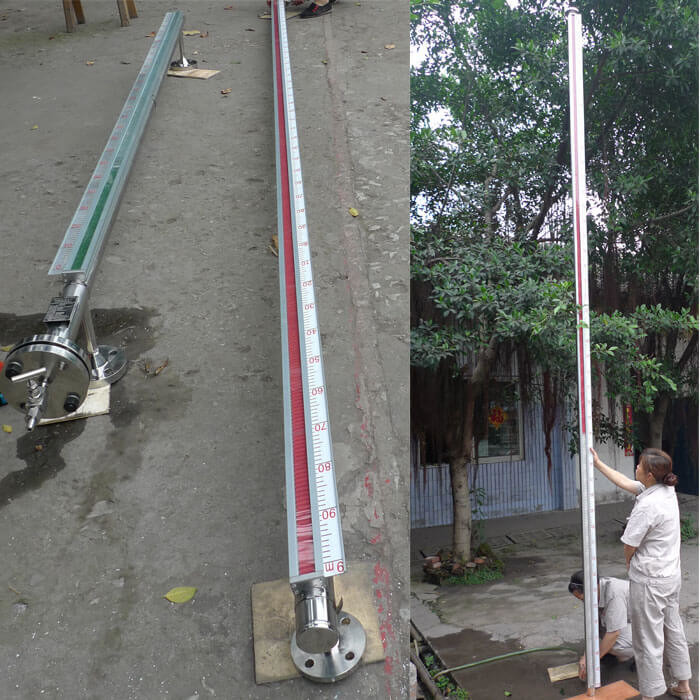

High Temperature Pressure PN40 Magnetic Liquid Level Indicator 1High Temperature Pressure PN40 Magnetic Liquid Level Indicator 2
