Product Name: Liquid Tank DN20 Magnetic Float Level Gauge
Nominal Pressure:: PN2.5~PN40, PN40~PN320(x 0.1MPa)
Process Connection:: DN20~DN250/RF/14
Max Control Area: L-120mm
Density: >0.45g/cm3
Meterial: 304,316L,1Cr18Ni9Ti
Product Description

Liquid Tank DN20 Magnetic Float Level Gauge

Liquid Tank DN20 Magnetic Float Level Gauge 0

Product Parameters

(1) Center-center distance: 150~6000mm
(2) Medium density: More than 0.45g/cm3
(3) Nominal pressure: PN63~PN320(x 0.1MPa)
(4) Material: SS304, 316L or customized
(5)Operating temperature: -190 ~ +425 °C
(6) Process connection: DN20/RF/14(or customized)
(7)Indicator types:
A: Al &ABS flap cylinder B: Al flap plate
C: PVC ABS flap cylinder D: PP&ABS flap cylinder
(8) Structure of top chamber: 1.Welding cover
2.welding cover with M14*1.5 plug screw
4.flange with M14*1.5 plug screw
5.welding cover with DN20 flange
6.flange with DN20 flange
7.welding cover with air valve
8.flange with air valve
(9) Structure of bottom chamber: 1.flange cover
2.flange with drain plug screw
3.flange with DN20 welding tube
4.with DN20 flange
5.with needle/ball valve
(10)Protection class: IP65
Application: Widely used in petroleum, chemical industry, oil field, pharmaceuticals industry, food, wine industry etc., suitable for level measurements under the environment of high/low temp., high pressure, strong corrosion, toxicity.
Note: Basic type, top mounted type, heat tracing type, LPG specialized type, anti-corrosive type, boiler steam specialized type etc, they have some differences in technical parameter. Different pressure has different flange specification.
Detailed Images

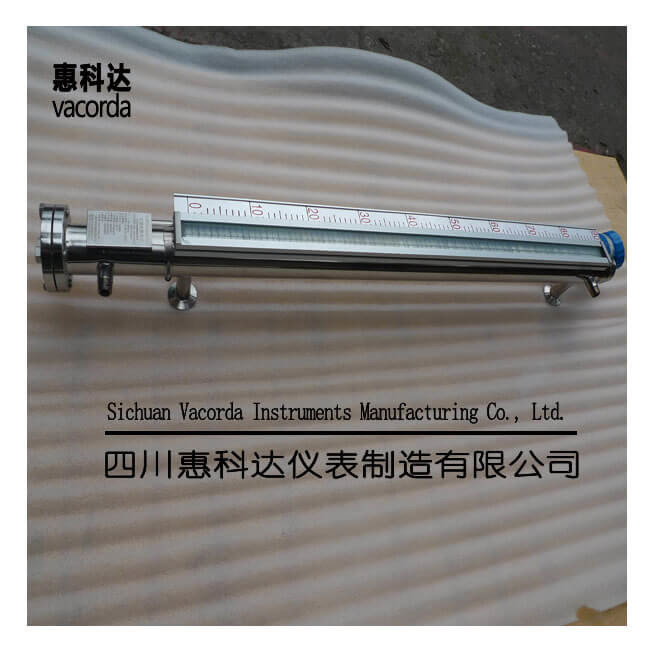

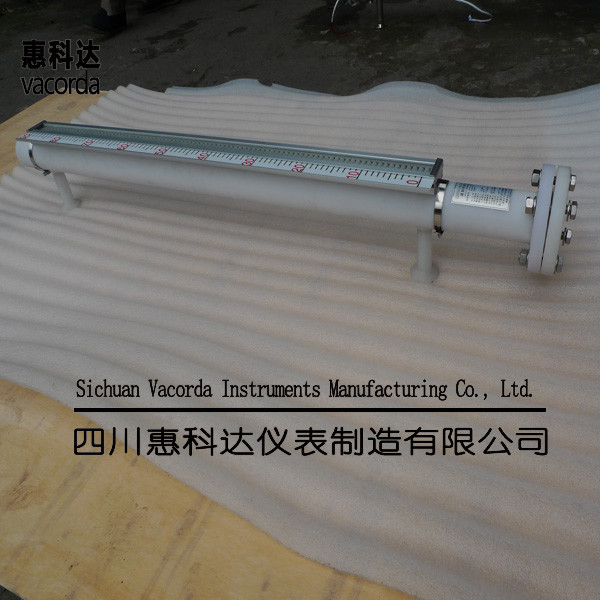

Liquid Tank DN20 Magnetic Float Level Gauge 1Liquid Tank DN20 Magnetic Float Level Gauge 2

Sichuan VACORDA Instruments Manufacturing Co., a professional production-manufacturing enterprise specialized in designing, producing and marketing of instruments and apparatuses. Our company has been established for 23 years since 1997 to grow up to be a team of high-quality, united, hard-working and truth-seeking characters. Solid foundation has been established.


In 2017, we moved into our new factory whhich occupies the area about 20000 square meter, the workshop of 6900 square meter, R&D department of 1180 square meter, integrated office building of 1260 square meter, and we have established the high accuracy flow calibration lines.


Our company has got the ISO9001: 2000 international quality system certification in 2005, Import and export trading right in 2012, total 12 patents till 2016, the title of “national high-tech enterprise” and CE certificate for three categories product in 2014. Our company has owned trade marks as “vacorda”. At the same time, our company is preparing for more certificates for foreign market, such as IECEX, API, UL and so on, to lay a foundation for further international market.


Workshop and Skilled Workers

RS485 4-20mA Automatic Magnetic Water Tank Level Meter With Factory Price

RS485 4-20mA Automatic Magnetic Water Tank Level Meter With Factory Price

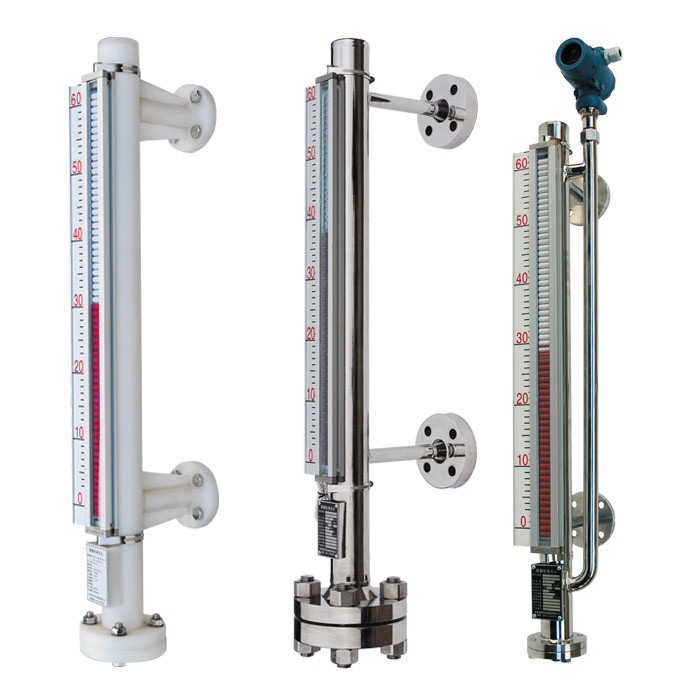

1. Specific application of side-mounted magnetic flap level gauge

Using the side-mounted magnetic flap level gauge, also known as side-mounted magnetic flap level gauge. In terms of applications, side-mounting is arguably the most commonly used installation method in magnetic flap level gauges. It is mainly used for measuring crude oil in tank trucks, measuring liquid ammonia in chemical storage tanks, measuring wastewater in sewage treatment plants, Glucose syrup is measured in pharmaceutical plants, stock solution in cosmetics processing plants, etc.


2. Specific application of top-mounted magnetic flap liquid level gauge
The magnetic level gauge installed on the top of the container is generally called the top-mounted magnetic level gauge. It is widely used in oil tanks, underground storage tanks, tanks and other containers, as well as in food, chemical, chemical fertilizer and other industries. It can be used for the measurement of liquid level in high temperature, high pressure, strong corrosion and other harsh working conditions. For the application of the top-mounted magnetic flap liquid level gauge, also refer to the "strong measurement of the magnetic flap liquid level gauge for sealing and anti-corrosion "The performance is well received by Tangshan Guofeng Steel" (internal chain).

3. The specific application of anti-corrosion magnetic level gauge
Magnetic level gauge for corrosive liquid level measurement is the anti-corrosion type magnetic level gauge. Because of its anti-corrosion effect, it is called anti-corrosion magnetic vane level gauge. Due to the lining process, anti-corrosion magnetic vane level gauge is also often called lining magnetic vane level gauge. The lining type magnetic flap liquid level gauge is a corrosion-resistant magnetic flap liquid level gauge. Its buoy and flange joint adopts a unique lining process to effectively prevent media leakage caused by squeeze damage. Accidental corrosion damage, mostly used to measure highly corrosive liquids.

4. The specific application of remote transmission type magnetic flap liquid level gauge
The remote transmission type magnetic flap liquid level gauge is the general term when the magnetic flap liquid level gauge is used in conjunction with the reed switch remote transmission transmitter. Because the remote transmission transmitter is added, the liquid level condition monitored by the instrument can be It is transmitted to the observation room in real time, which is convenient for the staff to monitor the liquid level in real time, which is very simple and efficient, and saves manpower. In addition to being suitable for normal temperature environment, the remote transmission type magnetic flap liquid level gauge is also suitable for various environments such as low temperature, high temperature, vacuum and high pressure. It is an ideal liquid level measuring instrument in the petroleum, chemical and other industrial fields.

5. Specific application of anti-freezing magnetic flap level gauge
As a widely used liquid level measuring instrument, the magnetic flap liquid level gauge room can be used no matter whether it is in the south or north, whether indoor or outdoor. However, in northern my country, especially outdoors, due to the low temperature in winter, the liquid is easy to freeze, and the measurement of the magnetic flap level gauge will inevitably be affected. At this time, it is necessary to perform heat preservation treatment on the magnetic flap liquid level gauge, that is, the anti-freezing type magnetic flap liquid level gauge is used. In general, there are two main methods for thermal insulation of the magnetic level gauge: one is vacuum jacket insulation, and the other is electrical heating and electrical heat tracing.

Liquid Tank DN20 Magnetic Float Level Gauge 5
