Side Mounted High Pressure PN2.5 Magnetic Liquid Level Gauge

1 Piece/Pieces
Side Mounted High Pressure PN2.5 Magnetic Liquid Level Gauge
Features Gallery Product Description Request A Quote
Product Name: Side Mounted High Pressure Magnetic Liquid Level Gauge For Boiler Liquid
Nominal Pressure:: PN2.5~PN40, PN40~PN320(x 0.1MPa)
Process Connection:: DN20~DN250/RF/14
Max Control Area: L-120mm
Density: >0.45g/cm3
Meterial: 304,316L,1Cr18Ni9Ti
High Light:

PN2.5 magnetic float level gauge


magnetic fuel tank level indicator


PN2.5 Magnetic Liquid Level Gauge

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Certification: ISO9001:2000/CE
Model Number: UHC-CJ
Payment & Shipping Terms
Packaging Details: wooden box or as your request
Supply Ability: 100 Piece/Pieces per Week
Product Description

Side Mounted High Pressure Magnetic Liquid Level Gauge For Boiler Liquid

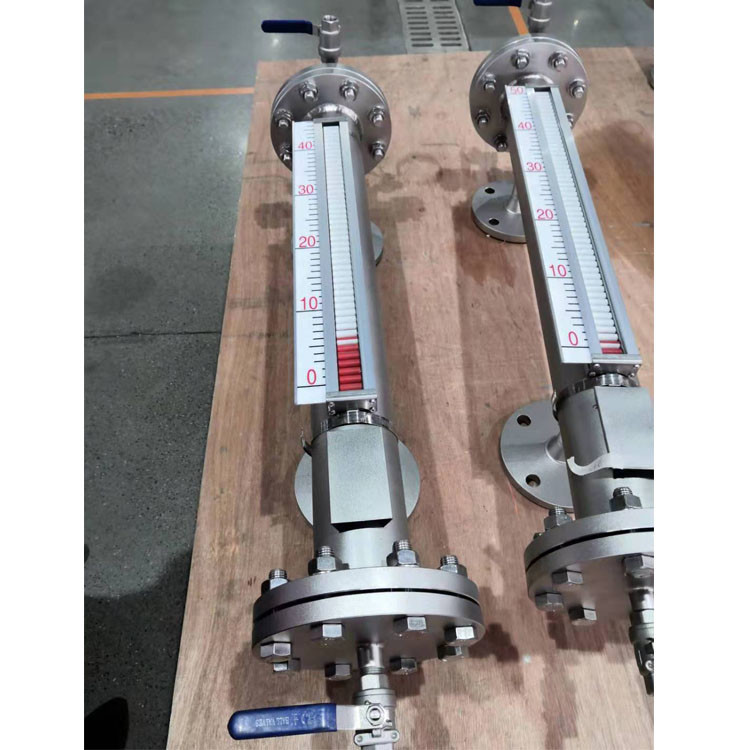

Side Mounted High Pressure PN2.5 Magnetic Liquid Level Gauge 0


Installation and maintenance

1. The level gauge must be installed vertically to ensure that the float assembly can move up and down in the main tube.
2. There is no permissible magnet near the main body of the liquid level gauge, otherwise it will directly affect the work of the liquid level gauge.
3. After the liquid level gauge is installed, it needs to be calibrated with magnetic steel to guide the turning column once so that the display below the zero position is red and the display above the zero position is white.
4. When the liquid level gauge is put into operation, the valve of the lower liquid introduction pipe should be opened first to allow the liquid medium to enter the main pipe smoothly, so as to avoid the rapid rise of the liquid medium with the floating ball assembly, which may cause the failure of the column turning and disorderly turning. If this phenomenon occurs, the magnetic steel can be used to recalibrate after the liquid level is stable.
5. In order not to damage the float assembly during transportation, the float assembly is taken out of the main tube of the level gauge before leaving the factory. After the level gauge is installed, the bottom sewage flange is opened and the float assembly is reinstalled. Into the main body tube, pay attention to the heavy end of the float assembly upwards, can not be flipped. If the float assembly has been installed in the main tube at the factory, in order to ensure that it has been transported
In the process, the floating ball assembly is not damaged. We use a soft card to fix the floating ball assembly in the main tube. As long as the soft card is pulled out during installation.
6. According to the condition of the medium, the blowdown flange can be opened regularly to clean the main pipe sediment.
Need to understand and provide parameters
1. Installation method: Side-mounted (as shown in Figure 1) Top-mounted (as shown in Figure 2)
2. Measuring medium: such as water, oil, other chemical solvents and liquid raw materials
3. Material requirements: such as 304 stainless steel, 316L stainless steel, stainless steel lined with PTFE, PP, PVC (if the user is unclear, after providing relevant parameters, our technicians can help to choose)
4. Measuring the temperature of the medium: the difference in temperature determines the different choices of the material type of the float and the display panel. When the temperature is too low in winter, it is necessary to install a potential heat or a steam jacket for heat preservation. The medium temperature that can be measured by the liquid level gauge is -20℃~500℃.
5. Working pressure: The size of the pressure determines the thickness of the main conduit and the different processing techniques such as welding. The highest pressure of the medium that can be measured by the level gauge can reach 10MPa.
6. Connection method: the top-mounted magnetic flap liquid level gauge series products generally use DN80 or DN100 connection flange, and the side-mounted magnetic flap liquid level gauge has three connection methods: flange connection (such as DN25), clamp connection, threaded connection.
7. Measurement range: 1. The side-mounted type is connected to the container to be measured by the two upper and lower pipes, so the measurement range is the distance between the centers of the two pipes, referred to as the center distance.

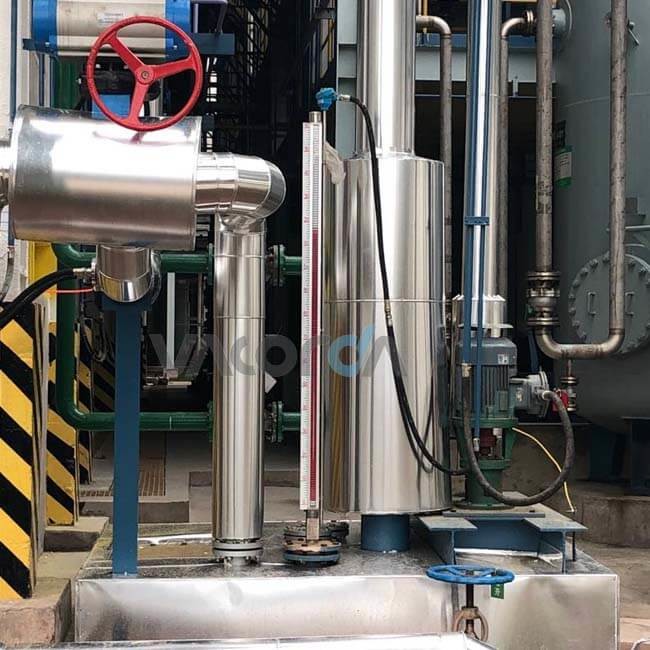

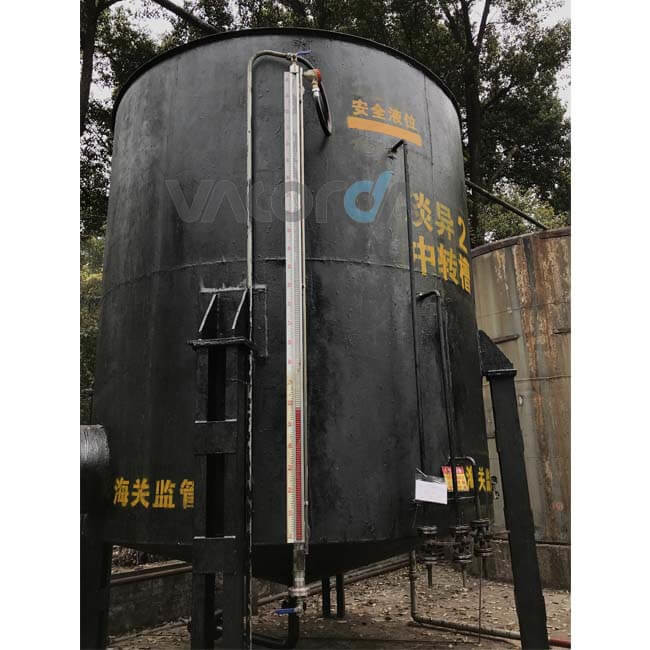

Product examples

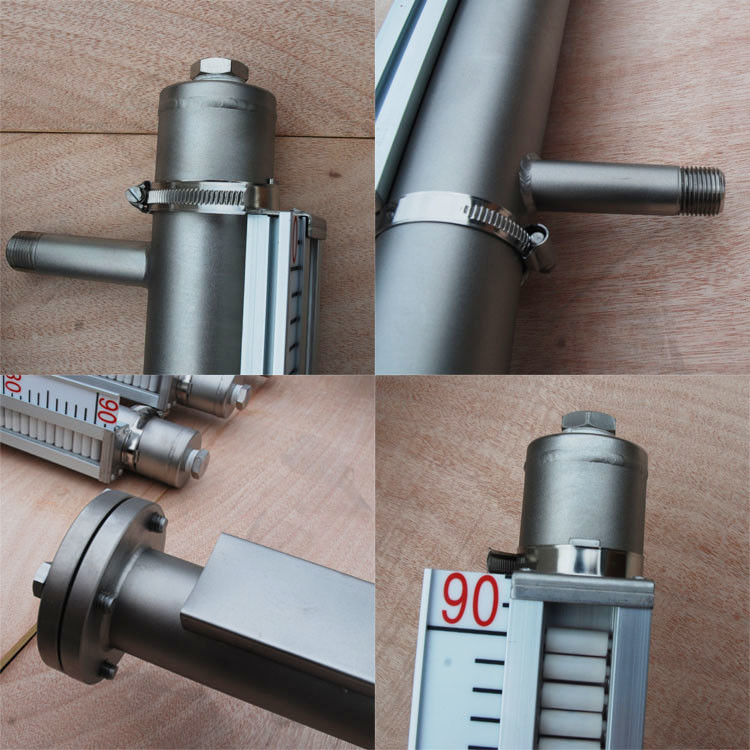

Side Mounted High Pressure PN2.5 Magnetic Liquid Level Gauge 1
