Side Mounted Frost Protection Stainless Steel Magnetic Water Level Indicator

1 Piece/Pieces
MOQ
Negotiable
Price
Side Mounted Frost Protection Stainless Steel Magnetic Water Level Indicator
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Side Mounted Frost Protection Stainless Steel Magnetic Water Level Indicator
Pressure: From Vacuum To 42Mpa
Protection Level: IP65
Operating Temperature: -190~+425°C
Density: >0.45g/cm3
Meterial: 304,316L,1Cr18Ni9Ti,0Cr18Ni9,00Cr17Ni14Mo2,Titanium
High Light:

Side Mounted magnetic liquid level gauge

,

magnetic fuel tank level indicator

,

Side Mounted Magnetic Water Level Indicator

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Certification: ISO9001:2000/CE
Model Number: UHC-CJ
Payment & Shipping Terms
Packaging Details: wooden box or as your request
Supply Ability: 100 Piece/Pieces per Week
Product Description

Side Mounted Frost Protection Stainless Steel Magnetic Water Level Indicator



Magnetic level gauge electrical signal is implemented by a combination of remote and basic level remote device. Level remote device by the UR-type resistance sensors and UB type R / I converter modules, the transmitter sensor in the form of bundled fixed to the outside of the main conduit UHZ type level gauge magnetic flap so that it is level count the same magnetic coupling system. When the magnetic float moves up and down with the liquid level, the level corresponding to the position of the reed that is the role of the magnetic field inside the float pull resistor chain resistance to change by switching module will change the resistance signal into a standard two-wire 4 ~ 20mADC output signal, the signal can be easily and III-type electric instrument, display instrument supporting the use, can also be indicative of the light beam, the digital display regulator supporting the use of alarm, so as to display, control, regulation and alarm purposes.



Product Parameters

(1) Center-center distance:

150~6000mm

(2) Medium density:

More than 0.45g/cm3

(3) Nominal pressure:

PN2.5~PN40, PN40~PN320(x 0.1MPa)

(4) Material:

SS304, 316L, PP, PTFE, or customized

(5)Operating temperature:

-190 ~ +425 °C

(6) Process connection:

DN20~DN80/RF/14,DN80~DN250/RF/14

(7)Indicator types:

A: Al &ABS flap cylinder

B: Al flap plate

C: PVC ABS flap cylinder

D: PP&ABS flap cylinder

E: AL &LED

F: PP&LED

(10)Protection class:

IP65



Side Mounted Frost Protection Stainless Steel Magnetic Water Level Indicator 0

Side Mounted Frost Protection Stainless Steel Magnetic Water Level Indicator 1



Workshop and Procesing

Side Mounted Frost Protection Stainless Steel Magnetic Water Level Indicator 2

Side Mounted Frost Protection Stainless Steel Magnetic Water Level Indicator 3

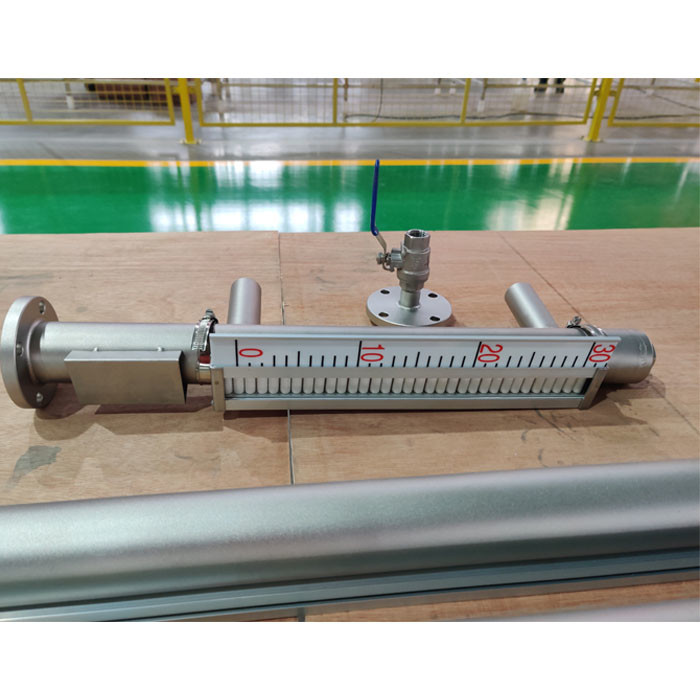

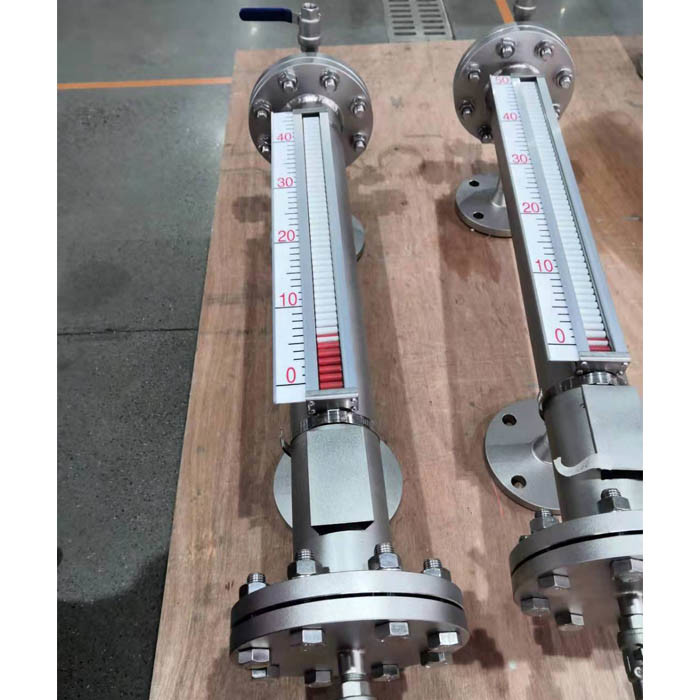

The appearance of the magnetic flap level gauge. The magnetic flap level gauge can achieve high sealing, prevent leakage, and can perform safe and reliable liquid level measurement under high temperature, high pressure, high viscosity, and strong corrosion conditions. The whole process has no blind areas, conspicuous display, intuitive readings, wide measurement range, equipped with a liquid level alarm control switch, which realizes the upper and lower limit alarm control of the liquid level or boundary position, and is equipped with a liquid level transmitter, and the liquid level boundary signal can be converted into Two-wire 4-20 mADC standard signal to realize remote detection, display, recording and control.

What is the working principle of the magnetic flap level gauge? An instrument that uses a floating sub-magnet to drive the flip of a two-color sheet to indicate the liquid level. The magnetic float in the main body of the magnetic flap level gauge moves up and down with the rise and fall of the liquid level, and at the same time drives the two-color sheet in the display outside the main body to turn over. When there is a liquid level, it turns red, and when there is no liquid level, it turns white. The dividing line between the red and white* bands represents the horizontal height. There is a striking scale ruler on the left side of the indicator. In this way, the liquid level display becomes clearer.
