High Temperature Resistant Stable Float Level Control Switch PN2.5-PN160

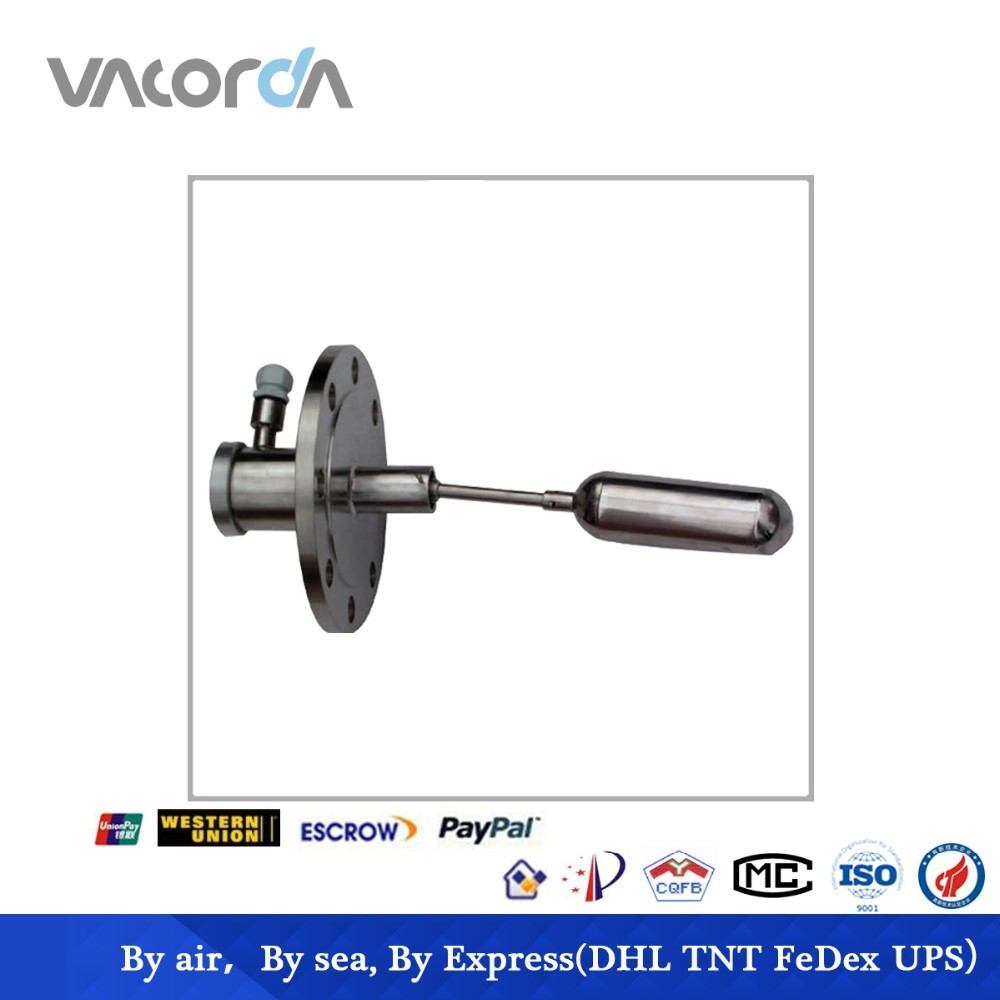

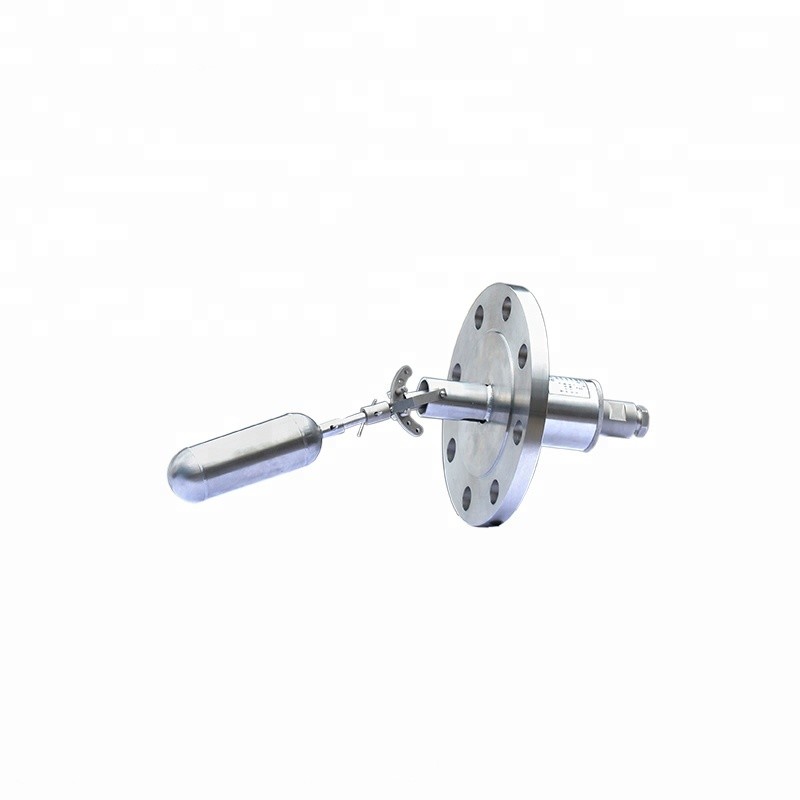

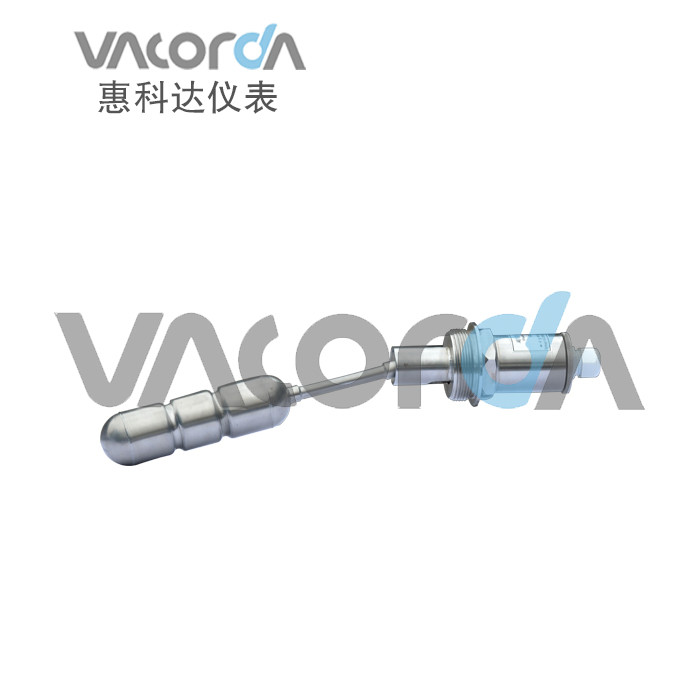

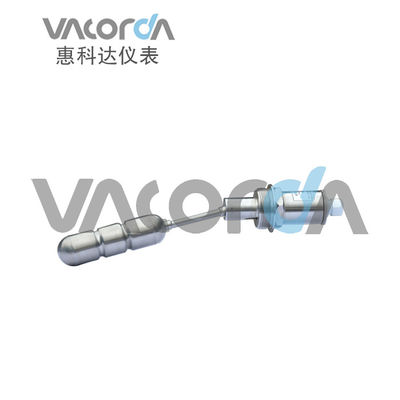

UHK magnetic float level swith and pontoon level switch consist of reed and magnetic float ball, which is based on the floating principle that utilizes magnetic float ball to make the relevant reed close or open according to the height changng of the liquid level, thus controlling and measuring the liquid level.
Features:
1. No external power supply, passive output contact ;
2. Long life span, stable and reliable operation, easy installation, almost no maintenance
3. Independent of mediums’ physical and chemical status.
4. Appliable for all kinds of bad medium environment with density ≥0.5g/cm³.
5. Available for interface detection of mediums with two different densities.
6. Wide application range. Pressure 0~PN160 (max. up to PN320), temperature -40~+150 ° c;
7. At most 8 detecting points, delivering signal independently.
8. Anti-explosion design.
9.Customization.
Application:
UHK magnetic float level switch and pontoon level switch are made of different materials, and can be used in almost all strong and weak corrosion-resistant mediums and none corrosive mediums.
Technical parameters:
|
Installation type |
DN50/RF/PL(HG/T20592-2009; >PN100,HG/T 20615-2009,DN≥65) |
|
Medium Density |
≥0.5g/cm3 |
|
|
PN≤6.3MPa, float diameter=45mm; |
|
Swith condition&Qty |
transform type with one switch |
|
Installation depth L |
80~300mm |
|
Max voltage |
250VAC, 230VAC |
|
Max current |
0.6A(SPDT); 2A(SPST) |
|
Max volume |
0.6A:60W(reed pipe type); 2A:200W(jiggle switch) |
|
Working temperature scope |
|
|
High temperature |
≤ 150°C |
|
Pressure |
PN2.5~PN160 (Max pressure: PN320) |
|
Connection |
M20×1.5 female thread |
|
Installation angle |
≤ ±10° |
|
IP grade |
IP65 |
|
Anti-explosion grade |
Exia II CT6Ga or Exd II CT6Gb |
The magnetic suspension level gauge and the container to be measured form a communicating device, so that the liquid level between the container to be measured and the measuring tube body is equal. When the float in the measuring tube of the liquid level gauge changes with the measured liquid level, the magnetic body in the float interacts with the magnetic body in the color code displayed on the display bar and reverses, so that red means there is liquid and white means no The purpose of accurately displaying the liquid level on the spot.
