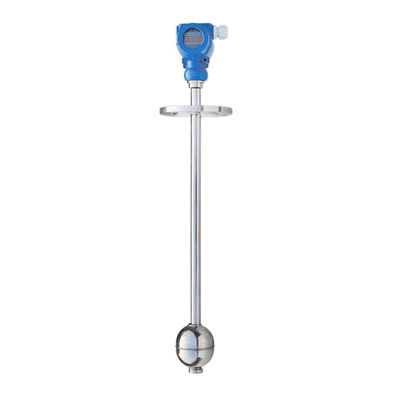

High Performance Float Level Switch Controller With 4-20mA Output

1 Piece/Pieces
MOQ
Negotiable
Price
High Performance Float Level Switch Controller With 4-20mA Output
Features Gallery Product Description Request A Quote
Features
Specifications
Measuring Range: 200~6000mm(>6M Customize)
Medium Density: >=0.5g/cm3
Float Diameter: PN≤6.3MPa, Float Diameter=45mm; PN>6.3MPa, Float Diameter=65mm
Guided Rod Size: 20mm Or 14mm
Working Temperature: ≤150°C
Connection: M20*1.5 Female Thread
Working Power Supply: 16~30VDC
Installation Angle: ≤±10°
Explosion-proof Grade: Exia II CT5Ga Exd II BT6Gb
IP Grade: IP65
Port: Shanghai/shenzhen
High Light:

float switch fluid level controller

,

water level controller

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Certification: ISO9001/CE/TUV/From-E
Model Number: UHC
Payment & Shipping Terms
Packaging Details: Wooden box
Supply Ability: 100 Piece/Pieces per Week
Product Description

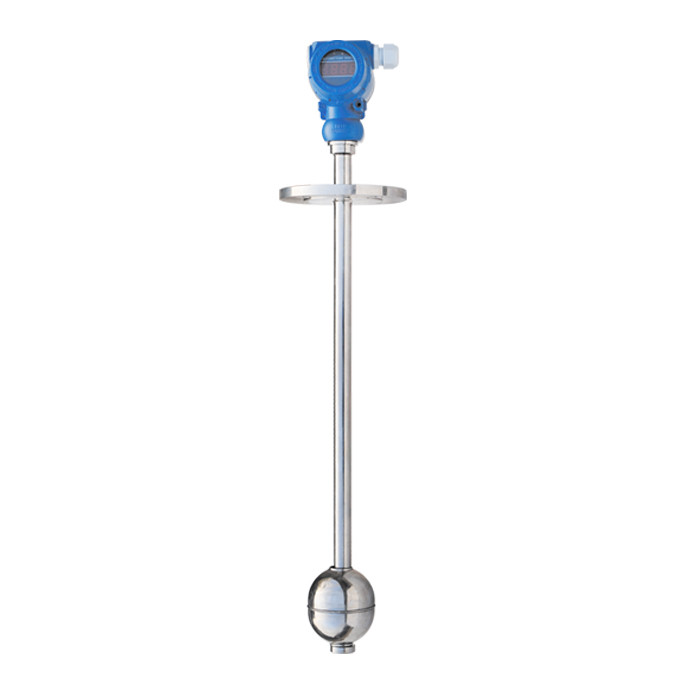

High Performance Float Level Switch Controller With 4-20mA Output

High Performance Float Level Switch Controller With 4-20mA Output 0


Product Description

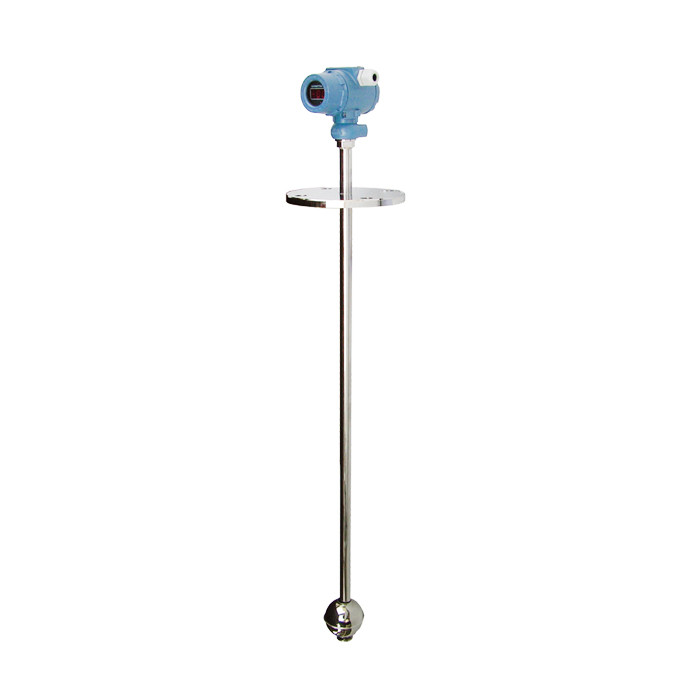

UHK magnetic floating ball and float level switch are made up of reed pipe and magnetic float. It is based on the buoyancy principle, using the floating ball with magnetic components to drive the corresponding position of the reed tube to close or disconnect, so as to realize the detection and control of the high and low position of the liquid level.

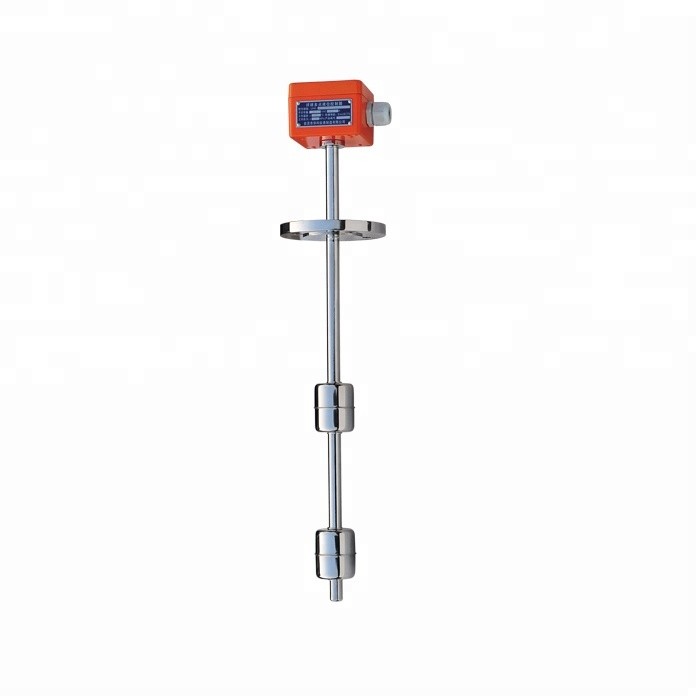

UHK magnetic float and float liquid level switch are equipped with 8 switches for 8 point detection. When the magnetic float ball level switch works, it has no direct contact with the measured medium, no mechanical wear and tear on the contacts, and it can work without external power supply.

High Performance Float Level Switch Controller With 4-20mA Output 1

High Performance Float Level Switch Controller With 4-20mA Output 2

Features

1, long life span, stable and reliable operation, easy installation, almost no maintenance

2, none influence of measured medium in physical and chemical state. Eg: medium electrical conductivity,

 dielectric constants, foam, pressure, temperature, evaporation, boiling, bubbling effect etc, .

3, choose appropriate material can be used in a variety of bad media environment with densities ≥ 0.5G/CC ;

4,-interface measurement with two media of different density control;

5,wide range of application. Pressures from vacuum to PN160 (special up to PN320), temperature -40~+150 ° c;

6,design, explosion-proof, suitable for explosive environments;

7,UHKG controller can be used to control the upper and lower liquid level.



Operation:

Two control method of one magnetic float level gauge:

1,the upper limit—users select the normally open contact connection: the machine starts when the liquid level reaches the controlled upper limit and the node closes.

When the liquid level reaches the controlled lower limit and the node opens, the machine stops. (eg. When the liquid flows out the  pump);

2,the lower limit—users select the normally closed contact connection: the machines starts when the liquid level reaches the controlled lower limit and the node closes.

When the liquid level reaches the controlled upper limit and the node closes, the machine stops. (eg. When the liquid flows in the pump);



Technical Data:

Max insert depth

L=6m(>6m customize)

Max control scope

L-120mm

Min control scope

50mm(<50mm customize)

Medium density

>0.5g/cm3

Working pressure

PN2.5~ PN160(Max pressure PN320)

Working temperature

-40~80 °C, -40~120 °C, -40~150 °C (250°C customize )

Float diameter

D28~D120(depending on pressure and density)





Installation type

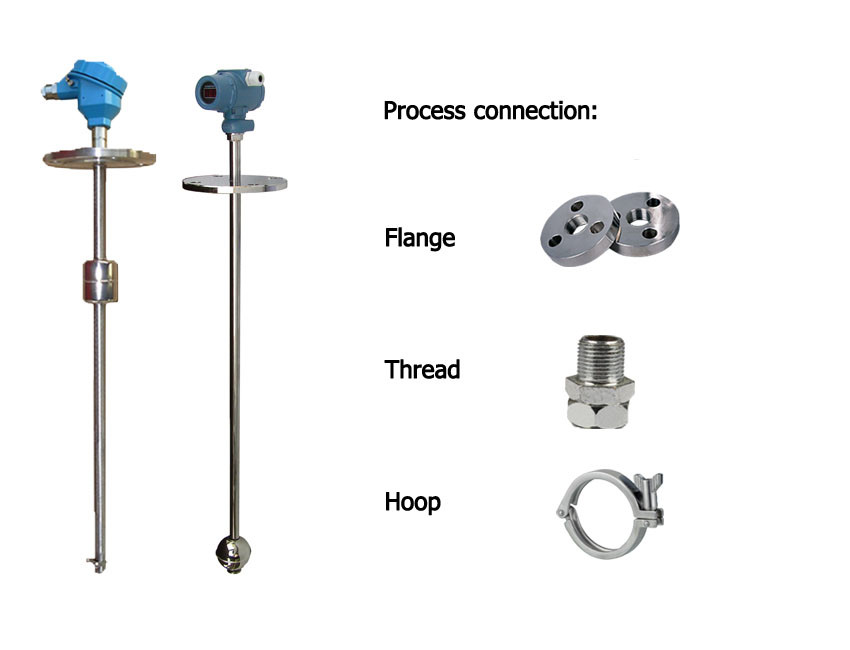

Flange: DN40~DN150

Flange standard: HG/T20592~2009

(pressure>PN25, Flange>DN125)

G2'' thread

Other method (consulting)

Maximum switch frequency

<1×105

Inaccuracy

±8±2mm

Working power supply

220VAC/380VAC

Max voltage of switch

<250VAC

Max current of switch

5A

Installation angle

< ±25°

Wiring box

M20×1.5 female thread

IP grade

IP65

Explosion-proof grade

Exd II CT6Gb



The magnetic suspension level gauge and the container to be measured form a communicating device, so that the liquid level between the container to be measured and the measuring tube body is equal. When the float in the measuring tube of the liquid level gauge changes with the measured liquid level, the magnetic body in the float interacts with the magnetic body in the color code displayed on the display bar and reverses, so that red means there is liquid and white means no The purpose of accurately displaying the liquid level on the spot.

High Performance Float Level Switch Controller With 4-20mA Output 3
High Performance Float Level Switch Controller With 4-20mA Output 4
Magnetic levitation pair installed horizontally
A) When the user receives the product, he must carefully check the product to see if there is any damage during transportation and whether it is consistent with the order requirements. After checking, install it correctly in the following order.
B) Float and measuring tube are packed separately. Remove the bottom flange, make the upper part of the float upward, put the float into the measuring tube, and install the bottom flange. Then connect with the container to be measured
C) The magnetic body in the float interacts with the magnet in the color bar on the display screen, the color code is reversed, red means liquid, and white means no liquid.
Note: Handle the float carefully to avoid damage; In order not to affect the read value, all the floats in the display column must be adjusted to white before installation.
