High Accuracy Reliable Wireless Water Level Controller With Low Price

1 Piece/Pieces
MOQ
$45.00 - $120.00 / Pieces
Price
High Accuracy Reliable Wireless Water Level Controller With Low Price
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Oil Tank Float Gauge
Warranty: 18 Months
Delivery: Express, Ship, Air
Temerature: -40~120℃
Pressure: 2.5MPa
Material: 304,316 L,1Cr18Ni9Ti, 0Cr18Ni9, 00Cr17Ni14Mo2,321, Titanium
Connection: Flange
Lifetime: 5-10 Years
Insert Length: 80~300mm
Switching State: 1 Switch
Port: Shanghai/Shenzhen
High Light:

float switch fluid level controller

,

water tank level controller

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Certification: CE/ISO9001
Model Number: UQK
Payment & Shipping Terms
Packaging Details: wooded box.
Supply Ability: 100 Piece/Pieces per Week
Product Description

High accuracy reliable wireless water level controller with low price



UHK magnetic float level swith and pontoon level switch consist of reed and magnetic float ball, which is based on the floating principle that utilizes magnetic float ball to make the relevant reed close or open according to the height changng of the liquid level, thus controlling and measuring the liquid level.

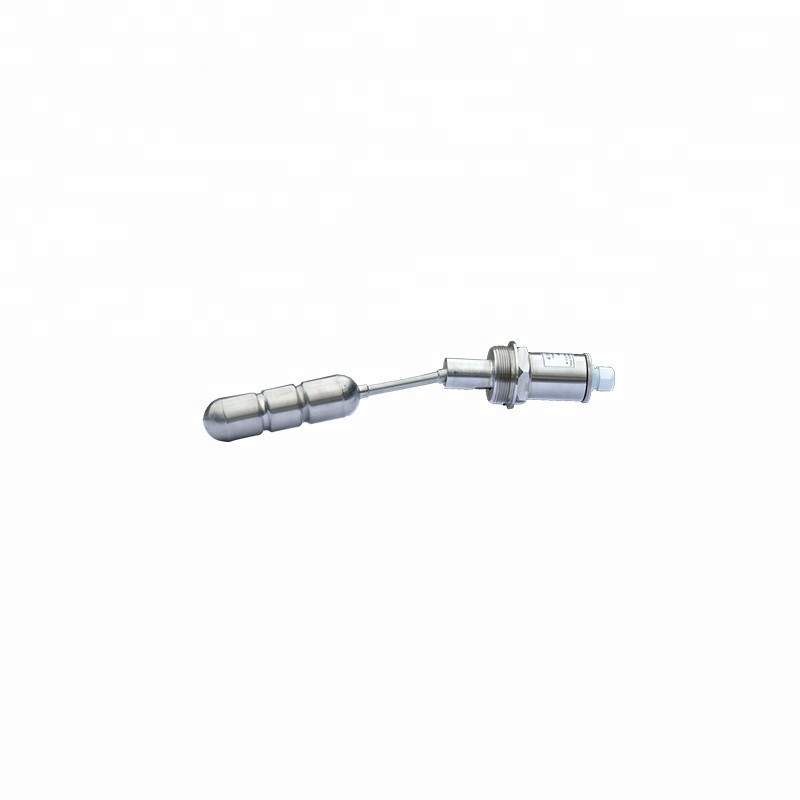

High Accuracy Reliable Wireless Water Level Controller With Low Price 0

Features:

1. No external power supply, passive output contact ;

2. Long life span, stable and reliable operation, easy installation, almost no maintenance

3. Independent of mediums’ physical and chemical status.

4. Appliable for all kinds of bad medium environment with density ≥0.5g/cm³.

5. Available for interface detection of mediums with two different densities.

6. Wide application range. Pressure 0~PN160 (max. up to PN320), temperature -40~+150 ° c;

7. At most 8 detecting points, delivering signal independently.

8. Anti-explosion design.

9.Customization.



Application:

UHK magnetic float level switch and pontoon level switch are made of different materials, and can be used in almost all strong and weak corrosion-resistant mediums and none corrosive mediums.



Technical parameters:

Installation type

DN50/RF/PL(HG/T20592-2009; >PN100,HG/T 20615-2009,DN≥65)

Medium Density

≥0.5g/cm3



Float diameter

PN≤6.3MPa, float diameter=45mm;

PN>6.3MPa, float diameter=65mm

Swith condition&Qty

transform type with one switch

Installation depth L

80~300mm

Max voltage

250VAC, 230VAC

Max current

0.6A(SPDT); 2A(SPST)

Max volume

0.6A:60W(reed pipe type); 2A:200W(jiggle switch)

Working temperature scope



-40~80°C   -40~120°C

High temperature

type

≤ 150°C

Pressure

PN2.5~PN160 (Max pressure: PN320)

Note: while pressure>PN100, flange should be ≥DN65.

Connection

M20×1.5 female thread

Installation angle

≤ ±10°

IP grade

IP65

Anti-explosion grade

Exia II CT6Ga or Exd II CT6Gb

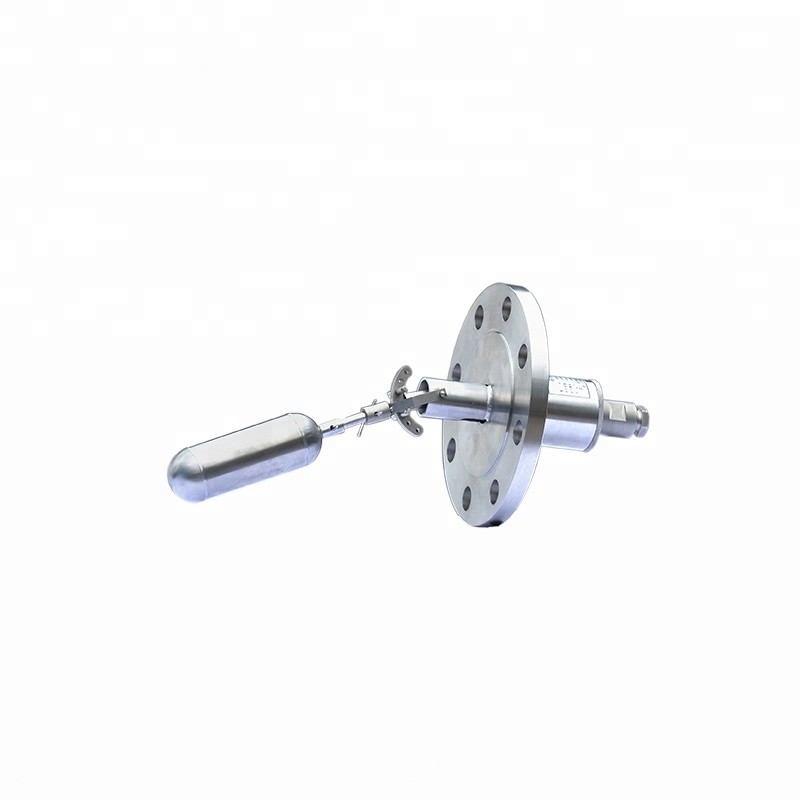

 High Accuracy Reliable Wireless Water Level Controller With Low Price 1High Accuracy Reliable Wireless Water Level Controller With Low Price 2
