Industrial Automatic Water Level Controller Stable And Reliable Operation
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Water Level Controller
Warranty: 18 Months
Delivery: Express, Ship, Air
Application: Oil, Water,fuel Etc
Pressure: 16MPa
Detect Point: 8 Switch Detect 8 Point
Connection: Flange, Thread
Contact Type: SPST, SPDT
Lifetime: 5-10 Years
Explosion Proof Grade: Exia II CT5Ga, Exd II BT5Gb
Port: Shanghai/shenzhen
High Light:

float switch fluid level controller

,

water level controller

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Certification: CE/TUV/ISO9001/SGS
Model Number: UHKG
Payment & Shipping Terms
Packaging Details: wooded box for water level controller
Supply Ability: 200 Piece/Pieces per Week
Product Description

Industrial Automatic Water Level Controller Stable And Reliable Operation

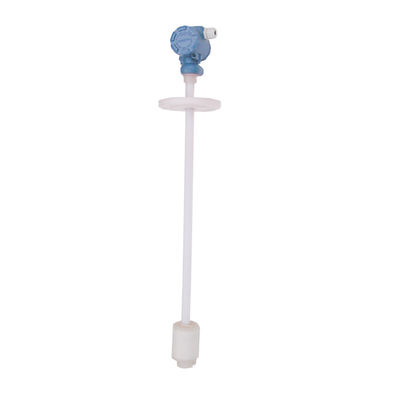

Industrial Automatic Water Level Controller Stable And Reliable Operation 0

Product Description

Magnetic float level switch consist of reed and magnetic float ball, which is based on the floating principle that utilizes magnetic float ball to make the relevant reed close or open according to the height changing of the liquid level, thus controlling and measuring the liquid level.

 Product features

1.Long life span, stable and reliable operation, easy installation, almost no maintenance

2.Independent of mediums physical and chemical status

3. Appliable for all kinds of bad medium environment with density ≥0.5g/cm³

4. Available for interface detection of mediums with two different densities

5. Wide application range. Pressure 0~PN160 (max. up to PN320), temperature -40~+150 ° c

 Product Parameters

(1) High temperaturre type:

≤150℃

(2)Protection grade:

IP65

(3)Working temperature scope:

-40℃~80℃  -40~120℃

(4)Anti-explosion grade:

EXia EXd

(5)Installation Angle :

≤±25°

(6)Installation Type: DN50/RF/PL(HG/T20592-2009)
(7)Working pressure: PN2.5~ PN160(Max pressure PN320)

(8)Medium Density:

≥0.5g/cm3

(9)Connection :

M20*1.5 female thread

(10)MAX Installation Depth:

6000mm



Detailed Images

  Industrial Automatic Water Level Controller Stable And Reliable Operation 1
Industrial Automatic Water Level Controller Stable And Reliable Operation 2

The magnetic suspension level gauge and the container to be measured form a communicating device, so that the liquid level between the container to be measured and the measuring tube body is equal. When the float in the measuring tube of the liquid level gauge changes with the measured liquid level, the magnetic body in the float interacts with the magnetic body in the color code displayed on the display bar and reverses, so that red means there is liquid and white means no The purpose of accurately displaying the liquid level on the spot.

Industrial Automatic Water Level Controller Stable And Reliable Operation 3
Industrial Automatic Water Level Controller Stable And Reliable Operation 4
Magnetic levitation pair installed horizontally
A) When the user receives the product, he must carefully check the product to see if there is any damage during transportation and whether it is consistent with the order requirements. After checking, install it correctly in the following order.
B) Float and measuring tube are packed separately. Remove the bottom flange, make the upper part of the float upward, put the float into the measuring tube, and install the bottom flange. Then connect with the container to be measured
C) The magnetic body in the float interacts with the magnet in the color bar on the display screen, the color code is reversed, red means liquid, and white means no liquid.
Note: Handle the float carefully to avoid damage; In order not to affect the read value, all the floats in the display column must be adjusted to white before installation.
