Anticorrosive Stable Wireless Water Level Switch Controller With Various Material

1 Piece/Pieces
MOQ
Negotiable
Price
Anticorrosive Stable Wireless Water Level Switch Controller With Various Material
Features Gallery Product Description Request A Quote
Features
Specifications
Meterial: 304,316L,1Cr18Ni9Ti,0Cr18Ni9,00Cr17Ni14Mo2,Titanium
Connection: Flange DN50~DN150 RF
Name: 12V Magnetic Float Switch
After Service: Twelve Months
Max Measurement: L=6m
Max Control Area: L-120mm
Min Control: 50mm
Density: >0.5g/cm3
Pressure: PN2.5-PN160
Float Diameter: D28~120
Port: Shanghai/shenzhen
High Light:

water tank level controller

,

water level controller

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Certification: CE/TUV/ISO9001/SGS
Model Number: UHC
Payment & Shipping Terms
Packaging Details: wooden box.
Supply Ability: 100 Piece/Pieces per Month
Product Description

Anticorrosive Stable Wireless Water Level Switch Controller With Various Material

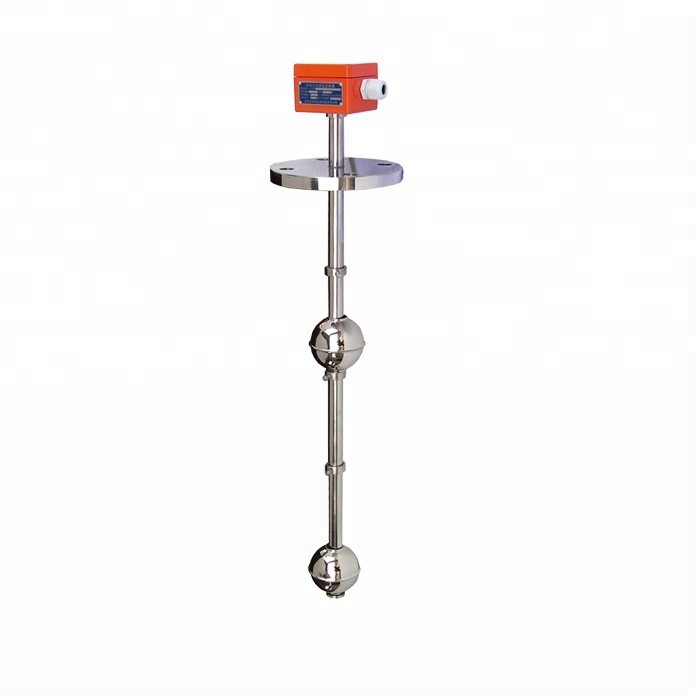

Anticorrosive Stable Wireless Water Level Switch Controller With Various Material 0

Product Description

Magnetic float level switch consist of reed and magnetic float ball, which is based on the floating principle that utilizes magnetic float ball to make the relevant reed close or open according to the height changing of the liquid level, thus controlling and measuring the liquid level.

Product features

1.Long life span, stable and reliable operation, easy installation, almost no maintenance

2.Independent of mediums physical and chemical status

3. Appliable for all kinds of bad medium environment with density ≥0.5g/cm³

4. Available for interface detection of mediums with two different densities

5. Wide application range. Pressure 0~PN160 (max. up to PN320), temperature -40~+150 ° c

Product Parameters

(1) High temperaturre type: ≤150℃
(2)Protection grade: IP65
(3)Working temperature scope: -40℃~80℃ -40~120℃
(4)Anti-explosion grade: EXia EXd
(5)Installation Angle : ≤±25°
(6)Installation Type: DN50/RF/PL(HG/T20592-2009)
(7)Working pressure: PN2.5~ PN160(Max pressure PN320)
(8)Medium Density: ≥0.5g/cm3
(9)Connection : M20*1.5 female thread
(10)MAX Installation Depth: 6000mm



Detailed Images

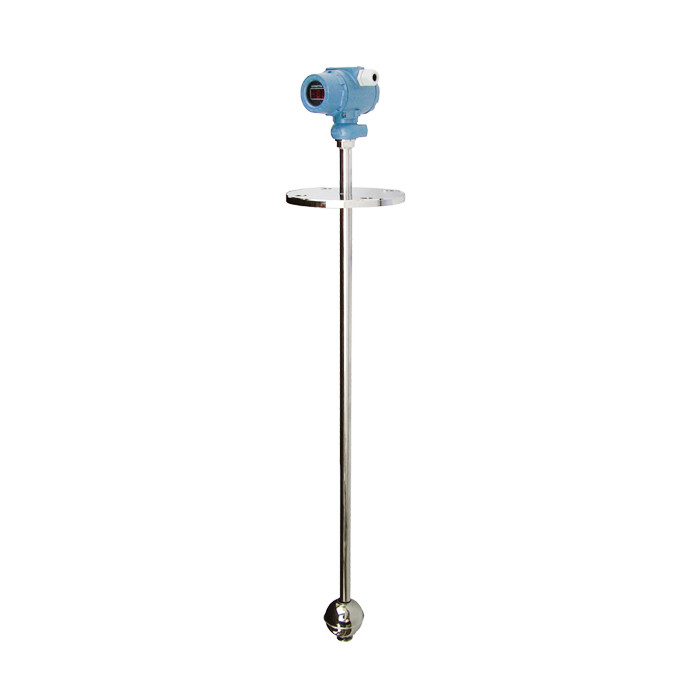

Anticorrosive Stable Wireless Water Level Switch Controller With Various Material 1

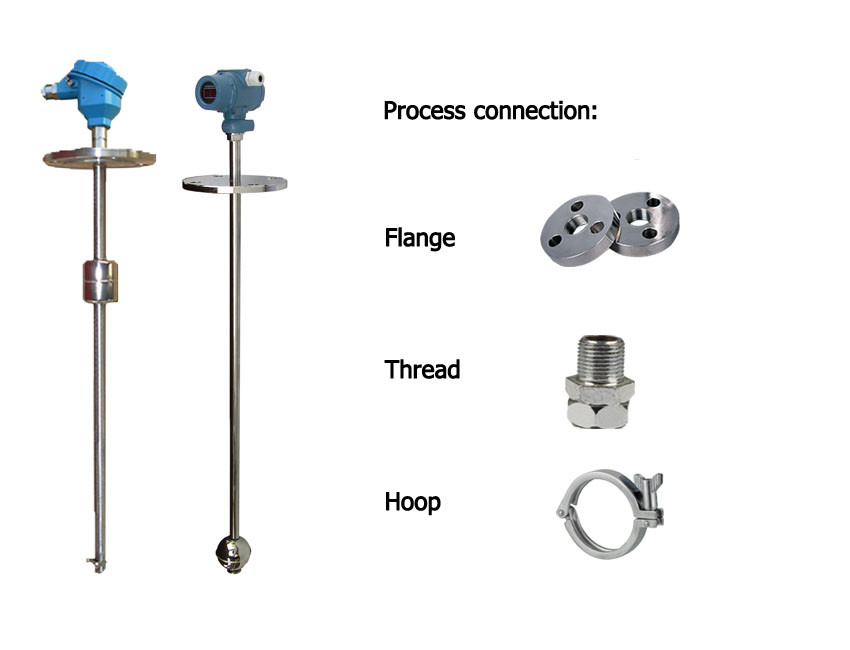

Anticorrosive Stable Wireless Water Level Switch Controller With Various Material 2

The magnetic suspension level gauge and the container to be measured form a communicating device, so that the liquid level between the container to be measured and the measuring tube body is equal. When the float in the measuring tube of the liquid level gauge changes with the measured liquid level, the magnetic body in the float interacts with the magnetic body in the color code displayed on the display bar and reverses, so that red means there is liquid and white means no The purpose of accurately displaying the liquid level on the spot.

Anticorrosive Stable Wireless Water Level Switch Controller With Various Material 3
Anticorrosive Stable Wireless Water Level Switch Controller With Various Material 4
Magnetic levitation pair installed horizontally
A) When the user receives the product, he must carefully check the product to see if there is any damage during transportation and whether it is consistent with the order requirements. After checking, install it correctly in the following order.
B) Float and measuring tube are packed separately. Remove the bottom flange, make the upper part of the float upward, put the float into the measuring tube, and install the bottom flange. Then connect with the container to be measured
C) The magnetic body in the float interacts with the magnet in the color bar on the display screen, the color code is reversed, red means liquid, and white means no liquid.
Note: Handle the float carefully to avoid damage; In order not to affect the read value, all the floats in the display column must be adjusted to white before installation.
