UQK Stainless Side Mounted Magnetic Float Type Switch Almost No Maintenance
1 Piece/Pieces
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Model Number: UQK
High Light:

float switch fluid level controller


water tank level controller

Payment & Shipping Terms
Packaging Details: Wooden box
Supply Ability: 100 Piece/Pieces per Week
Name: UQK Stainless Side Mounted Magnetic Float Switch
Medium Density: >=0.5g/cm3
Float Diameter: 30~120
Operating Pressure: PN2.5~PN160 Specially PN320
Working Temperature: ≤150°C
Connection: M20*1.5 Female Thread
Working Power Supply: No Need
Installation Angle: ≤±10°
Explosion-proof Grade: Exia II CT5Ga Exd II BT6Gb
IP Grade: IP65
Port: Shanghai/shenzhen
Product Description

UQK stainless side mounted magnetic float switch

Product Description
UQK magnetic float level switch consist of switch and magnetic float ball, which is based on the floating principle that utilizes magnetic float ball to make the relevant switch close or open according to the height changing of the liquid level, thus detecting the liquid level.

 Product features

1.Long life span, stable and reliable operation, easy installation, almost no maintenance

2.Independent of mediums physical and chemical status

3. Appliable for all kinds of bad medium environment with density ≥0.5g/cm³

4. Available for interface detection of mediums with two different densities

5. Wide application range. Pressure 0~PN160 (max. up to PN320), temperature -40~+120 ° c



 Product Parameters

(1) High temperaturre type:


(2)Protection grade:


(3)Working temperature scope:

-40℃~80℃  -40~120℃

(4)Anti-explosion grade:

EXia EXd

(5)Switch condition &Qty:

Transform type with one switch

(6)Installation Type: DN50/RF/PL(HG/T20592-2009;>PN100,HG/T20615-2009,DN≥65
(7)Float Diameter: PN≤6.3MPa,float diameter=45mm; PN>6.3MPa,float diameter=65mm

(8)Medium Density:


(9)Connection :

M20*1.5 female thread

(10)Installation Depth:



Detailed Images

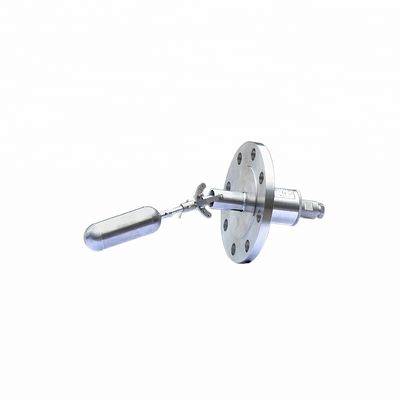

  UQK Stainless Side Mounted Magnetic Float Type Switch Almost No Maintenance 0UQK Stainless Side Mounted Magnetic Float Type Switch Almost No Maintenance 1

Related Products


Product Application

Company Information

Sichuan VACORDA Instruments Manufacturing Co., Ltd. is a professional production-manufacturing enterprise specialized in designing, producing and marketing of instruments and apparatuses. Our company has been established for 21 years since 1997 to grow up to be a team of high-quality, united, hard-working and truth-seeking characters. Solid foundation has been established.
