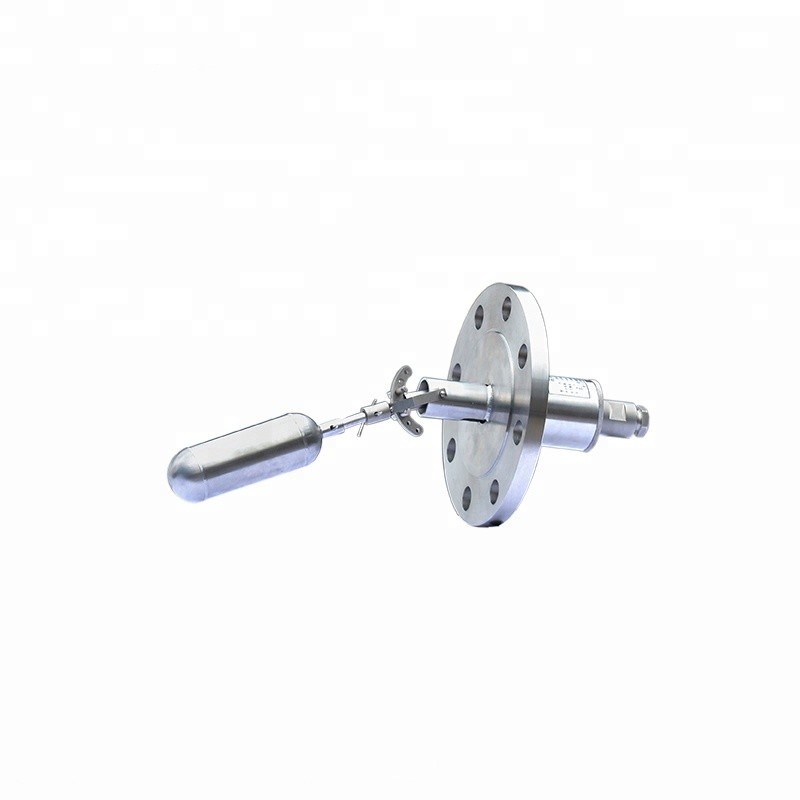

Magnetic water liquid level float switch

1 Piece/Pieces
MOQ
$150.00 - $350.00 / Pieces
Price
Magnetic water liquid level float switch
Features Gallery Product Description Request A Quote
Features
Specifications
Pipe Diameter: 14mm/16mm/20mm(customize)
Medium Density: >=0.5g/cm3
Float Diameter: PN≤6.3MPa,float Diameter=45mm; PN>6.3MPa,float Diameter=65mm
MAX Installation Depth: 6000mm
MAX Voltage: 250VAC,230VDC
MAX Volume: 0.6A:60W(reed Pipe Type); 2A:200W(jiggle Switch)
Installation Type: DN50~DN150/RF/PL(HG/T20592-2009)
Protection Grade: IP65
MAX Current: 0.6A(SPDT);2A(SPST)
Product Name: Level Float Switch
Port: Shanghai/Shenzhen
High Light:

float switch fluid level controller

,

water tank level controller

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: VACORDA
Model Number: HKD
Payment & Shipping Terms
Packaging Details: Wooden box
Supply Ability: 350 Piece/Pieces per Month
Product Description

Magnetic water liquid level float switch

Product Description

Magnetic float level switch consist of reed and magnetic float ball, which is based on the floating principle that utilizes magnetic float ball to make the relevant reed close or open according to the height changing of the liquid level, thus controlling and measuring the liquid level.

 Product features

1.Long life span, stable and reliable operation, easy installation, almost no maintenance

2.Independent of mediums physical and chemical status

3. Appliable for all kinds of bad medium environment with density ≥0.5g/cm³

4. Available for interface detection of mediums with two different densities

5. Wide application range. Pressure 0~PN160 (max. up to PN320), temperature -40~+150 ° c





 Product Parameters

(1) High temperaturre type:

≤150℃

(2)Protection grade:

IP65

(3)Working temperature scope:

-40℃~80℃  -40~120℃

(4)Anti-explosion grade:

EXia EXd

(5)Installation Angle :

≤±25°

(6)Installation Type:DN50/RF/PL(HG/T20592-2009)
(7)Float Diameter:PN≤6.3MPa,float diameter=45mm; PN>6.3MPa,float diameter=65mm

(8)Medium Density:

≥0.5g/cm3

(9)Connection :

M20*1.5 female thread

(10)MAX Installation Depth:

6000mm



Detailed Images

  Magnetic water liquid level float switch 0Magnetic water liquid level float switch 1



Related Products

Magnetic water liquid level float switch 2Magnetic water liquid level float switch 4Magnetic water liquid level float switch 6Magnetic water liquid level float switch 8Magnetic water liquid level float switch 10



Product Application

Magnetic water liquid level float switch 12







Company Information

 Magnetic water liquid level float switch 13Magnetic water liquid level float switch 14

Sichuan VACORDA Instruments Manufacturing Co., Ltd. is a professional production-manufacturing enterprise specialized in designing, producing and marketing of instruments and apparatuses. Our company has been established for 21 years since 1997 to grow up to be a team of high-quality, united, hard-working and truth-seeking characters. Solid foundation has been established.
