Automatic Water Level Controller With Float Switch Sensor Easy Installation
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Multipoint Magnetic Float Level Switch
Medium Density: >=0.5g/cm3
Float Diameter: 30~120
Operating Pressure: PN2.5~PN160 Specially PN320
Working Temperature: ≤150°C
Connection: M20*1.5 Female Thread
Working Power Supply: No Need
Installation Angle: ≤±25°
Explosion-proof Grade: Exia II CT5Ga Exd II BT6Gb
IP Grade: IP65
Port: Shanghai/shenzhen
High Light:

float switch fluid level controller

,

water level controller

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Model Number: UHK
Payment & Shipping Terms
Packaging Details: Wooden box
Supply Ability: 100 Piece/Pieces per Week
Product Description

Automatic Water Level Controller With Float Switch Sensor Easy Installation



Product Description

UHKG magnetic floatlevel controllerconsists of reed, magnetic floatball andinternal circuit, which is basedon the floating  principlethat utilizesmagnetic  floatball to make the reed close or open at the lowestand highest points according tothe heightchanging of the liquid level. UHKGtype floatlevel controlleris composedof reedpipe, magneticfloat andinternal circuit, taking advantage of the floating ball witha magneticcomponent lifting with the levelto drivethe openingor closingof theoffline and online  location  of  the  dry  reed  pipe.  Through  the  internal circuit device outputs a set  of  continuously  open  to continuously closed ( SPDT) passivecontact ,the contacts can stringdirectly into the AC contactorcoil circuit which can control the AC contactor to close or open (without the need for additional secondary circuit) to control the  water pump motor or other electrical equipment’s play or stop and to control the container’s level automatically.



Product features

1. Long life span, stable andreliable operation, easy installation, almost no maintenance

2. Independent of mediums’physical and chemical status.

3. Appliable for allkinds ofbad mediumenvironment with density  0.5g/cm³.

4. Available for interfacedetection of mediums with twodifferent densities.

5. Wide application range. Pressure 0~PN160(max. upto PN320),temperature -40~+150 ° c;

6. Anti-explosion design.

7. Upper limit and/or lowerlimit available.



Technical parameter

connection type: flange DN50~DN150, G2" or G11/2" thread
diameter pipe: 16mm, 20mm
max length: 6000mm
switching state: SPST; SPDT
switch No.: max 8 switches
contact nodes: AO-normally open (250VAC 0.5A 20W)
  AC-normally closed ( 250VAC 0.5A 20W )
  BO- normally open (250VAC 1.0A 250W)
  BC- normally closed ( 250VAC 1.0A 250W )
  C-transformation ( 250VAC 1.0A 60W )
life time: ≤1x109
tolerance: ±8±2 mm
minmum distance of tow switches: 50mm
transmitting: above2000mm
medium density: above 0.5g/cm3
working presure: PN2.5~PN160
working temperature: -40~80°C; -40~120°C
high temperature type: ≤150°C
float ball: φ30~ φ120
material: 304,316L, 321, 1Cr18Ni9Ti, 0Cr18Ni9Ti, 00Cr17Ni14Mo2, Titanium
installation of no vertical: ≤±25°
protection class: IP65
explosion-proof: ExiaII CT5

Detailed image

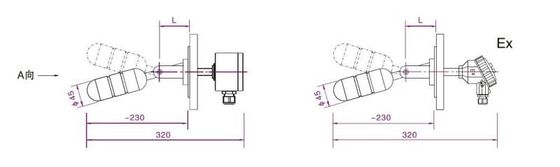

Automatic Water Level Controller With Float Switch Sensor Easy Installation 0

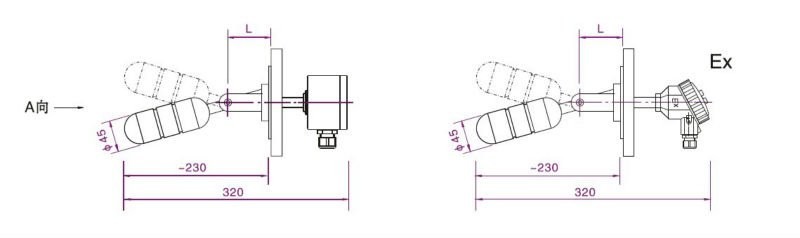

Automatic Water Level Controller With Float Switch Sensor Easy Installation 1
