High Pressure Anti Corrosive Magnetic Fuel Level Sensor liquid level detector

1 Piece/Pieces
High Pressure Anti Corrosive Magnetic Fuel Level Sensor liquid level detector
Features Gallery Product Description Request A Quote
Temperature: Pp≤80℃,PVC≤60℃
Product Name: Anti-corrosive Anti-explosion Diesel Fuel Tank Level Gauge Stand High Pressure
Pressure: PP:PN2.5~PN16 PVC:PN2.5~PN10
Color: White/red Flap Indicator
Installation Form: Side Mounted,top Mounted,rope Type, Side+top Mounted...
Material: 304,316 L,1Cr18Ni9Ti, 0Cr18Ni9, 00Cr17Ni14Mo2,321, Titanium
Center To Center Distance: 150~4000mm Or Customize
Protection Class: IP65
Model: Magnetic Fliud Level Gauge
Life Span: 5-8 Years
Port: Shanghai/shenzhen
High Light:

Anti Explosion Fuel Tank Level Gauge


magnetic fuel tank level indicator


Anti-Corrosive Fuel Tank Level Gauge

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Certification: CE/TUV/ISO9001/SGS
Model Number: UHC-CJ
Payment & Shipping Terms
Packaging Details: Wooden box
Supply Ability: 100 Piece/Pieces per Week
Product Description

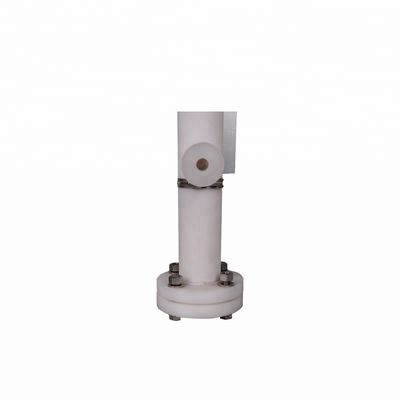

High Pressure Anti Corrosive Magnetic Fuel Level Sensor Liquid Level Detector

High Pressure Anti Corrosive Magnetic Fuel Level Sensor liquid level detector 0

Product Description
The UHC type magnetic flap liquid level gauge is made up of measuring body,dual-colored display cylinder, ruler, top&low flange, magnetic ball and transmitter (4-20mA). Based on buoyance principle, the magnetic ball in the body of the level gauge is up or down with the liquid level changing and makes dual-colored turning to show the level of medium. Each cylinder is with two-color axisymmetric structures. The distance of two cylinders is 10mm. Red side of display cylinder indicates liquid and white side display cylinder indicates air. Besides measuring liquid level, it also could measure the interface of the two kinds of liquid.


 Product feature

1. Simple structure, good stability and reliability

2. Independent of medium’s physical and chemical states such as conductivity, dielectric constants, foam etc.

3. Appliable for all kinds of medium environment such as corrosive, toxic and explosive one.

4. Interface measurement or level measurement of 2 kinds of medium with different density.

5. Two-wire 4~20mADC signal output, 0.8’’ or 0.56” LED digital display.


Product features

(1) Center-center distance:


(2) Medium density:

More than 0.45g/cm3

(3) Nominal pressure:

PP:PN2.5~PN16 PVC:PN2.5~PN10

(4) Material:


(5)Operating temperature:


(6) Process connection:


(7)Indicator types:

A: Al &ABS flap cylinder

B: Al flap plate

C: PVC ABS flap cylinder

D: PP&ABS flap cylinder





(8) Structure of top chamber:

1.Welding cover

2.welding cover with M14*1.5 plug screw


4.flange with M14*1.5 plug screw

5.welding cover with DN20 flange

6.flange with DN20 flange

7.welding cover with air valve

8.flange with air valve


(9) Structure of bottom chamber:

1.flange cover

2.flange with drain plug screw

3.flange with DN20 welding tube

4.with DN20 flange 5.with needle/ball valve

Protection class:


Application: Widely used in petroleum, chemical industry, oil field, pharmaceuticals industry, food, wine

industry etc., suitable for level measurements under the environment of high/low temp., high pressure,

strong corrosion, toxicity.

NoteBasic type, top mounted type, heat tracing type, LPG specialized type, anti-corrosive type, boiler

steam specialized type etc,they have some differences in technical parameter. Different pressure has

different flange specification.

Detailed Images

 High Pressure Anti Corrosive Magnetic Fuel Level Sensor liquid level detector 1

High Pressure Anti Corrosive Magnetic Fuel Level Sensor liquid level detector 2High Pressure Anti Corrosive Magnetic Fuel Level Sensor liquid level detector 3High Pressure Anti Corrosive Magnetic Fuel Level Sensor liquid level detector 4High Pressure Anti Corrosive Magnetic Fuel Level Sensor liquid level detector 5

How can I buy a cost-effective magnetic flap level gauge?
If you want to achieve automatic control and remote operation of the liquid level, whether it is a side-mounted magnetic reversal plate level gauge or a top-mounted magnetic reversal plate level gauge, it can be connected with remote transmission equipment such as magnetic switches and remote transmitters to achieve After the connection function, the magnetic reversal plate level gauge is the so-called remote transmission magnetic reversal plate level gauge.

Of course, according to the measured liquid corrosion strength, for automation, different types of plate liquids such as economical plate level gauges, standard plate level gauges, plastic plate level gauges and lined plate level gauges have also been developed. Bit meter for users to choose
It is important to note that in the purchase process, low prices are not pursued. It is often said that every penny pays. If you do not consider product quality and simply pursue low prices, you can only pay greater production losses and maintenance costs, and cannot make up for the losses.
How to accurately determine the magnetic plate level gauge

3. How to determine the magnetic flap level gauge?
(1) The water in the container rises or falls too fast. In other words, the maglev train rises or falls too fast, and there is no time for the maglev train to overturn.
(2) The center of gravity of the magnetic levitation sheet is not at the center point. As the magnetic levitation element rises and the magnetic levitation flips, the magnetic levitation element rises further, and the flip sheet returns to its original position without showing a state of water level.
(3) Excessive impurities in the container will be adsorbed on the surface of the magnetic levitation element, resulting in a decrease in the magnetic characteristics of the magnetic levitation element. If the maglev rises, the flip chip cannot be rotated. 4) The actual water level in the container rises because the liquid phase conduit of the water is blocked differently. The magnetic levitation will not rise accordingly.

How to accurately determine the magnetic plate level gauge? What should I pay attention to when using? In fact, there are many factors that affect the inaccuracy of the magnetic flap level gauge. Everyone is welcome to follow the instructions to use, and finally go to the Kaikeda Instrument Company to purchase measurement products.
