Ammonia Level Indicator For Side Mounted

10 Piece/Pieces
Ammonia Level Indicator For Side Mounted
Features Gallery Product Description Request A Quote
Range: 150~6000mm
Pressure: PN2.5 ~ PN40
Temperature: -190 ~ +425 °C
Installation: Side Mounted
Warranty: 18 Months
Material: 304,316 L,1Cr18Ni9Ti, 0Cr18Ni9, 00Cr17Ni14Mo2,321, Titanium
Flap: Red And White
Protection Class: IP65
Model: Level Indicator
Product Name: Ammonia Level Indicator For Side Mounted
Port: Shanghai/shenzhen
High Light:

magnetic liquid level gauge


mechanical tank level gauge


Side Mounted Ammonia Level Indicator

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Model Number: UHC-CJ
Payment & Shipping Terms
Packaging Details: wooden box of ammonia level indicator
Supply Ability: 1000 Piece/Pieces per Month
Product Description

ammonia level indicator for side mounted


Product Description

The UHC magnetic liquid level gauge is made up of measuring body,dual-colored display cylinder, ruler, top&low flange,magnetic ball and transmitter (4-20mA).Based on buoyance principle,the magnetic ball in the body of the level gauge is up or down with the liquid level changing and makes dual-colored turning to show the level of medium. Each cylinder is with two-color axisymmetric structures.The distance of two cylinders is 10mm. Red side of display cylinder indicates liquid and white side display cylinder indicates air. Besides measuring liquid level,it also could measure the interface of the two kinds of liquid.


Product Features

Simple structure, good stability, reliability and durability.
• Isolated medium, indicator, transmitter and switch
• Wide range of operating pressure: vacuum to 42Mpa
• Wide range of operating temperature: -190℃ to 425 ℃
• Independent of medium’s physical and chemical states.
• SPST or SPDT available
• Optioning float level transducer or capacitive two-wire level transducer to transmit 4-20mA DC signal (or         HART) and realize remote control and measurement.
• Two-wire level transducer can be with 0.56" LED digital indicator for night observation.

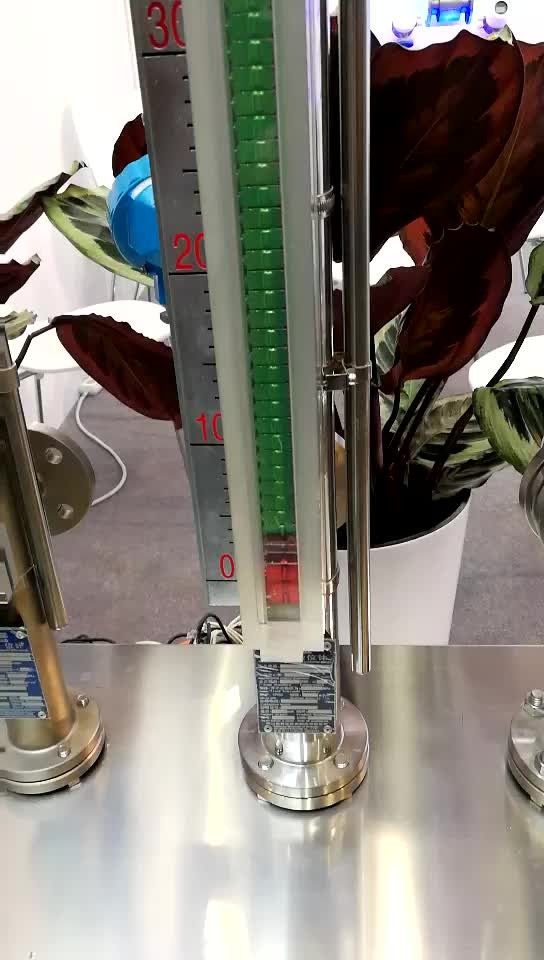

Ammonia Level Indicator For Side Mounted 0


Product Parameters

(1) Center-center distance:


(2) Medium density:

More than 0.45g/cm3

(3) Nominal pressure:

PN2.5~PN40(x 0.1MPa)

(4) Material:

SS304, 316L or customized

(5)Operating temperature:

-190 ~ +425 °C

(6) Process connection:

DN20/RF/14(or customized)

(7)Indicator types:

    A: Al &ABS flap cylinder

B: Al flap plate

    C: PVC ABS flap cylinder

D: PP&ABS flap cylinder

    E: AL &LED


(8) Structure of top chamber:

1.Welding cover 2.welding cover with M14*1.5 plug screw 3.flange 4.flange with M14*1.5 plug screw 5.welding cover with DN20 flange 6.flange with DN20 flange 7.welding cover with air valve 8.flange with air valve

(9) Structure of bottom chamber:

1.flange cover 2.flange with drain plug screw 3.flange with DN20 welding tube 4.with DN20 flange 5.with needle/ball valve

(10)Protection class:


Application: Widely used in petroleum, chemical industry, oil field, pharmaceuticals industry, food, wine industry etc., suitable for level measurements under the environment of high/low temp., high pressure, strong corrosion, toxicity.

Note: Basic type, top mounted type, heat tracing type, LPG specialized type, anti-corrosive type, boiler steam specialized type etc, they have some differences in technical parameter. Different pressure has different flange specification.


Detailed Images

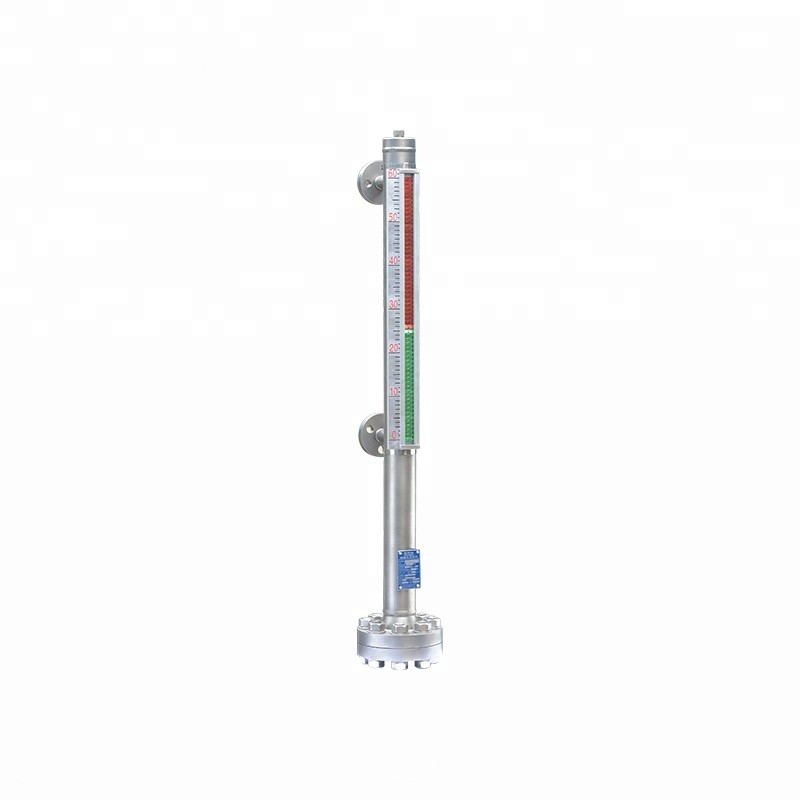

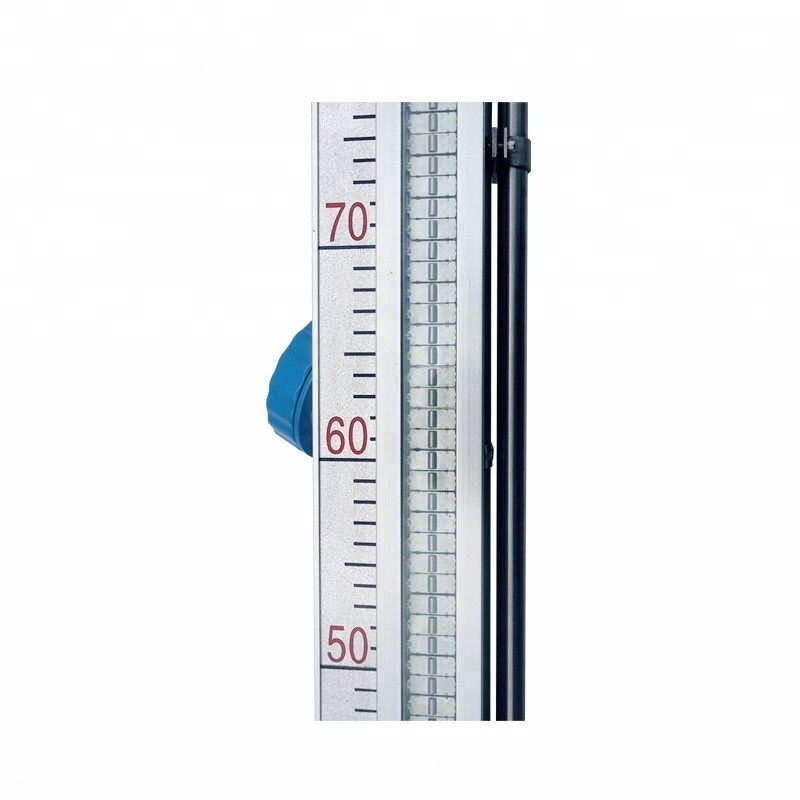

 Ammonia Level Indicator For Side Mounted 1Ammonia Level Indicator For Side Mounted 2Ammonia Level Indicator For Side Mounted 3Ammonia Level Indicator For Side Mounted 4Ammonia Level Indicator For Side Mounted 5

Principle of the remote magnetic flap level gauge

Because the remote magnetic flap level gauge is composed of a magnetic flap level gauge and a reed remote transmitter, combining the two components of the magnetic flap level gauge &1 introduces the working principle of the magnetic flap level gauge. The basic type of magnetic flap level gauge is a magnetic flap level gauge, also known as a magnetic float level gauge. Based on the structure of the connector, the principle of buoyancy and the magnetic coupling characteristics, real-time measurement of the liquid level is realized. When the liquid level in the measured container rises or falls, the magnetic float used to sense the change of the liquid level in the main measuring tube will also rise or fall. The permanent magnet steel in the float drives the magnetic flap outside the main measuring tube to flip 180&; 180 flux magnetic coupling; the two sides of the valve are painted with different colors (usually red and white) to indicate the position of the liquid level. When the liquid level in the container rises, the valve changes from white to red. When the liquid level in the container drops, the valve changes from red to white. The red and white junction of the indicator is the actual height of the liquid level in the container, so as to realize the accurate measurement and local display of the liquid level.
