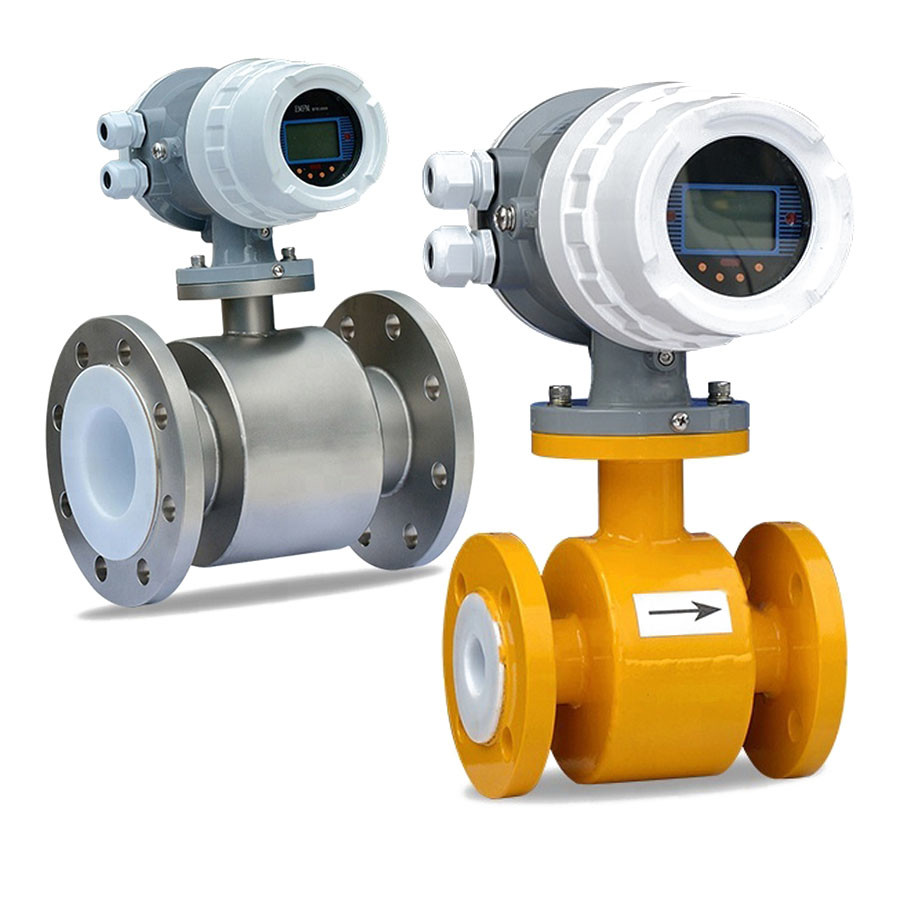

IP65 Waterproof Electromagnetic Flow Meter Stainless Steel Chamber
Electromagnetic Flow Meter Features
* The measuring principle is virtually independent of pressure, density, temperature and viscosity
* Even fluids with entrained solids can be metered, e.g. ore slurry or cellulose pulp
* Wide range of nominal diameters (DN 2 to 2400; 1/12 to 90")
* Free pipe cross-section: CIP/SIP cleanable, piggable
* No moving parts, maintenance-free
* Line sizes available from 1/2in (15mm) to 48in (1200mm) Call us for sizes above 24 inches
* Fully welded construction Withstands sustained vibration
* Dual-compartment transmitter housing keeps electronics isolated from moisture and contamination
* Continuous meter verification confirms meter calibration without interrupting the process
* Electrode coating diagnostic indicates when preventive maintenance is needed, avoiding unexpected downtime
Electromagnetic Flow Meter Parameters
|
Product Name |
Electromagnetic Flowmeter |
|
Repeatability error |
+/-0.1% |
|
Accuracy class |
0.5 class, 1.0 class |
|
Measured medium temperature |
Common rubber lining: -20~+60 ° c |
|
High temperature rubber lining: -20~+90 ° c |
|
|
PTFE lining: -30~+100 ° c |
|
|
High temperature vinyl lining: -30~+180 ° c |
|
|
Rated working pressure |
pipeline: DN10~DN65: ≤ 2.5MPa;DN80~DN150: ≤ 1.6MPa; DN200~DN1200: ≤ 1.0MPa |
|
Flow rate range |
0.3~15m/s |
|
Measured fluid conductivity |
≥5μs/cm liquid |
|
Output |
4~20mA / 4~20mA + Hart |
|
Electrode material |
316L, titanium (Ti), tantalum (Ta), Hastelloy (H), Platinum (Pt) or other special electrode materials |
|
Working power supply |
85~265VAC / 24VDC / Battery |
|
Straight pipe length |
pipe: ≥ 5DN in the upper reaches, downstream of greater than or equal to 2DN |
|
Connections |
Flange |
|
Protection grade |
standard: IP65; IP68(optional) |
|
Explosion-proof mark |
mdllBT4 |
