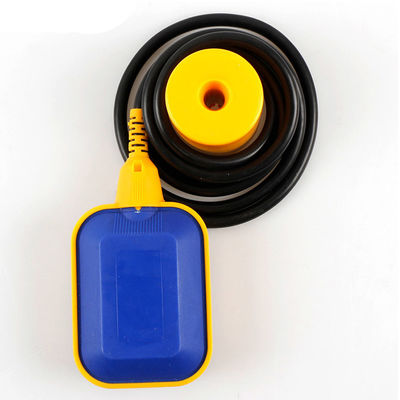

Cable float level switch product description
cable float switch is the use of micro-switches or reed contact switch to do , when to hammer origin cable float upward at an angle ( usually micro switch upward angle of 28 ° ± 2 °,), the switch will that the ON or OFF signal.
one type is the use of plastic injection molding , it is rugged , reliable performance, while non-toxic , corrosion resistance, easy installation , low cost, multi-point control of long-distance , heavy pumps, there are fluctuations in the liquid or liquid impurities control good effect. General liquid can also be used . Cable lengths and special material requirements can be customized.
Simplicity in structure, convenience in operation, long service life, easiness in maintenance and environment friendly. It can resist sewage,so that widely used in pool in resident,factories and mines ect., and ponds, barrel, manger and pot with oil, acidand alkali as well as the vessel with high viscosity and suspended substance.
Why choose us:
1. 23 years of instrumentation equipment production experience
2. Product support OEM / ODM, export to more than 100 countries
3. The company area 20,000 square meters, and 150+ orders per month
4. Provide email, skype, whatsapp 24-hour one-on-one technical support service online
Working Principle
Float switch is using microswitch to be contact elements.When the liquid level rises to the float place, angle of floats place will be changed by the liquid level. When it reaches an certain angle, there will be ON or OFF contact signal output at the switches.
Installation
Basic Parameters
| Float Materia: | PP, SUS304 |
| Contact Capacitance: | 10A/250VAC(PP),2A/250VAC(SUS304) |
| Contact type: | 1A,1B or 1AB(PP),SPDT(SUS304) |
| Cable specification: | Rubber cable and PVC(PP),Silicone:0.75mm2×3C(SUS304) |
| Suitable temperature: | Rubber cable: -10℃~80℃,PVC cable:0℃~60℃,Silicone: 0~170℃ |
| Gravity: | >0.6g/cm3(PP),>0.5g/cm3(SUS304) |
*Water pump below 220V 1KW, can use directly.
*Water pump over 1KW, needs A.C. contractor or relay.*
