Water And Oil Tank Float Ball Level Gauge Polypropylene Anti Corrosion

1
MOQ
Negotiable
Price
Water And Oil Tank Float Ball Level Gauge Polypropylene Anti Corrosion
Features Gallery Product Description Request A Quote
Features
Specifications
Matrial: PP, PVC
Working Temperature: ≤150℃
Working Pressure: PN2.5~PN160
Output: 4-20mA
High Light:

magnetic float level indicator

,

magnetic float level sensor

Basic Infomation
Place of Origin: Sichuan
Brand Name: VACORDA
Certification: CE, ISO, SIL
Model Number: UHC
Payment & Shipping Terms
Payment Terms: T/T, Western Union,Secure payment
Product Description

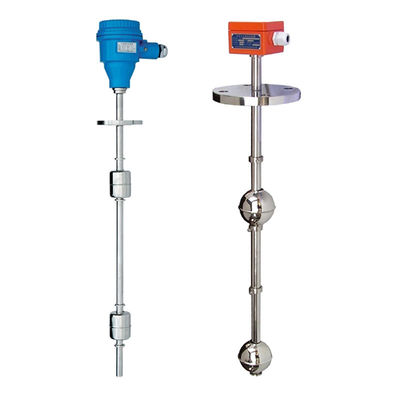

Water And Oil Tank Float Ball Level Gauge Polypropylene Anti Corrosion 0
Product Description

Vacorda magnetic float ball level gauge consists of reed, precise resistance and amplification transformation circuit and adopt imported advanced sensor components and signal transmitters. When the magnetic line of the magnetic float ball reaches a certain place of the level sensor, the reed closes, and the float ball changes with the height of level interface. The amplification transformation circuit converts the change of the interface height into linear 4~20mADCsignal to realize the measurement and transmission of the level location signal.



Product installation

magnetic float  ball water level gauge



Product features

1. Simple structure, good stability and reliability.

2. Independent of medium’s physical and chemical states such as conductivity, dielectric constants, foam etc.

3. Appliable for all kinds of medium environment such as corrosive, toxic and explosive one.

4. Interface measurement or level measurement of 2 kinds of medium with different density.

5. Two-wire 4~20mADC signal output, 0.8’’ or 0.56” LED digital display.

6.Explosion-proof structure design for exploding environment



Product Parameters

Measuring range 200~6000mm(>6M customize)
Resolution factor 10mm,5mm,20mm
singal output

4~20mA(two-line)

2000/m(1/2",3/8")

Loading resistance 500Ω
Transmitting >1000m
Working power supply 16~30VDC
Density ≥0.5g/cm3
Pressure PN2.5~PN160(×0.1MPa)(Max pressure PN320)
Operating temperature -40 ~ 80 °C, ≤120 °C, ≤150 °C
Float ball diameter Φ30~Φ120(depending on pressure and density)
Flange installation DN40~DN150/RF/PL(HG/T20592~2009) customize

2'' thread(downward install)

1/2'' thread (upward install, resistance signaloutput)

3/8'' thread(upward install, resistance signal output)

Installation angle ≤±25°
Electrical connection

M20×1.5 female thread

Three-lines screening cable

IP grade IP65
Explosion-proof grade Exia II CT6Ga,EXd IICT6Gb



Product details

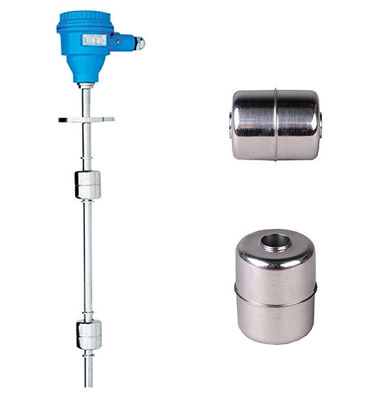

Water And Oil Tank Float Ball Level Gauge Polypropylene Anti Corrosion 2

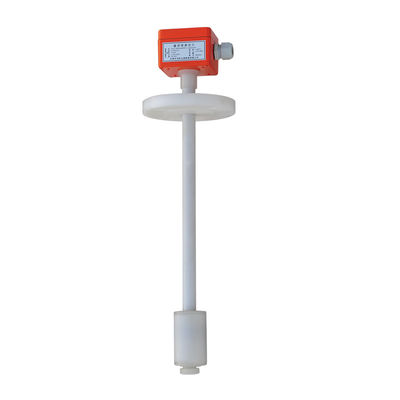

Water And Oil Tank Float Ball Level Gauge Polypropylene Anti Corrosion 3
