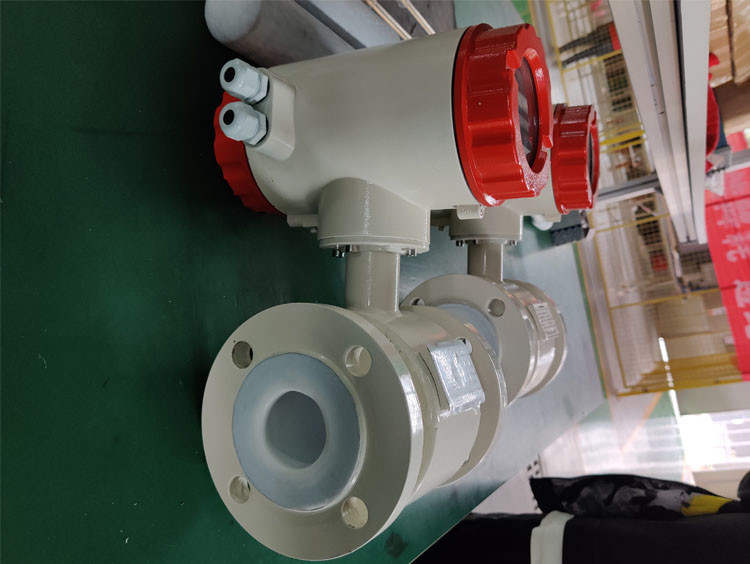

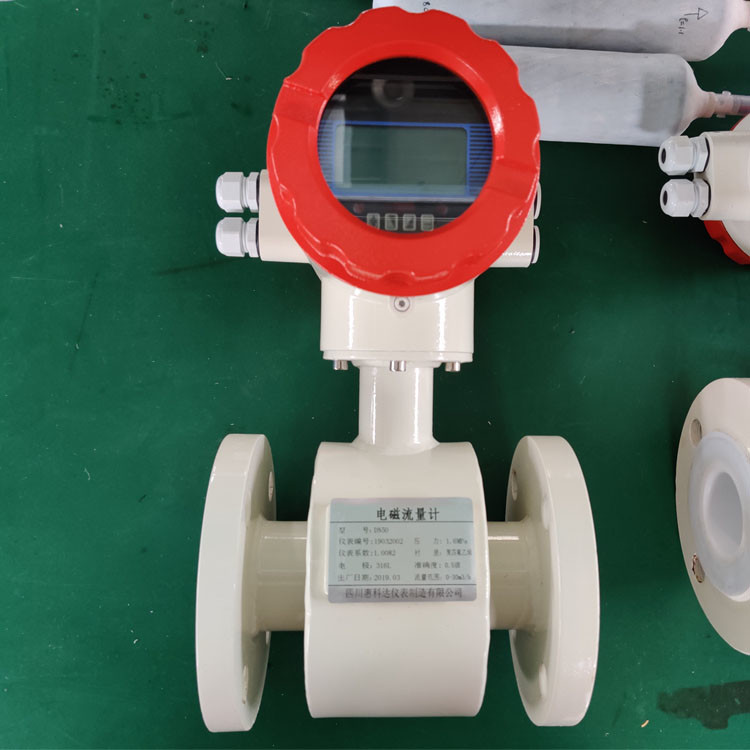

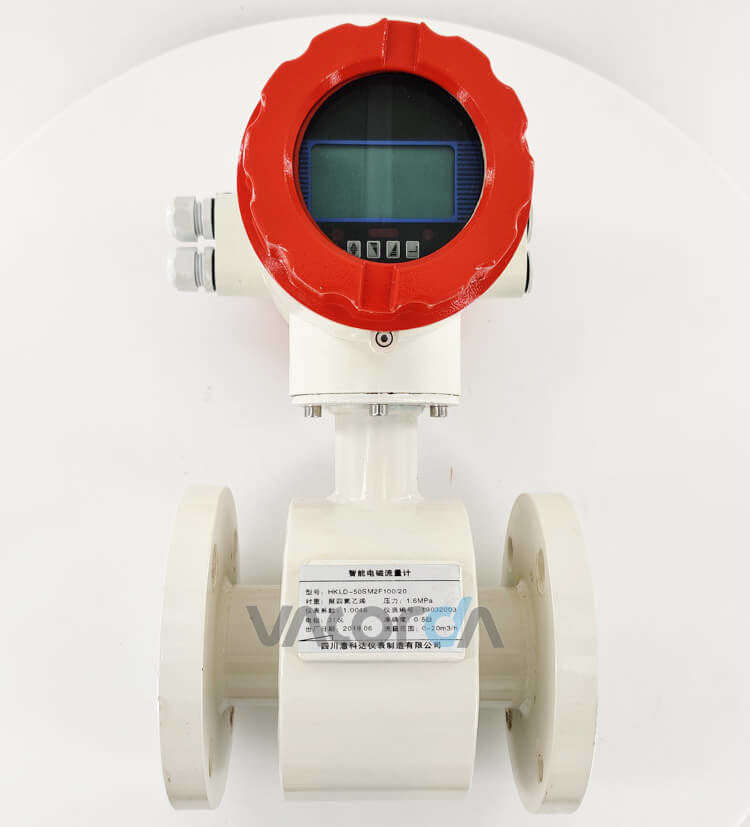

Flow Rate LCD Display Fischer Porter Electromagnetic Flow Meter
Application:
Due to its unique advantages, it is widely used in the fields of petroleum, chemical industry, steel, light industry, sewage processing, environmental protection, water conservancy project and pharmacy to measure the volume flow of the conducted liquid mediums, such as acid, alkali, salt solution and so on.
Features:
1. High Definition LCD display with backlight.
2. Full-digital processing, high noise resistance and reliable measurement
3. 16 bits embedded microprocessor
4. High precision 0.5%F.S measurement is not affected by fluid density, viscosity, temperature, pressure the influence for the conductivity changes.
5. After power outage, daily total, monthly total data recording function,To calculate the leakage flow automatically ,Circular recording 2050 dates,Free on-site maintenance
6. Double layer protection technique:360 ° spray paint, Polishing technology wear-resisting, anti-rust durable
7. Header board:Using a synthetic version, the integration is high, antioxidant, long life
8. 3 electrode: Ground electrode structure, eliminate the influence of electrical noise, provide measurement precision effectively
Technical parameters:
|
PTFE Lined Pipe |
10, 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500, 600 |
|
Rubber Lined Pipe |
40, 50, 65, 80, 100, 125, 150, 200, 300, 350, 400, 500, 600, 800, 1000, 1200, note: special specifications can be customized |
|
Flow direction |
positive and negative, net flows Turndown |
|
Measuring range ratio |
150:1 |
|
Repeatability error |
+/-0.1% |
|
Accuracy |
piped: 0.5 class, 1.0 class |
|
Measured medium temperature |
Common rubber lining: -20~+60 ° c |
|
High temperature rubber lining: -20~+90 ° c |
|
|
PTFE lining: -30~+100 ° c |
|
|
High temperature vinyl lining: -30~+180 ° c |
|
|
Rated working pressure |
pipeline: DN10~DN65: ≤ 2.5MPa;DN80~DN150: ≤ 1.6MPa; DN200~DN1200: ≤ 1.0MPa |
|
Flow measuring range |
flow measuring range corresponding to flow rate range is 0.3~15m/s |
|
Measured fluid conductivity |
5μs/cm (Most with water as the composition of the medium, its conductivity in the range 200~800 Mu s/cm, optional solenoid flow) |
|
Output |
Current:4~20mADC (isolation), pulse frequency 0~1kHz, OCT photoelectric isolation, external power ≤ 35VDC, breakover, collector Max 25mA |
|
Load resistance |
< 600 Ω |
|
Electrode material |
316L, titanium (Ti), tantalum (Ta), Hastelloy, (h), Platinum (Pt) or other special electrode materials |
|
Protection grade |
standard: IP65; IP68 |
|
Working power supply |
85~265VAC 45~63HZ |
|
Straight pipe length |
pipe: ≥ 5DN in the upper reaches, downstream of greater than or equal to 2DN |
|
Connections |
flow meter connected to the piping is used between flanges, flange connection dimensions comply with GB9119-88 requirements. |
|
Explosion-proof mark |
mdllBT4 |
|
environment temperature |
-25 ° c ~=60 ° c |
|
Relative humidity |
5%~95% |
|
Total power consumption |
<20W |
