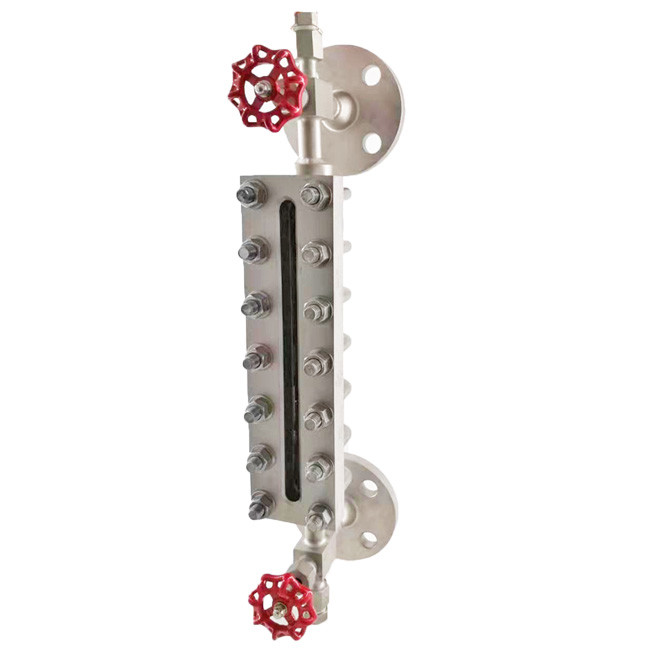

High Pressure Liquid Tank Tubular Level 250 Degree Boiler Gauge Glass

1 Piece/Pieces
MOQ
$200.00 - $300.00 / Pieces
Price
High Pressure Liquid Tank Tubular Level 250 Degree Boiler Gauge Glass
Features Gallery Product Description Request A Quote
Features
Specifications
Material: SS304, 316L, Carbon Steel
Warranty: 18 Months
Product Name: Tubular Level Gauges For High Pressure Liquid Tank
Connection: Flange DN20(3/4")
Work Temperature: 0-250 Degree
Pressure: 2.5,6.3,4.0,0.1,0.6
Measuring Range: 0~300-0~2000mm
Recommed Length: 550,850,1150,1450,1750mm
Port: Shenzhen/shanghai
High Light:

250 degree Boiler Gauge Glass

,

SS304 Boiler Gauge Glass

,

DN20 Boiler Gauge Glass

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: vacorda
Certification: ISO9001:2000/CE
Model Number: HKD
Payment & Shipping Terms
Packaging Details: wooden box or as your request
Supply Ability: 100 Piece/Pieces per Week
Product Description

High Pressure Liquid Tank Tubular Level 250 Degree Boiler Gauge Glass

Product Description

Glass plate level gauge is divided into three kinds: Transparent type, reflection type and sight glass type. The level gauge is mainly composed by level gauge’s body, upper valve (gas valve), lower valve (liquid valve), drain valve, insurance steel ball and so on. When the glass plate have some cracks or be damaged, the insurance steel ball will automatically stop the side valve of gas and liquid to avoid or reduce flowing. So the worker can cut off the bottom valve to handle it. This series product is stable, sealed and reliable, simple installation, which is ideal instrument for detecting for liquid level in all kinds of containers with middle or low pressure.Connecting the upper and lower flanges of this level gauge with the upper and lower flanges of the container to form a permeator, then the height of liquid can be directly seen.

Structure

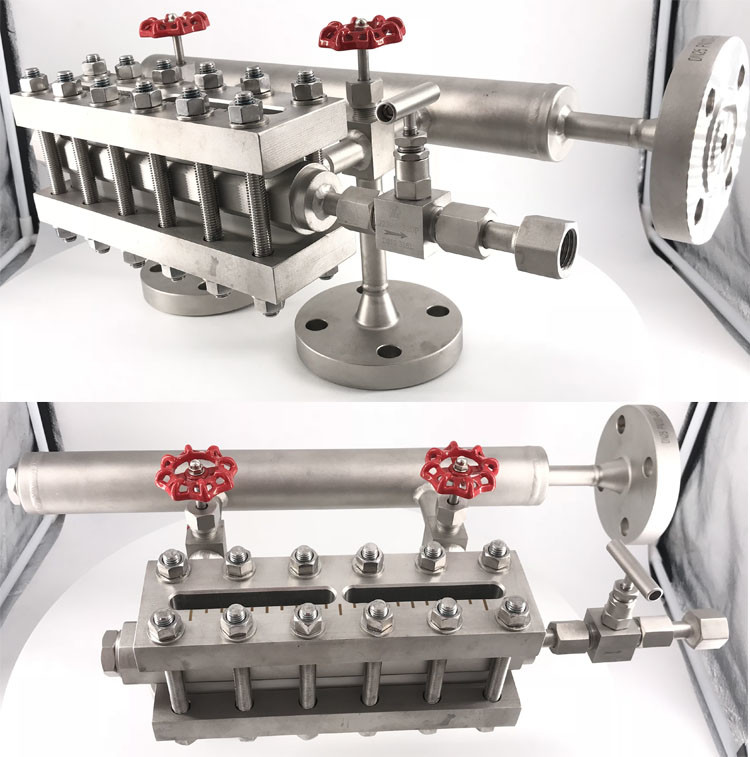

High Pressure Liquid Tank Tubular Level 250 Degree Boiler Gauge Glass 0High Pressure Liquid Tank Tubular Level 250 Degree Boiler Gauge Glass 1

The glass plate type liquid level meter is designed based on the principle of the communicator. The liquid passage formed by the glass plate and the liquid level gauge body is connected to the measured container through a flange or a taper pipe thread to form a communicator, which is observed through the glass plate. The liquid level is the same as the liquid level in the container, that is, the liquid level.



Technical parameters

Nominal length (center to center ): 0~300-0~2000mm
Recommended length: 550, 850, 1150, 1450, 1750mm
Material: Carbon steel, 304, 316L
Nominal pressure (MPa): Transparent type: 2.5, 6.3; Reflection-type: 4.0; Sight glass type: 0.1, 0.6
Working temperature: 0~250
Connection flange: DN20 (3/4”); A,B type---HG20592; C type---HG20615-09
Heating steam cube connector: RC1/4 internal thread
Heating steam pressure: 1.0MPa
Steel ball closing pressure: 0.3MPa
Detailed Images



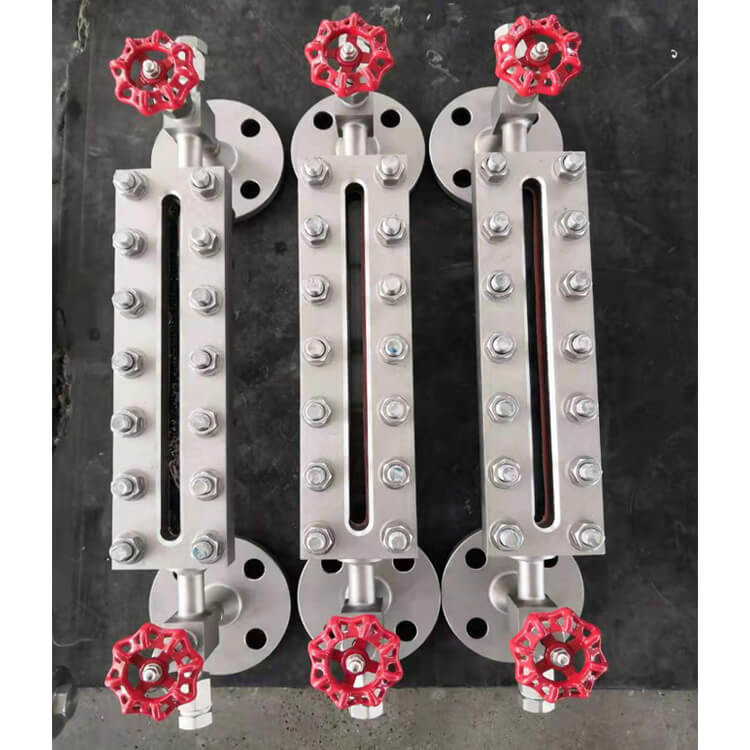

High Pressure Liquid Tank Tubular Level 250 Degree Boiler Gauge Glass 2

High Pressure Liquid Tank Tubular Level 250 Degree Boiler Gauge Glass 3

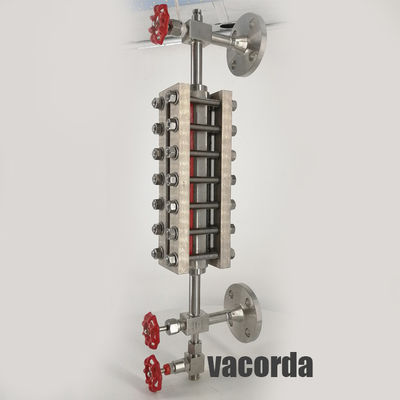

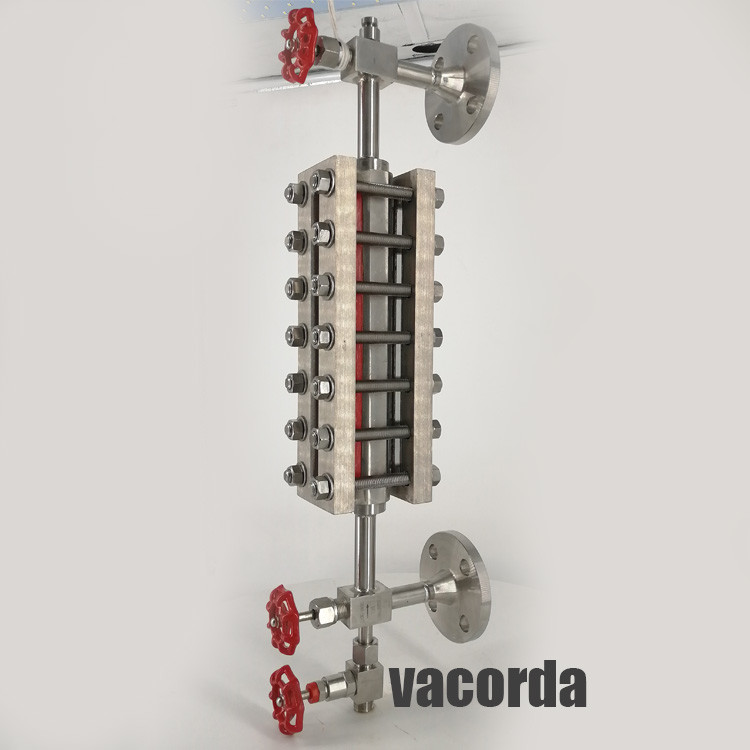

The needle valve at both ends of the level gauge not only functions as a stop valve, but also has the function of a check valve in the internal steel ball. When the liquid level gauge accidentally breaks and leaks, the steel ball can automatically close the liquid passage under the action of the medium pressure. To prevent the large outflow of liquid for safety protection. The level gauge can change the material of the part or add some ancillary parts to achieve anti-corrosion, thermal insulation, anti-frost, lighting and other functions. Widely used in petroleum, chemical industry, electric power, metallurgy, medicine and other fields.

High Pressure Liquid Tank Tubular Level 250 Degree Boiler Gauge Glass 4High Pressure Liquid Tank Tubular Level 250 Degree Boiler Gauge Glass 5

Workshop and Processing

High Pressure Liquid Tank Tubular Level 250 Degree Boiler Gauge Glass 6

Certificate

High Pressure Liquid Tank Tubular Level 250 Degree Boiler Gauge Glass 7



Tips for installation

1. During installation, in order to ensure the function of automatic sealing, the liquid in the container must have a certain pressure, at least more than 0.2MPa. When the upper and lower valves are opened, the valve stem quitting cannot be less than four turns. When the steel ball seals the door, it does not hit the top of the valve stem to avoid damage.

2. In the process of transportation and unpacking, we must be careful not to encounter something harder to avoid breaking the glass plate.

3. Also pay attention to the specifications and models, cannot install the wrong gauge level gauge, some media on the leveler is limited, such as some of the glass or steel plate corrosive media cannot be used.

4. Other maintenance clean, wash and install with the glass tube level gauge is similar
