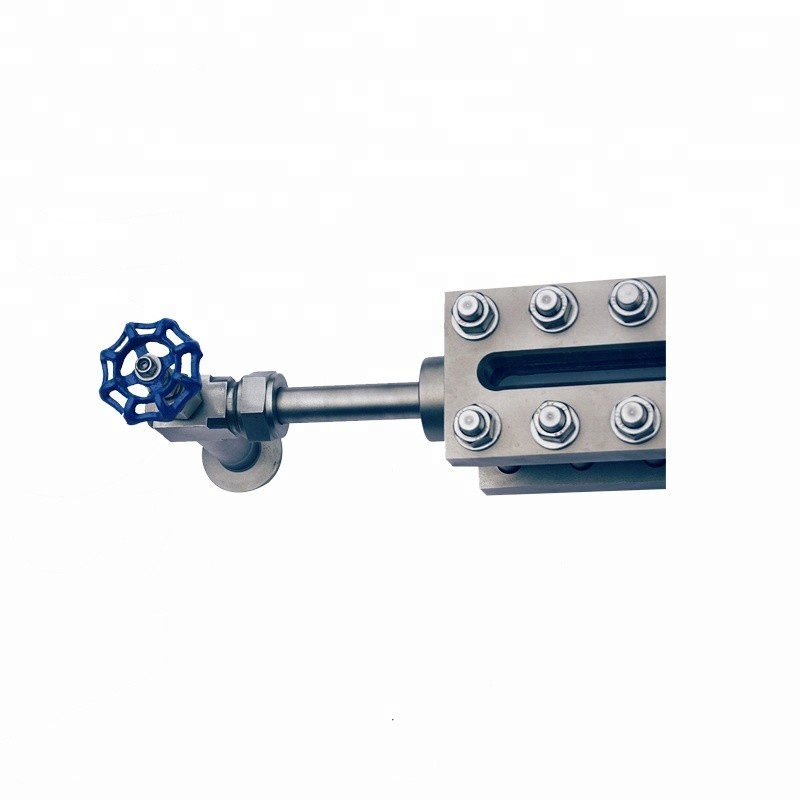

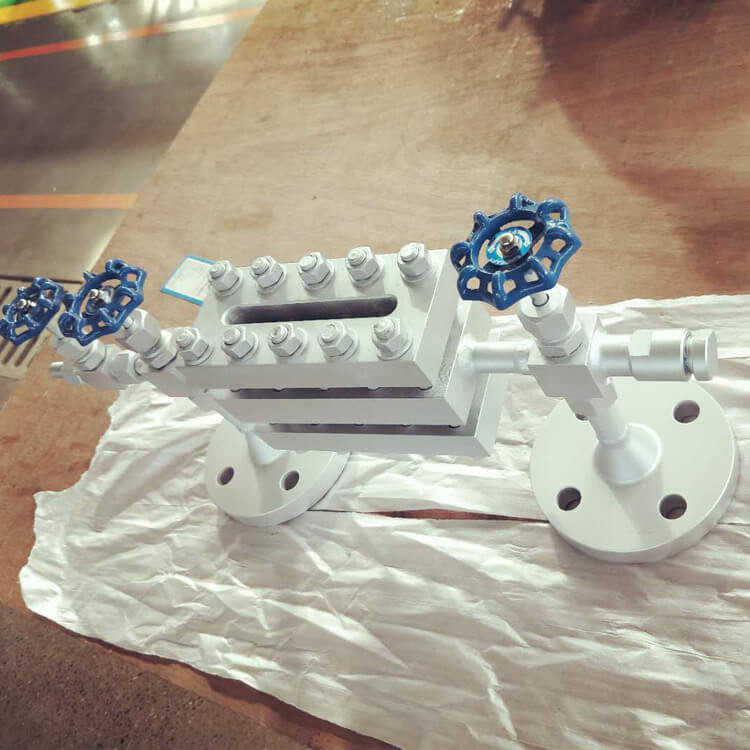

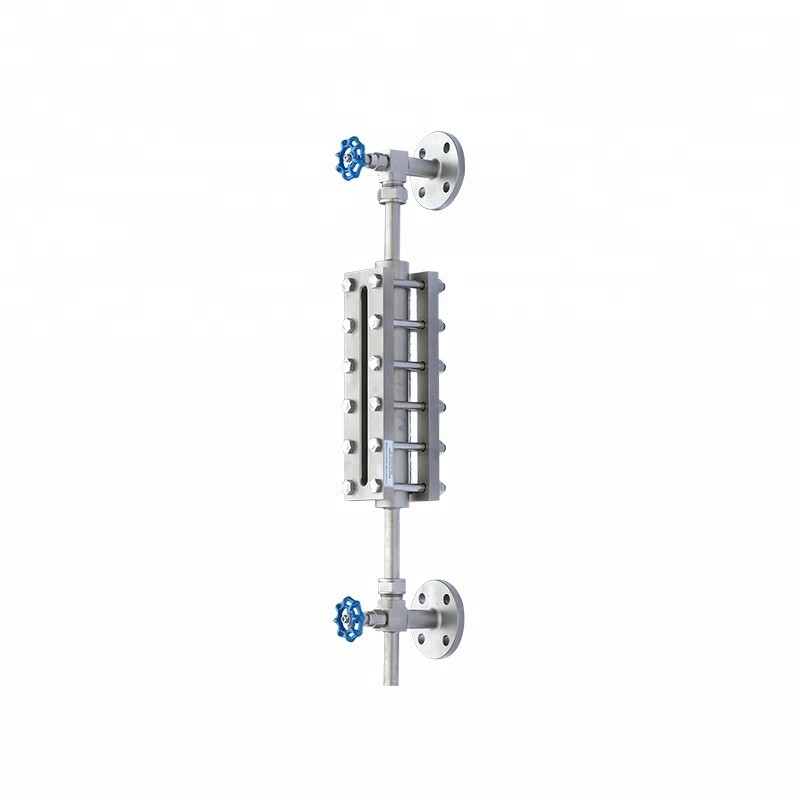

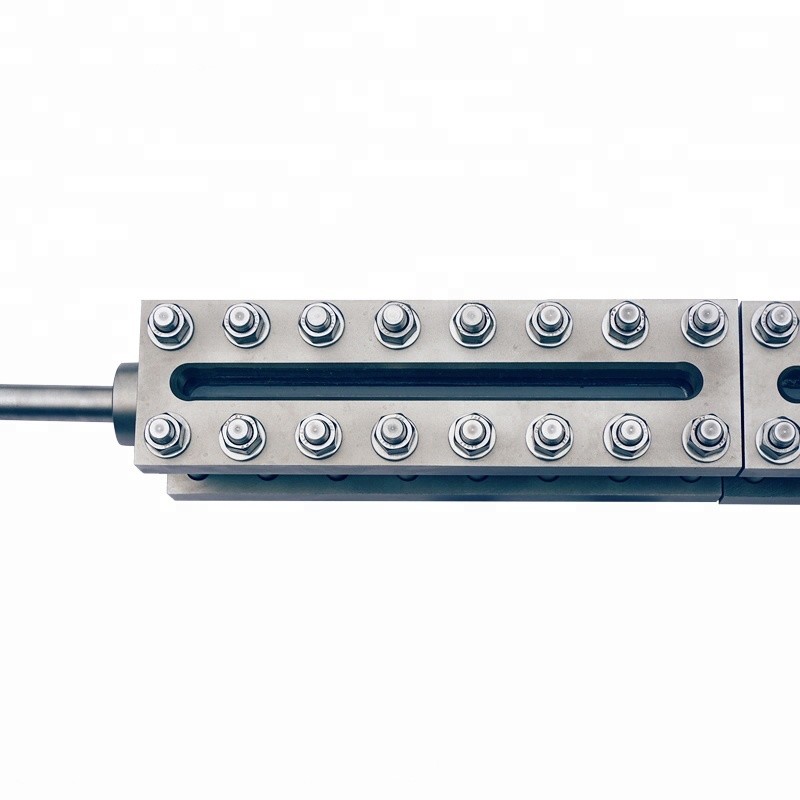

18 Months Warranty 550mm Reflex Gauge Glass For Liquid Tower
Working principle:
The glass plate type liquid level gauge is designed based on the principle of the connecting device. The liquid path composed of the glass plate and the main body of the liquid level gauge is connected to the container to be measured through the flange or taper pipe thread of the connecting pipe to form the communicating device. The liquid level is the same as the liquid level in the container, ie the liquid level height.
The needle valves at both ends of the liquid level gauge not only function as a shut-off valve, but the internal steel ball has the function of a check valve. When the liquid level gauge accidentally breaks and leaks, the steel ball can automatically close the liquid channel under the action of the medium pressure. Prevent large amounts of liquid from flowing out and play a role in safety protection. The liquid level gauge can achieve the functions of anti-corrosion, thermal insulation, anti-frost, and lighting by changing the material of the parts or adding some auxiliary components. Widely used in petroleum, chemical industry, electric power, gold, medicine and other fields
The glass plate type liquid level meter is designed based on the principle of the communicator. The liquid passage formed by the glass plate and the liquid level gauge body is connected to the measured container through a flange or a taper pipe thread to form a communicator, which is observed through the glass plate. The liquid level is the same as the liquid level in the container, that is, the liquid level.
Technical parameters
| Nominal length (center to center ): | 0~300-0~2000mm |
| Recommended length: | 550, 850, 1150, 1450, 1750mm |
| Material: | Carbon steel, 304, 316L |
| Nominal pressure (MPa): | Transparent type: 2.5, 6.3; Reflection-type: 4.0; Sight glass type: 0.1, 0.6 |
| Working temperature: | 0~250℃ |
| Connection flange: | DN20 (3/4”); A,B type---HG20592; C type---HG20615-09 |
| Heating steam cube connector: | RC1/4 internal thread |
| Heating steam pressure: | ≤1.0MPa |
| Steel ball closing pressure: | ≥0.3MPa |
