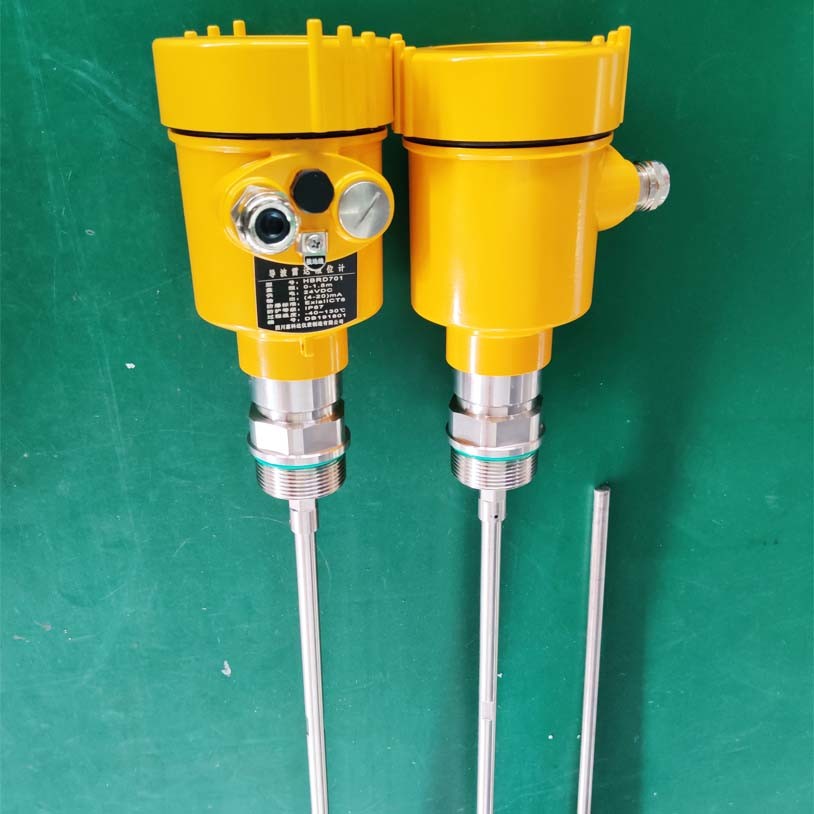

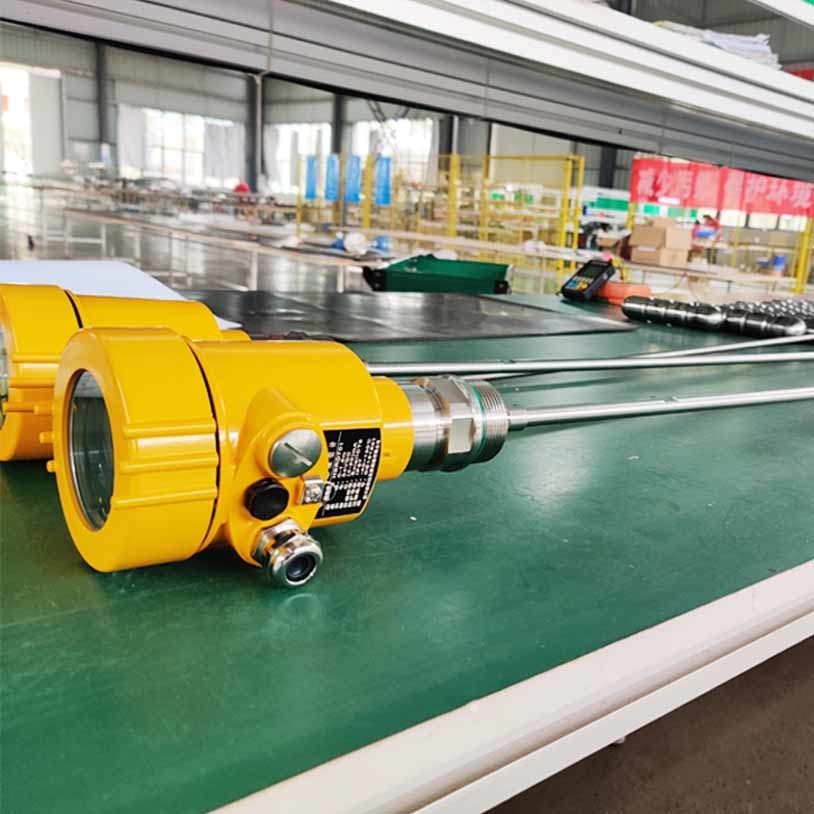

26g Intelligent Guided Wave Sensor Radar Level Gauge Measurement Liquid Control
Why choose us:
1. 23 years of instrumentation equipment production experience
2. Product support OEM / ODM, export to more than 100 countries
3. The company area 20,000 square meters, and 150+ orders per month
4. Provide email, skype, whatsapp provide 24-hour one-on-one technical support service online
26g Intelligent Guided Wave Sensor Radar Level Gauge Measurement Liquid Control
Product Description

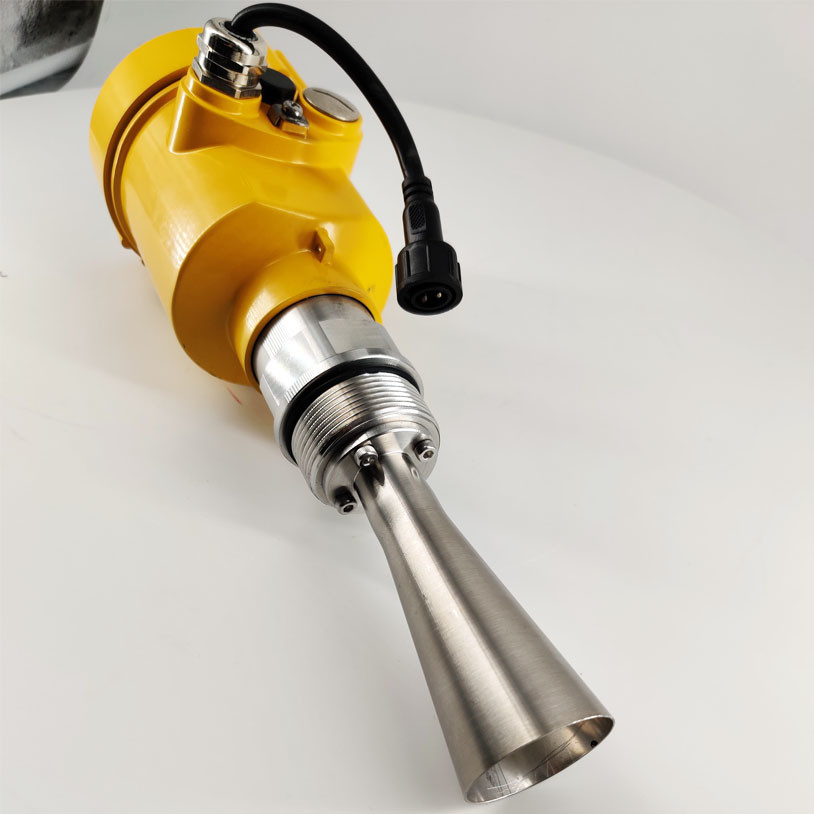

Radar level measurement with top-down installation offers perfect application fit in all industries. Non-contact radar with simple commissioning, trouble-free operation saves time and money. For usage in a wide range of applications - be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.
Radar level measurement is a safe solution even under extreme process conditions (pressure, temperature) and vapors. it can also be used in hygienic applications for non-contact level measurement. Radar level merter are available for different industries like for water/wastewater, the food industry, life sciences or the process industry. Various antenna versions for every kind of radar applications are available.
Radar measurement: Measuring Principle
it works with high-frequency radar pulses which are emitted by an antenna and reflected from the medium surface due to a change of the dc value (relative dielectric constant). The Time-of-Flight of the reflected radar pulse is directly proportional to the distance traveled. If the tank geometry is known, the level can be calculated from this variable.
Features:
1. Non-contact, maintenance-free measurement
2. Unaffected by medium properties like density and conductivity, in bulk solids also unaffected by filling noise and dust
3. Freely adjustable measuring range
4. For high temperatures up to +450°C/+842°F
♦903
Suitable for Medium |
Solid material, Strong dust,easy to crystallize, condensation occasion |
|
Measuring Range | 70m | |
Frequency |
26GHz |
|
Accuracy |
±15mm |
|
Process Temperature |
-40℃~130℃(Standard type) |
|
Process pressure | -0.1~4.0 MPa (Flat flange) -0.1~0.3MPa (Universal flange) |
|
Signal output |
4~20mA /HART (2-wire / 4-wire) RS485/ Modbus |
|
Power Source |
Two-wire (DC24V) Four-wire(DC24V/AC220V) |
|
Connection |
Universal Flange |
|
Protection Grade |
IP67 |
|
Explosion-proof Grade |
Exia IIC T6 Ga/Exd IIC T6 Gb |
♦904
Suitable for Medium |
Solid material, Strong dust,easy to crystallize, condensation occasion |
|
Measuring Range | 80m | |
Frequency |
26GHz |
|
Accuracy |
±15mm |
|
Process Temperature |
-40℃~130℃(Standard type) |
|
Process pressure | -0.1~0.3MPa | |
Signal output |
4~20mA /HART (2-wire / 4-wire) RS485/ Modbus |
|
Power Source |
Two-wire (DC24V) Four-wire(DC24V/AC220V) |
|
Connection |
Thread, Universal Flange |
|
Protection Grade |
IP67 |
|
Explosion-proof Grade |
Exia IIC T6 Ga/Exd IIC T6 Gb |
♦906
Suitable for Medium |
Hygienic liquid storage, Corrosive container |
|
Measuring Range | 20m | |
Frequency |
26GHz |
|
Accuracy |
±3mm |
|
Process Temperature |
-40℃ ~ 130℃ |
|
Process pressure | -0.1~4.0MPa | |
Signal output |
4~20mA /HART (2-wire / 4-wire) RS485/ Modbus |
|
Power Source |
Two-wire (DC24V) Four-wire(DC24V/AC220V) |
|
Connection |
Flange |
|
Protection Grade |
IP67 |
|
Explosion-proof Grade |
Exia IIC T6 Ga/Exd IIC T6 Gb |
