Stable Silo Cement Non Contact Type Radar Level Transmitter 1-40bar Process Pressure

1 Set/Sets
MOQ
Negotiable
Price
Stable Silo Cement Non Contact Type Radar Level Transmitter 1-40bar Process Pressure
Features Gallery Product Description Request A Quote
Features
Specifications
Measuring Range: 0-70 Meters
Frequency: 6.8 GHZ, 26GHz
Explosion Proof Grade: Exia LlC T6 Gb
Output: 4-20mA , HART,rs232,rs485
Repeatability: +/-3%
Process Pressure: -1 - 40bar
Process Temp: -40-150C
Process Connection: Thread, Flange (optional)
Material: Metal Or Anti-corrosion Material
Precision: <0.1%
Port: Shanghai/Shenzhen
High Light:

non contact type radar level transmitter

,

guided wave radar type level transmitter

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Certification: CE/TUV/ISO9001/SGS
Model Number: HKDRD
Payment & Shipping Terms
Packaging Details: carton
Supply Ability: 500 Set/Sets per Month
Product Description

Stable Silo Cement Non Contact Type Radar Level Transmitter 1-40bar Process Pressure

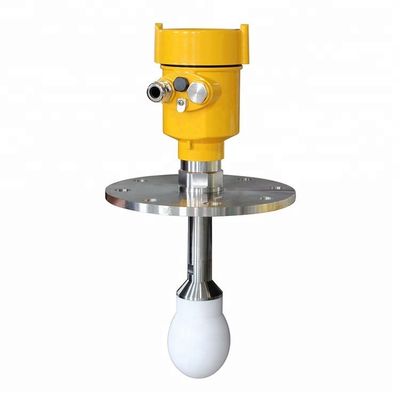

Stable Silo Cement Non Contact Type Radar Level Transmitter 1-40bar Process Pressure 0



Product Description

Radar Level Meter can measure the distance, level and volume of liquid, sticky,solid.Application in electric power,metallurgy, petroleum, shemical, food, medication, water, civic industry. They can work in high tempreture, high pressure, corrosion, dusty environment.



Product parameters:

Measuring range 0~30 m
Process connection thread, flange
Medium temperature -40 °C ~ 150 °C
Process pressure 0.1 ~ 4.0MPa
Accuracy ± 3mm
Protection grade IP67
Frequency range 6GHz, 26GHz
Explosion-proof grade Exia C T6 GaExib CT6 Gb
Signal output 4-20mA/HART (two / four), RS485/ Mod bus
Type guided wave radar, intelligent radar, 26 GH high frequency radar



Detailed Images

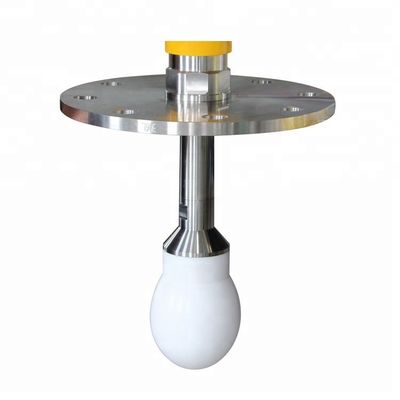

Stable Silo Cement Non Contact Type Radar Level Transmitter 1-40bar Process Pressure 1

Sichuan VACORDA Instruments Manufacturing Co., Ltd. is a professional production-manufacturing enterprise specialized in designing, producing and marketing of instruments and apparatuses. Our company has been established for 21 years since 1997 to grow up to be a team of high-quality, united, hard-working and truth-seeking characters. Solid foundation has been established.

Stable Silo Cement Non Contact Type Radar Level Transmitter 1-40bar Process Pressure 2Stable Silo Cement Non Contact Type Radar Level Transmitter 1-40bar Process Pressure 3

According to different measurement principles, radar level gauges can be divided into two types. It is a radar level gauge that controls the liquid level, and its accuracy is generally about 10mm; the other is a radar level gauge, which is used for precise measurement and settlement, with an accuracy of 1mm. Structurally, it is divided into rod antenna, horn antenna and cable antenna, debugging, installing and using the analog signal output by the radar level gauge. The digital signal is superimposed on it by 4~20mADC to realize the compatibility of analog signal and digital signal, conforming to HART protocol. It can provide users with more attractive solutions, especially suitable for large fluctuations, condensation, suspension, viscous slurries, dirty media, and corrosive liquid level measurement. It has a continuous frequency self-calibration function to ensure stable measurement accuracy; it uses HART protocol for digital communication, and uses communication equipment or portable handheld devices to process liquid level variables; the output signal is an analog signal and a HART digital signal superimposed. Using the 4-20mAhar manual operator, the output signal can be divided into liquid level, calculated volume or standard volume; all configuration information and programs are stored in non-erasable memory. When the power is interrupted, all data can be restored; the frequency is continuously self-calibrated to ensure the accuracy of the level gauge.
