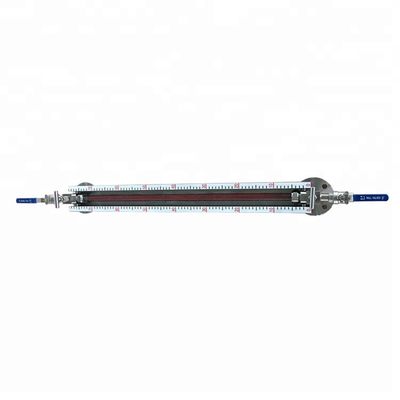

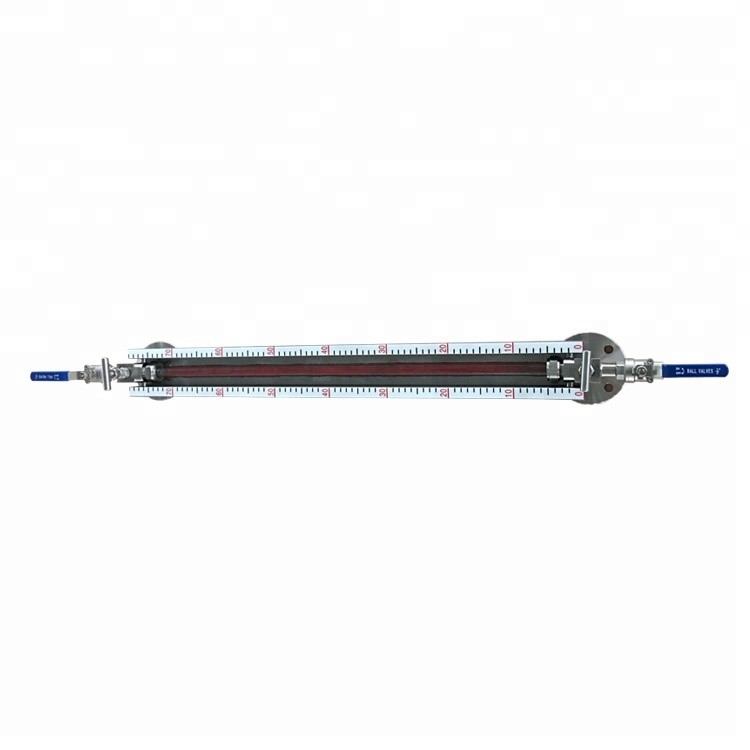

Glass Tube Level Gauge liquid level gauge glass For Oil Diesel

1 Unit/Units
Glass Tube Level Gauge liquid level gauge glass For Oil Diesel
Features Gallery Product Description Request A Quote
Material: 304,316 L, Carbon Steel
Pressure: 1.6MPa
Temperature: 0~100 °C
Measure Range: 0~1400mm
Protection Class: IP65
Product Name: Glass Tube Level Gauge For Oil Diesel
Working Pressure: 1.6MPa
Warranty: 18 Months
Process Flange: DN20 PN16
Port: Shanghai/shenzhen
High Light:

sight glass level gauge


reflex glass level gauge

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: vacorda
Model Number: HG5
Payment & Shipping Terms
Packaging Details: Wooden box (glass tube level meter)
Supply Ability: 1000 Piece/Pieces per Month
Product Description

Glass Tube Level Gauge Liquid Level Gauge Glass For Oil Diesel

Product Description
HG5 sight glass level gauge can be read directly, featured with simple structure, visual display and low cost. It can be widely applied to on-site measurement for level of tanks and other containers.HG5 series sight glass level gauge is produced according to the standards of HG 5-227-80 and HG21592-95.

Product Parameters

(1)Recommended center distance:

500, 600, 800, 1000, 1200, 1400mm,


carbon steel, 1Cr18Ni9Ti,304

(3)Working temperature:


(4)Working pressure:


(5)Heating steam interface:

ZG1/4" male thread

(6)Heating steam pressure: ≤0.6MPa
(7)Electric heating: self-limiting temperature heating

(8)Process flange:

DN20 PN1.6

(9)Measuring range:


(10)Needle valve self-closing pressure:

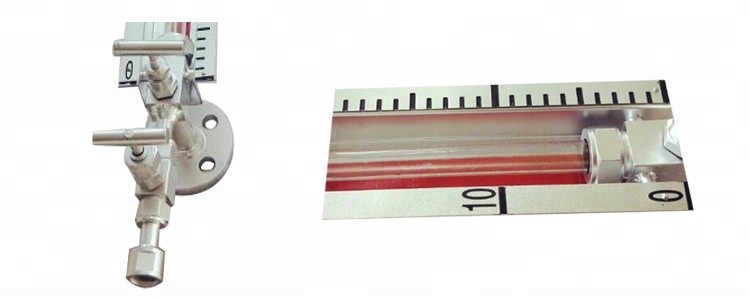

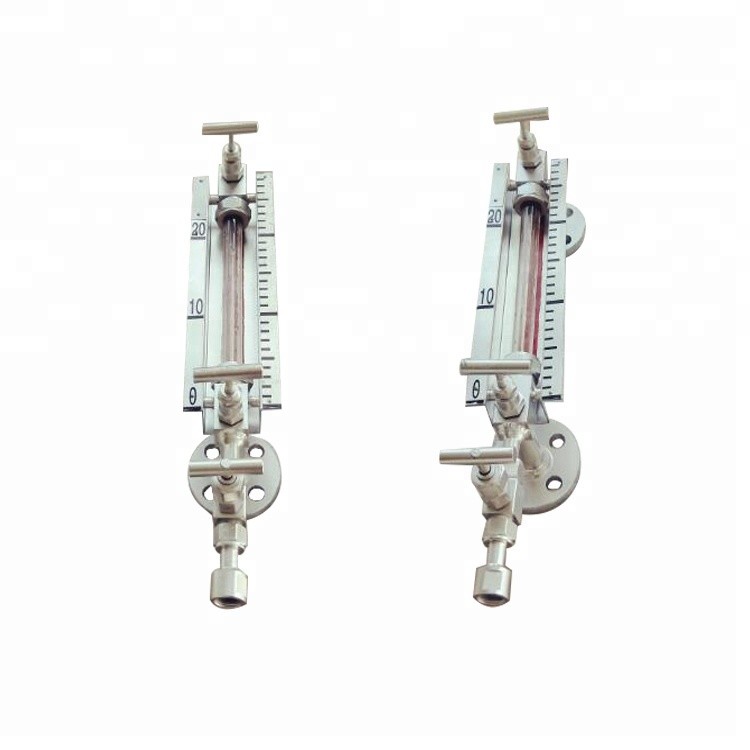

glass tube level gauge details


Workshop and Procesing

Glass Tube Level Gauge liquid level gauge glass For Oil Diesel 1


Glass Tube Level Gauge liquid level gauge glass For Oil Diesel 2


Working principle: It consists of two parts: a magnetic indicator and a float. The magnetic indicator is composed of a red and white magnetic flipping column or a magnetic flipping card and a guard plate equipped with a small magnetic steel. When the floating ball equipped with magnetic steel moves up and down with the liquid, the beam magnetic field of the permanent magnet in the floating ball turns the magnetic turning column 180°. When the liquid level rises, the turning column turns from white to red. It turns from red to white to indicate the height of the liquid level. (The color of the flop and the flop can be different, such as blue and red or black and white, etc.). When it is necessary to transmit output, install a reed switch or magnetic sensor transmitter parallel to the magnetic indicator to realize the remote transmission of 4-20mA or 0-10mA current signal; equipped with a liquid level alarm switch, and The upper and lower limits of the liquid level can be alarmed.

Feature: In addition to on-site instructions, it can also be equipped with remote transmitters, alarm switches, and control switches with complete detection functions. The indication is novel, the reading is intuitive and eye-catching. The indicating mechanism is completely isolated from the measured medium, so it has good sealing, high reliability and safe use. The structure is simple, the installation is convenient, and the maintenance cost is low. Corrosion resistance, no power supply, explosion-proof. According to the different installation positions in the container, there are two types of side mounting and top mounting.
