Glass Tube Level Gauge For Boiler

1 Piece/Pieces
Glass Tube Level Gauge For Boiler
Features Gallery Product Description Request A Quote
Material: 304,316 L, 1Cr18Ni9Ti, 0Cr18Ni9, 00Cr17Ni14Mo2, 321, Titanium Alloy
Pressure: 1.6MPa
Temperature: ≤100℃
Color: Red/white Flap Indicator
Installation Form: Side Mounted
Protection Class: IP65
Medium Density: 0.45g/cm3
Center-center Distance: 0~1400mm
Warranty: 18 Months
Needle Valve Self-closing Pressure: >=0.3MPa
Port: Shanghai /shenzhen
High Light:

sight glass level gauge


reflex glass level gauge

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Model Number: Level meter
Payment & Shipping Terms
Packaging Details: Wooden box (glass tube level meter)
Supply Ability: 1000 Piece/Pieces per Month
Product Description

The glass plate type liquid level meter is designed based on the principle of the communicator. The liquid passage formed by the glass plate and the liquid level gauge body is connected to the measured container through a flange or a taper pipe thread to form a communicator, which is observed through the glass plate. The liquid level is the same as the liquid level in the container, that is, the liquid level.


Product Parameters

Nominal length (center to center ):
Recommended length:
550, 850, 1150, 1450, 1750mm
Carbon steel, 304, 316L
Working temperature:
Heating steam pressure:
Steel ball closing pressure:

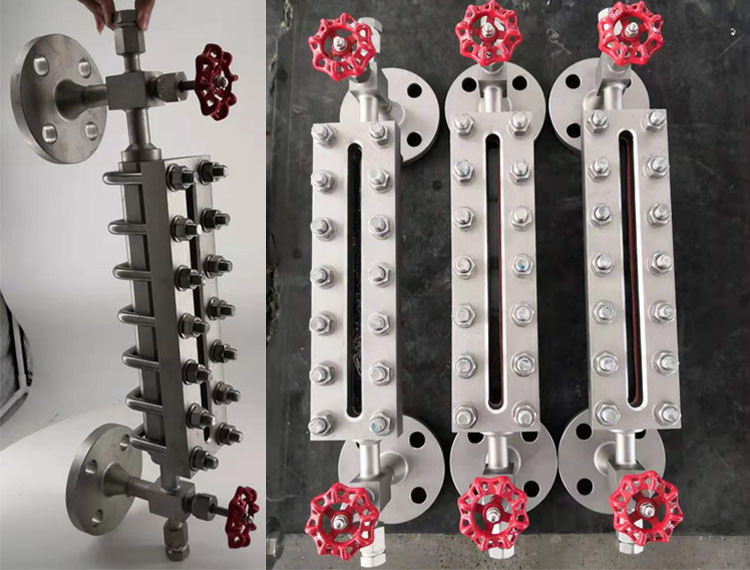

Glass Tube Level Gauge For Boiler 0

The needle valve at both ends of the level gauge not only functions as a stop valve, but also has the function of a check valve in the internal steel ball. When the liquid level gauge accidentally breaks and leaks, the steel ball can automatically close the liquid passage under the action of the medium pressure. To prevent the large outflow of liquid for safety protection. The level gauge can change the material of the part or add some ancillary parts to achieve anti-corrosion, thermal insulation, anti-frost, lighting and other functions. Widely used in petroleum, chemical industry, electric power, metallurgy, medicine and other fields.

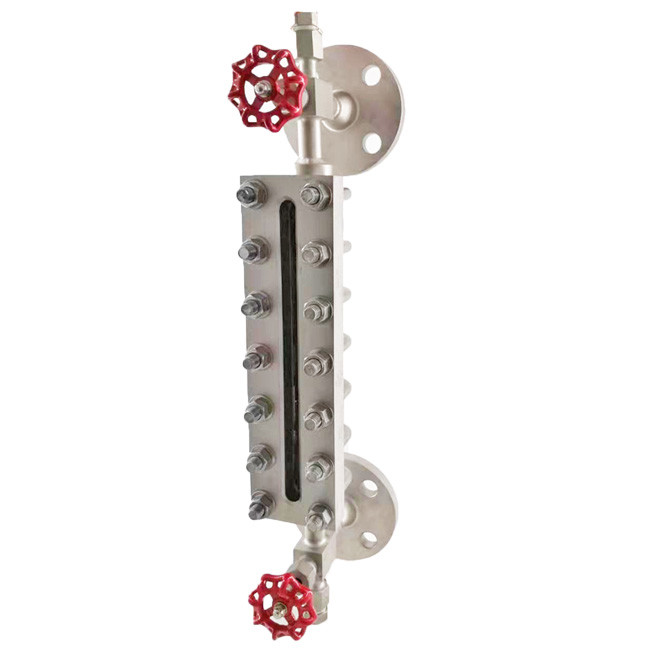

Glass Tube Level Gauge For Boiler 1

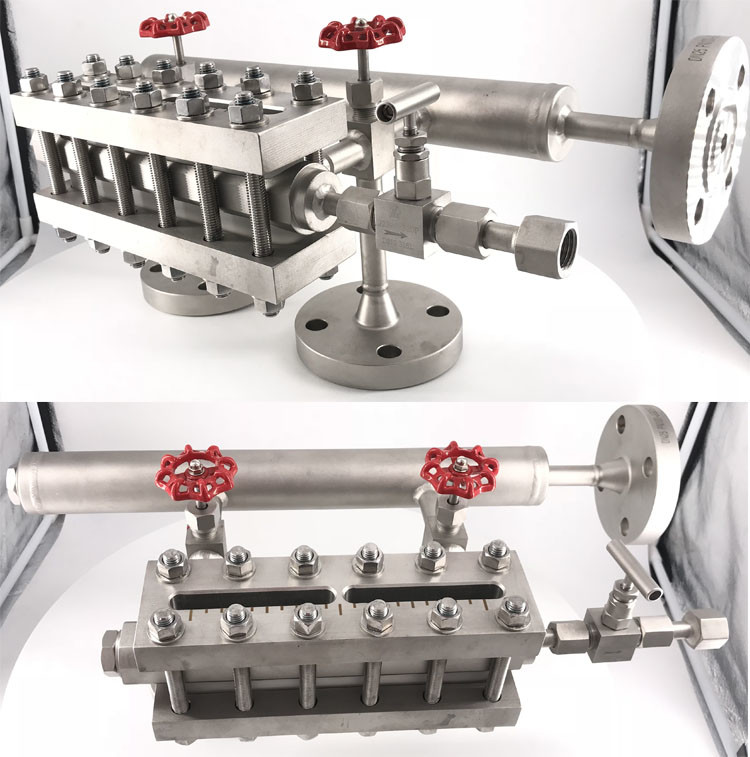

Glass Tube Level Gauge For Boiler 2

Tips for installation

1. During installation, in order to ensure the function of automatic sealing, the liquid in the container must have a certain pressure, at least more than 0.2MPa. When the upper and lower valves are opened, the valve stem quitting cannot be less than four turns. When the steel ball seals the door, it does not hit the top of the valve stem to avoid damage.

2. In the process of transportation and unpacking, we must be careful not to encounter something harder to avoid breaking the glass plate.

3. Also pay attention to the specifications and models, cannot install the wrong gauge level gauge, some media on the leveler is limited, such as some of the glass or steel plate corrosive media cannot be used.

4. Other maintenance clean, wash and install with the glass tube level gauge is similar.

Glass Tube Level Gauge For Boiler 3Glass Tube Level Gauge For Boiler 4
