Glass Water Level Indicator 0-250 Degree Work Temperature With Reliable Sealing
1 Piece/Pieces
MOQ
Negotiable
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Certification: CE/ISO9001
Model Number: HKD
High Light:

tank sight glass level indicators

,

reflex glass level gauge

Payment & Shipping Terms
Packaging Details: wooden box.
Supply Ability: 100 Piece/Pieces per Week
Specifications
Material: SS304, 316L, Carbon Steel
Warranty: 18 Months
Lifetime: 3~5 Years
Connection: Flange DN20(3/4")
Work Temperature: 0-250 Degree
Pressure: 2.5,6.3,4.0,0.1,0.6
Measuring Range: 0~300-0~2000mm
Recommed Length: 550,850,1150,1450,1750mm
Port: Shenzhen/Shanghai
Product Description

Glass Water Level Indicator 0-250 Degree Work Temperature With Reliable Sealing

Glass Water Level Indicator 0-250 Degree Work Temperature With Reliable Sealing 0

Product Description

The glass plate type liquid level meter is designed based on the principle of the communicator. The liquid passage formed by the glass plate and the liquid level gauge body is connected to the measured container through a flange or a taper pipe thread to form a communicator, which is observed through the glass plate. The liquid level is the same as the liquid level in the container, that is, the liquid level.



Product Features:

▲The reading is clear, intuitive and reliable.

▲ simple structure, easy maintenance.

▲Durable, it is an ideal instrument for observation of the liquid level in various medium and low pressure vessels.



Structure

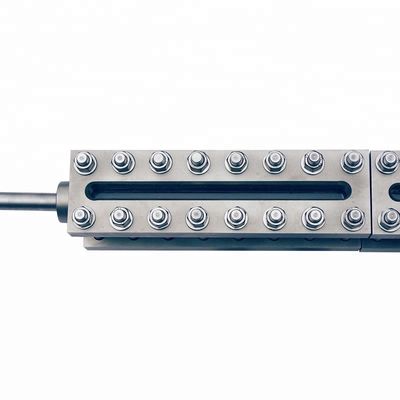

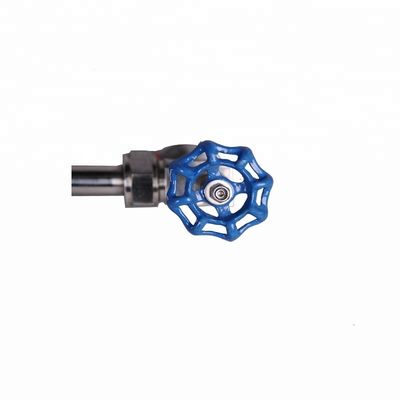

Glass Water Level Indicator 0-250 Degree Work Temperature With Reliable Sealing 1Glass Water Level Indicator 0-250 Degree Work Temperature With Reliable Sealing 2



Technical parameters

Nominal length (center to center ): 0~300-0~2000mm
Recommended length: 550, 850, 1150, 1450, 1750mm
Material: Carbon steel, 304, 316L
Nominal pressure (MPa): Transparent type: 2.5, 6.3; Reflection-type: 4.0; Sight glass type: 0.1, 0.6
Working temperature: 0~250℃
Connection flange: DN20 (3/4”); A,B type---HG20592; C type---HG20615-09
Heating steam cube connector: RC1/4 internal thread
Heating steam pressure: ≤1.0MPa
Steel ball closing pressure: ≥0.3MPa

The needle valve at both ends of the level gauge not only functions as a stop valve, but also has the function of a check valve in the internal steel ball. When the liquid level gauge accidentally breaks and leaks, the steel ball can automatically close the liquid passage under the action of the medium pressure. To prevent the large outflow of liquid for safety protection. The level gauge can change the material of the part or add some ancillary parts to achieve anti-corrosion, thermal insulation, anti-frost, lighting and other functions. Widely used in petroleum, chemical industry, electric power, metallurgy, medicine and other fields.

Detailed Images

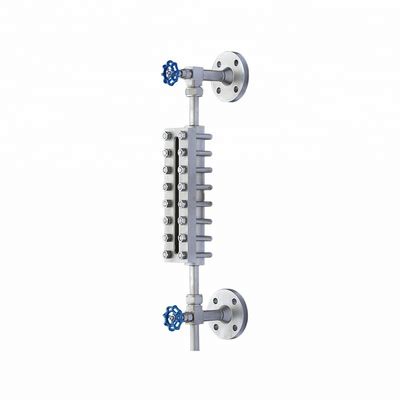

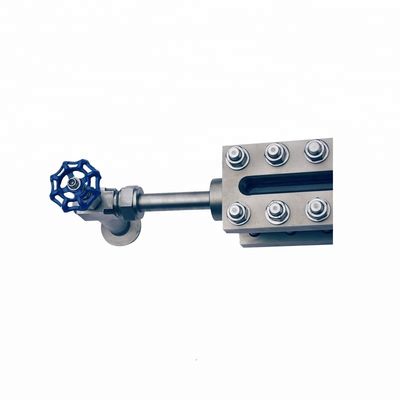

Glass Water Level Indicator 0-250 Degree Work Temperature With Reliable Sealing 3Glass Water Level Indicator 0-250 Degree Work Temperature With Reliable Sealing 4



Tips for installation

1. During installation, in order to ensure the function of automatic sealing, the liquid in the container must have a certain pressure, at least more than 0.2MPa. When the upper and lower valves are opened, the valve stem quitting cannot be less than four turns. When the steel ball seals the door, it does not hit the top of the valve stem to avoid damage.

2. In the process of transportation and unpacking, we must be careful not to encounter something harder to avoid breaking the glass plate.

3. Also pay attention to the specifications and models, cannot install the wrong gauge level gauge, some media on the leveler is limited, such as some of the glass or steel plate corrosive media cannot be used.

4. Other maintenance clean, wash and install with the glass tube level gauge is similar.
