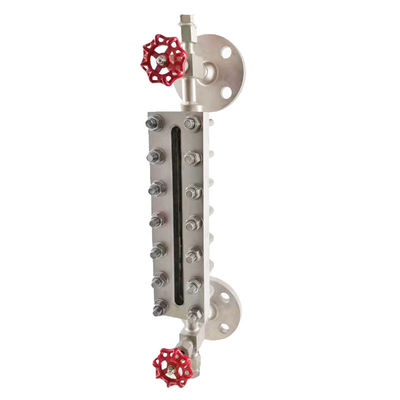

High Performance Boiler Sight Glass Level Gauge For Stainless Steel Tanks

1 Piece/Pieces
MOQ
Negotiable
Price
High Performance Boiler Sight Glass Level Gauge For Stainless Steel Tanks
Features Gallery Product Description Request A Quote
Features
Specifications
Material: SS304, 316L, Carbon Steel
Warranty: 18 Months
Lifetime: 3~5 Years
Connection: Flange DN20(3/4")
Work Temperature: 0-250 Degree
Pressure: 2.5,6.3,4.0,0.1,0.6
Measuring Range: 0~300-0~2000mm
Recommed Length: 550,850,1150,1450,1750mm
Port: Shanghai/Shenzhen
High Light:

sight glass level gauge

,

tank sight glass level indicators

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Certification: ISO9001/CE/TUV/From-E
Model Number: HKD
Payment & Shipping Terms
Packaging Details: wooden box
Supply Ability: 100 Piece/Pieces per Week
Product Description

High Performance Boiler Sight Glass Level Gauge For Stainless Steel Tanks

High Performance Boiler Sight Glass Level Gauge For Stainless Steel Tanks 0

Product Description

Glass plate level gauge is divided into three kinds: Transparent type, reflection type and sight glass type. The level gauge is mainly composed by level gauge’s body, upper valve (gas valve), lower valve (liquidvalve), drain valve, insurance steel ball and so on. When the glass plate have some cracks or be damaged, the insurance steel ball will automatically stop the side valve of gas and liquid to avoid or reduce flowing. So the worker can cut off the bottom valve to handle it. This series product is stable, sealed and reliable, simple installation, which is ideal instrument for detecting for liquid level in all kinds of containers with middle or low pressure.Connecting the upper and lower flanges of this level gauge with the upper and lower flanges of the container to form a permeator, then the height of liquid can be directly seen.

High Performance Boiler Sight Glass Level Gauge For Stainless Steel Tanks 1

Product Features

• Simple structure, good stability, reliability and durability.
• Isolated medium, indicator
• Wide range of operating pressure: vacuum to 4.0Mpa
• Wide range of operating temperature: 0℃ to 250℃

High Performance Boiler Sight Glass Level Gauge For Stainless Steel Tanks 2

Product Parameters

(1) Center-center distance: 150~2000mm
(2) Medium density: More than 0.45g/cm3
(3) Working pressure: Vacuum to 4.0MPa
(4) Material: SS304, 316L
(5)Operating temperature: 0~250°C
(6) Process connection: DN20(3/4")HG/T 20592-2009
(7)Protection class: IP65
(8)Model: Reflex water tank level gauge
(9)Heating steam pressure: ≤1.0PMa
(10)Steel ball closing action pressure: ≥0.3MPa



Detailed Images

High Performance Boiler Sight Glass Level Gauge For Stainless Steel Tanks 3High Performance Boiler Sight Glass Level Gauge For Stainless Steel Tanks 4



Working principle: It consists of two parts: a magnetic indicator and a float. The magnetic indicator is composed of a red and white magnetic flipping column or a magnetic flipping card and a guard plate equipped with a small magnetic steel. When the floating ball equipped with magnetic steel moves up and down with the liquid, the beam magnetic field of the permanent magnet in the floating ball turns the magnetic turning column 180°. When the liquid level rises, the turning column turns from white to red. It turns from red to white to indicate the height of the liquid level. (The color of the flop and the flop can be different, such as blue and red or black and white, etc.). When it is necessary to transmit output, install a reed switch or magnetic sensor transmitter parallel to the magnetic indicator to realize the remote transmission of 4-20mA or 0-10mA current signal; equipped with a liquid level alarm switch, and The upper and lower limits of the liquid level can be alarmed.

Feature: In addition to on-site instructions, it can also be equipped with remote transmitters, alarm switches, and control switches with complete detection functions. The indication is novel, the reading is intuitive and eye-catching. The indicating mechanism is completely isolated from the measured medium, so it has good sealing, high reliability and safe use. The structure is simple, the installation is convenient, and the maintenance cost is low. Corrosion resistance, no power supply, explosion-proof. According to the different installation positions in the container, there are two types of side mounting and top mounting.
