Boiler Water Level Gauge Stainless Steel Side Mount Glass Level Gauge
1 Piece/Pieces
MOQ
$79.00 - $365.00 / Pieces
Price
Boiler Water Level Gauge Stainless Steel Side Mount Glass Level Gauge
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: VACORDA
Certification: ISO9001/CE/TUV/From-E
Model Number: HKD
High Light:

sight glass level gauge

,

reflex glass level gauge

Payment & Shipping Terms
Packaging Details: Wooden box
Supply Ability: 100 Piece/Pieces per Week
Specifications
Nominal Length (C-C ): 0~300, 0~2000mm Center-center Distance
Connection: 550, 850, 1150, 1450, 1750mm
Center To Center Distance: Carbon Steel, 304, 316L, Carbon Steel With PTFE
Nominal Pressure (MPa): Sight Glass Type: 0.1, 0.6
Working Temperature: 0~250℃
Connection Flange: DN20 (3/4"),A\B Type---HG20592; C Type---HG20615-09
Code Of Flange: A: RF Surface Flange; B: M Surface Flange; S: Without
Heating Steam Cube Connector: RC1/4 Female Thread
Heating Steam Pressure: ≤1.0MPa
Steel Ball Closing Pressure: >=0.3MPa
Port: Shanghai/shenzhen
Product Description

Boiler Water Level Gauge Stainless Steel Side Mount Glass Level Gauge

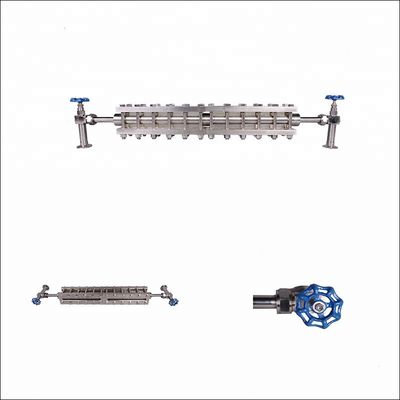

Boiler Water Level Gauge Stainless Steel Side Mount Glass Level Gauge 0

Product Description
The HK glass plate level gauge is divided into three types: transparent type, reflection type and sight glass type. It mainly consists of a liquid level meter body, an upper valve (air valve), a lower valve (liquid valve), a drain plug (or a drain valve), and an insurance steel ball. When the glass plate is damaged, the safety steel ball automatically blocks the gas and liquid side valves to prevent or reduce the outflow of the medium, so that the root valve of the liquid level meter can be manually cut off for treatment. This series of products is solid in structure, reliable in sealing and easy to install. It is an ideal instrument for liquid level observation in various medium and low pressure containers.

Product installation

glass plate level gauge

Product Parameters

Nominal length (center to center ):

0~300-0~2000mm

Recommended length:

550, 850, 1150, 1450, 1750mm

Material:

Carbon steel, 304, 316L

Nominal pressure (MPa):

Transparent type: 2.5, 6.3; Reflection-type: 4.0; Sight glass type: 0.1, 0.6

Working temperature:

0~250°C

Connection flange:

DN20 (3/4”); A,B type---HG20592; C type---HG20615-09

Heating steam cube connector:

 RC1/4 internal thread

Heating steam pressure:

1.0MPa

Steel ball closing pressure:

0.3MPa


Detailed Images

Boiler Water Level Gauge Stainless Steel Side Mount Glass Level Gauge 2Boiler Water Level Gauge Stainless Steel Side Mount Glass Level Gauge 3



Working principle: It consists of two parts: a magnetic indicator and a float. The magnetic indicator is composed of a red and white magnetic flipping column or a magnetic flipping card and a guard plate equipped with a small magnetic steel. When the floating ball equipped with magnetic steel moves up and down with the liquid, the beam magnetic field of the permanent magnet in the floating ball turns the magnetic turning column 180°. When the liquid level rises, the turning column turns from white to red. It turns from red to white to indicate the height of the liquid level. (The color of the flop and the flop can be different, such as blue and red or black and white, etc.). When it is necessary to transmit output, install a reed switch or magnetic sensor transmitter parallel to the magnetic indicator to realize the remote transmission of 4-20mA or 0-10mA current signal; equipped with a liquid level alarm switch, and The upper and lower limits of the liquid level can be alarmed.

Feature: In addition to on-site instructions, it can also be equipped with remote transmitters, alarm switches, and control switches with complete detection functions. The indication is novel, the reading is intuitive and eye-catching. The indicating mechanism is completely isolated from the measured medium, so it has good sealing, high reliability and safe use. The structure is simple, the installation is convenient, and the maintenance cost is low. Corrosion resistance, no power supply, explosion-proof. According to the different installation positions in the container, there are two types of side mounting and top mounting.
