Freon Refrigeration Ultrasonic Level Meter With Fluid Level Sensor
Features Gallery Product Description Request A Quote
Features
Specifications
Certificate: ISO9001:2000
Product Name: Freon Refrigeration Ultrasonic Level Meter , Ultrasonic Fluid Level Sensor
Accurancy: 0.2% Span
Relay Stadard: 5A 250VAC/30VDC
Temperature: -40~+75
Pressure Range: +/-0.1MP
Beam Angle: 8, 5 Degree
Shell Material: Cast Aluminum
Pretect Grade: IP67
Mode Installation: Whorl, Flange Or The Support
Port: Shanghai
High Light:

ultrasonic level meter

,

ultrasonic fluid level sensor

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Certification: CE/TUV/ISO9001/SGS
Model Number: HBLU-B
Payment & Shipping Terms
Packaging Details: Wooden carton
Supply Ability: 100 Piece/Pieces per Month
Product Description

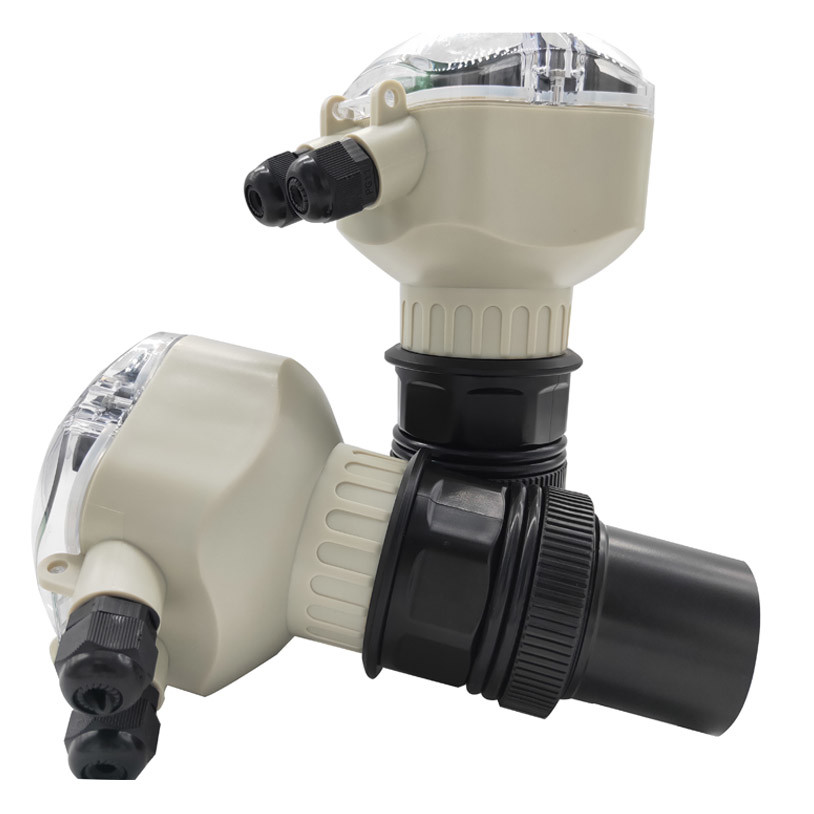

Freon Refrigeration Ultrasonic Level Meter With Fluid Level Sensor

Freon Refrigeration Ultrasonic Level Meter With Fluid Level Sensor 0
Product Description
Ultrasonic level meter is a non-contact highly accuracy and cost-effective level measuring instrument which is easily installed and maintained. It can meet most of the material level measurement requirements without touching the medium. The instrument has the automatic temperature correction, automatic fixed distance calibration and other calibration functions to make the measurement results more accurate and reliable.



Applications

Applied in brewing, beverage, milk production, storage tanks, oil pipelines, sewage tank, Wells,, rivers, reservoirs, liquid level measurement, etc.

Freon Refrigeration Ultrasonic Level Meter With Fluid Level Sensor 1



Product features

Security: When measuring liquid with poison, explosion, corrosion, stress, easily volatile, easily leak, it does not use valves, pipe, joint. It is without leak source, and not contact tank of liquid and gas. It is very safe. Even in the state of instrument damage or maintenance, there is no possibility of leakage, poisoning or explosion.

Hygiene: Don’t contact with liquid (wine making, beverage, milk production, storage tanks, pipes) in the detection and monitoring projects, and no pollution.

Installation and maintenance convenient: installation is no fire, no clear tank, and no impact on production.



Product Parameters

(1)Power supply: DC20~32V
(2)Output: DC4~20mA
(3)Working temperature: -40℃~+75℃
(4)Mode of indication: 4 digit LCD
(5)Parameter set up: 3 induction buttons
(6)Mode installation: Whorl, Flange
(7)Accuracy: 0.2% Span(in air)
(8)Beam angle: 8°, 5° (3db)
(9)Pressure range: ±0.1MPa
(10)Protect grade: IP67

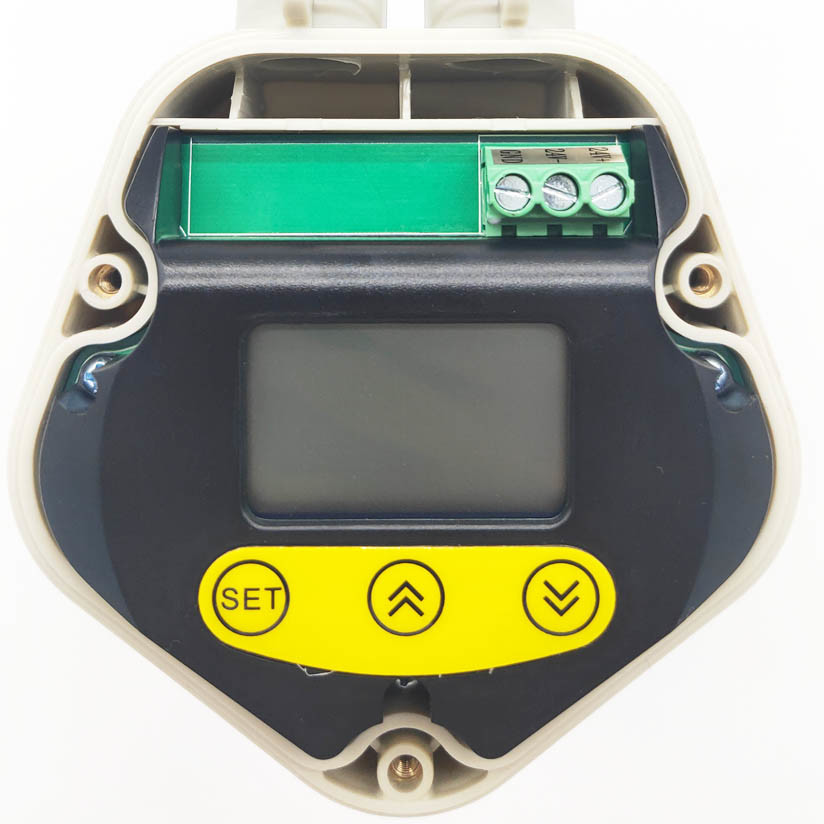

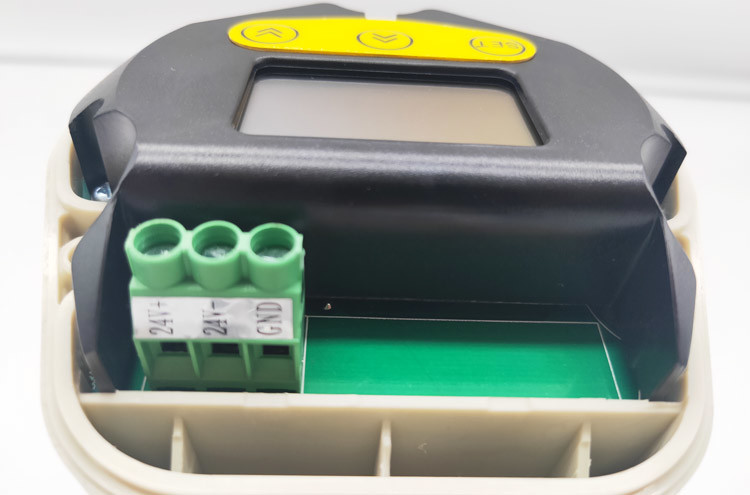

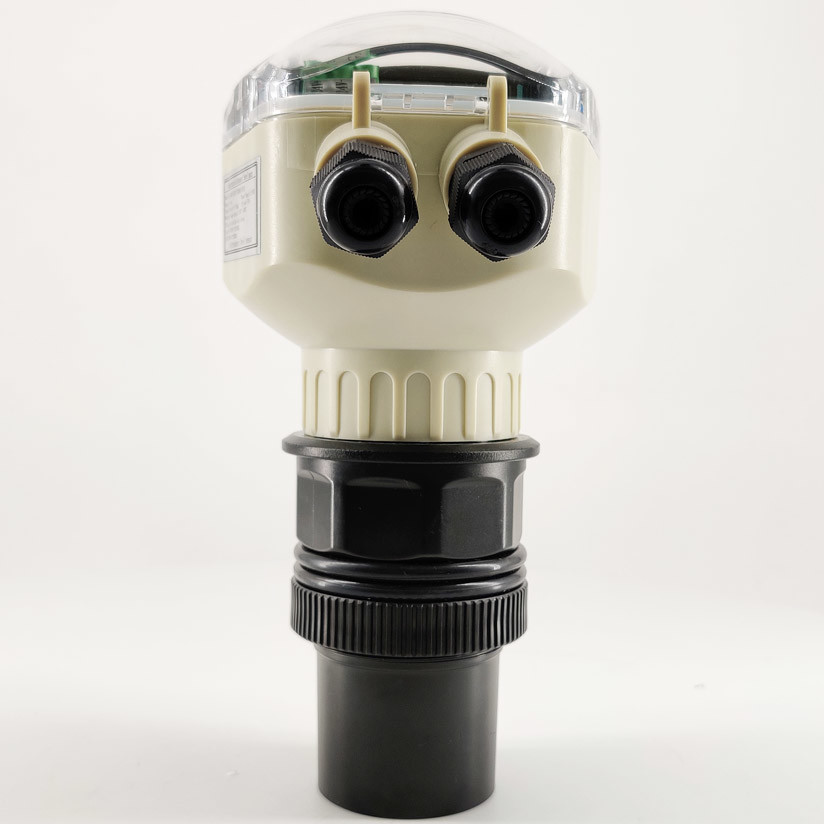

Detailed Images

Freon Refrigeration Ultrasonic Level Meter With Fluid Level Sensor 2Freon Refrigeration Ultrasonic Level Meter With Fluid Level Sensor 3Freon Refrigeration Ultrasonic Level Meter With Fluid Level Sensor 4Freon Refrigeration Ultrasonic Level Meter With Fluid Level Sensor 5

Freon Refrigeration Ultrasonic Level Meter With Fluid Level Sensor 6



Ultrasonic level gauge quotation
2. Environmental conditions for the use of ultrasonic level gauges
1. Medium pressure: Acoustic waves cannot propagate in vacuum, but can propagate in micro-vacuum. However, we recommend not to use it in any vacuum environment, that is, under a slight vacuum, because it may cause abnormal operation or large errors of the ultrasonic
2. Medium humidity: In dry or saturated humidity air, the speed of sound will change by 2%. The air in the water vapor contains a variety of gases, which affect the speed of ultrasonic emission
3. Space: there are obstacles or pipes under the sound wave, which affect the ultrasonic emission and cause signal loss
4. Foam: A large number of bubbles produced by the measured medium can easily absorb sound waves or interfere with sound emission.

5. Air flow: negligible when the wind speed is less than 50km/h. When the wind speed is greater than 50km/h, it will affect the measurement results



1. What is the ultrasonic level gauge?
Ultrasonic level gauge is a monitoring instrument for measuring liquid height, tank height and material position. The instrument itself can adopt two-wire, three-wire or four-wire technology. The two-wire system is: the power supply and signal output are shared; the three-wire system: the power supply circuit and the signal output circuit are independent. When using DC 24v power supply, a 3-core cable can be used, and the negative power supply terminal and the negative signal output terminal share one core; four-wire system: when using AC 220v power supply, or when using DC 24v power supply, the power supply circuit and the signal output circuit are required to be completely isolated , A 4-core cable should be used. DC or AC power supply, 4 ~ 20mADC, high and low switching output.
Household ultrasonic level gauge



2. What are the performance characteristics of the ultrasonic level gauge?
Strong anti-interference performance. The upper and lower nodes can be set at will, online output can be adjusted, and displayed on site. Analog quantity, switch quantity, RS485 output are optional, convenient to interface with related facilities.
Use polypropylene waterproof shell. The shell is small and sturdy, with excellent chemical resistance. For inorganic compounds, no matter acid, alkali or salt solution, there is almost no destructive effect except strong oxidizing substances. Almost all solvents are insoluble at room temperature and can be used for alkanes, hydrocarbons, alcohols, phenols, and aldehydes. , Ketones and other media.
Non-toxic. It can be used for the installation of equipment in the pharmaceutical and food industries, and the maintenance is very convenient.
