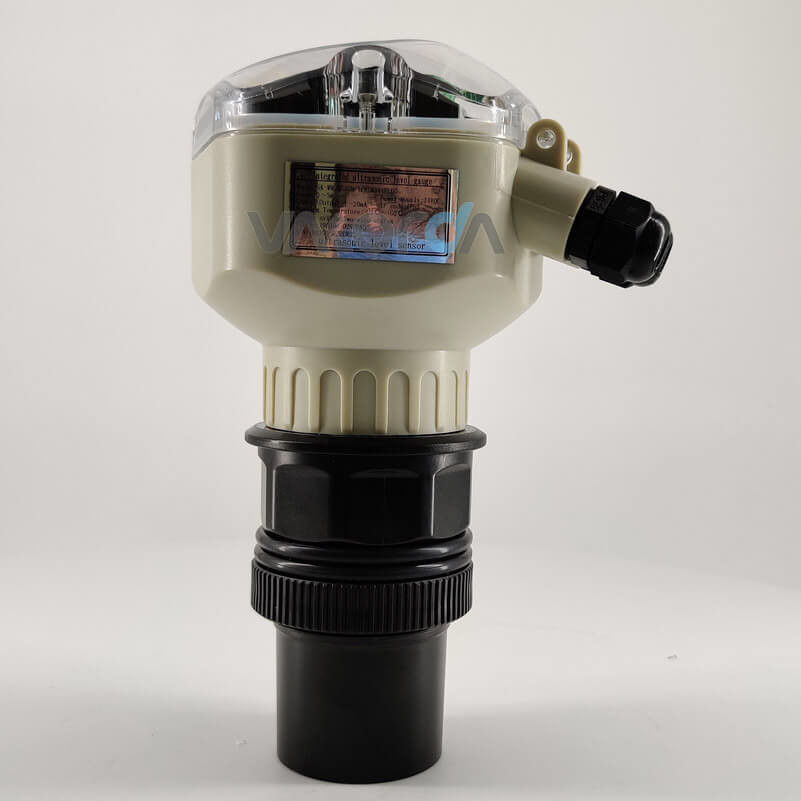

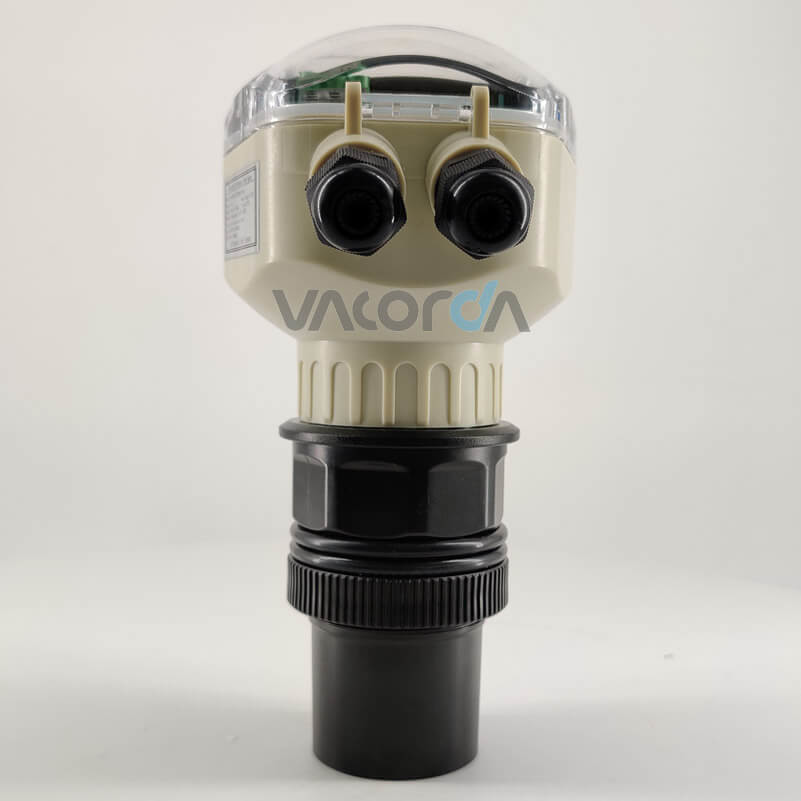

Liquid Water Lpg Ultrasonic Level Sensor Measurement Indicator With Waterproof
Ultrasonic level meter is a non-contact highly accuracy and cost-effective level measuring instrument which is easily installed and maintained. It can meet most of the material level measurement requirements without touching the medium. The instrument has the automatic temperature correction, automatic fixed distance calibration and other calibration functions to make the measurement results more accurate and reliable.
Product features
Security: When measuring liquid with poison, explosion, corrosion, stress, easily volatile, easily leak, it does not use valves, pipe, joint. It is without leak source, and not contact tank of liquid and gas. It is very safe. Even in the state of instrument damage or maintenance, there is no possibility of leakage, poisoning or explosion.
Hygiene: Don’t contact with liquid (wine making, beverage, milk production, storage tanks, pipes) in the detection and monitoring projects, and no pollution.
Installation and maintenance convenient: installation is no fire, no clear tank, and no impact on production.
Product Parameters
| (1)Power supply: | DC20~32V |
| (2)Output: | DC4~20mA |
| (3)Working temperature: | -40℃~+75℃ |
| (4)Mode of indication: | 4 digit LCD |
| (5)Parameter set up: | 3 induction buttons |
| (6)Mode installation: | Whorl, Flange |
| (7)Accuracy: | 0.2% Span(in air) |
| (8)Beam angle: | 8°, 5° (3db) |
| (9)Pressure range: | ±0.1MPa |
| (10)Protect grade: | IP67 |
Production Workshop and Certificate
Application of ultrasonic liquid level comprehensive measuring instrument
The integrated ultrasonic level gauge is widely used to measure the level and volume of storage tanks, ponds and reservoirs, and can also be used to measure the flow of open channels. In practical applications, many interfaces are inaccessible, such as corrosion of measuring equipment products (acids, alkalis), pollution of measuring equipment (sewage), and adhesion of substances (adhesives) on the measuring device. Since the measurement technology of the integrated ultrasonic level gauge is based on the principle of non-contact ultrasonic, the integrated ultrasonic level gauge is suitable for those liquid level and material level positions that cannot be touched by physical means.
