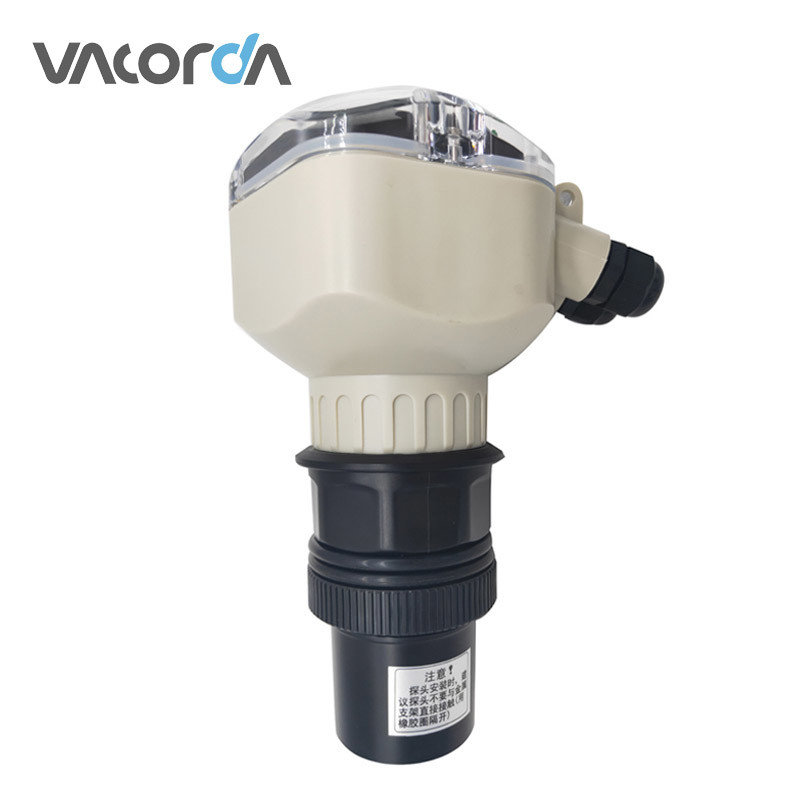

Ultrasonic Level Sensor For Septic Tank Etc.
1 Piece/Pieces
MOQ
Negotiable
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Certification: CE/TUV/ISO9001/SGS
Model Number: HBLT-V
High Light:

ultrasonic tank level sensor

,

ultrasonic fluid level sensor

,

Septic Tank Ultrasonic Level Sensor

Payment & Shipping Terms
Packaging Details: Wooden box.
Supply Ability: 100 Piece/Pieces per Week
Specifications
After Service: Twelve Months
Certificate: ISO9001:2000
Display: 4 Figures LCD
Power Supply: DC20 ~32V >=30mA
Medium Temperature: -40~80°C
Accurancy: 0.2% (full Span )
Material Of Shell: AL
Material Of Sensor: PVC Or PTFE
Delivery Time: 3~15 Days
Origin: Sichuan, China
Port: Shanghai/Shenzhen
Product Description

Ultrasonic Level Sensor For Septic Tank etc.

ultrasonic lpg level sensor

Application

ultrasonic lpg level sensor application

Product Description

ultrasonic level

Product Features

1. Security: When measuring liquid with poison, explosion, corrosion, stress, easily volatile, easily leak, it does not use valves, pipe, joint. It is without leak source, and not contact tank of liquid and gas. It is very safe. Even in the state of instrument damage or maintenance, there is no possibility of leakage, poisoning or explosion.

2. Hygiene: Don’t contact with liquid (wine making, beverage, milk production, storage tanks, pipes) in the detection and monitoring projects, and no pollution.

3. Installation and maintenance convenient: installation is no fire, no clear tank, and no impact on production.



Technical Parameters

(1)Power supply: DC20~32V
(2)Output: DC4~20mA
(3)Working temperature: -40℃~+75℃
(4)Mode of indication: 4 digit LCD
(5)Parameter set up: 3 induction buttons
(6)Mode installation: Whorl, Flange
(7)Accuracy: 0.2% Span(in air)
(8)Beam angle: 8°, 5° (3db)
(9)Pressure range: ±0.1MPa
(10)Protect grade: IP67

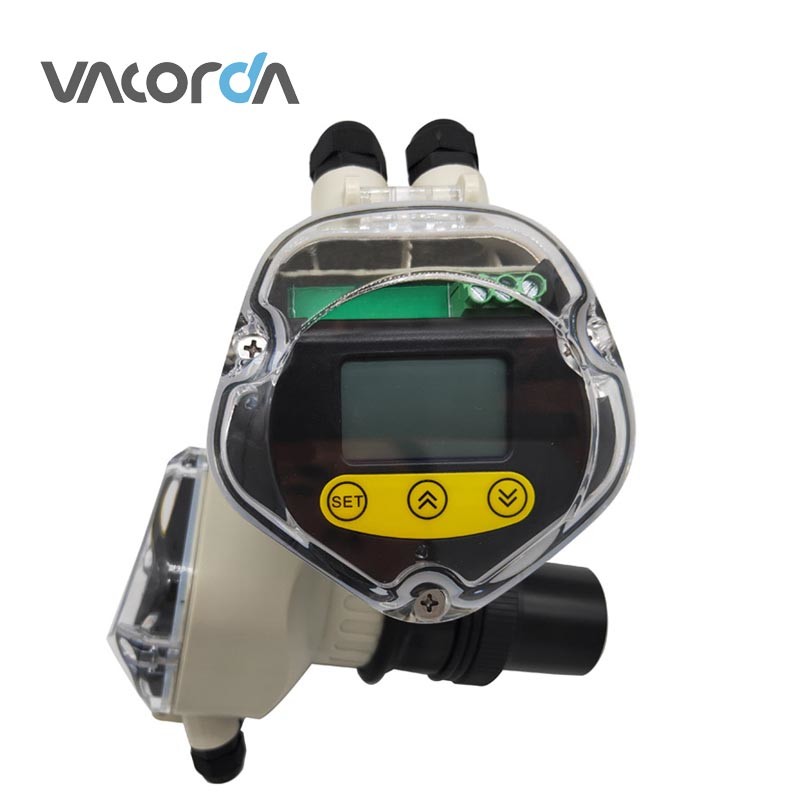

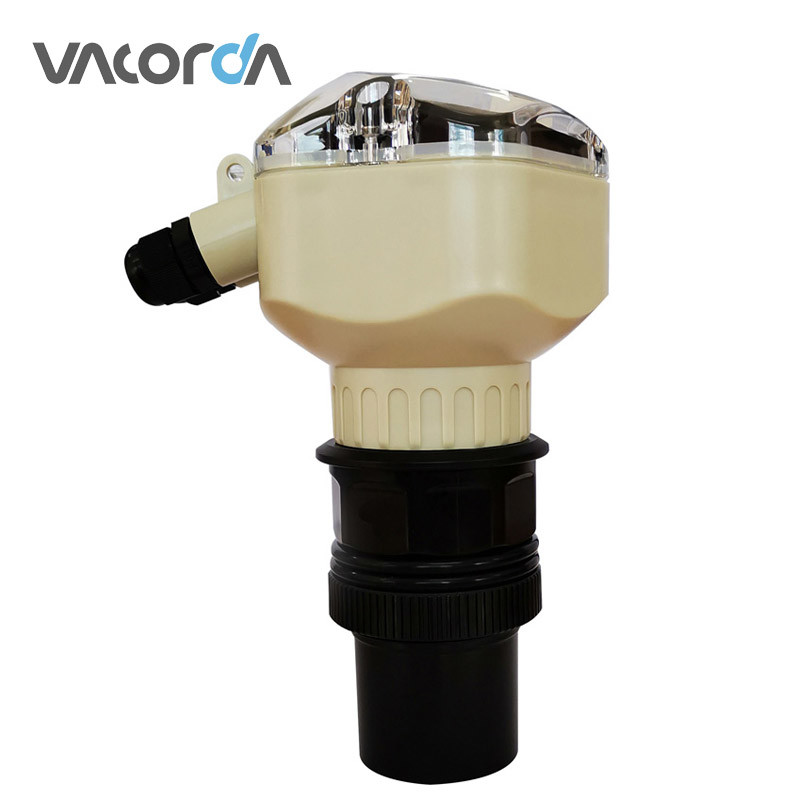

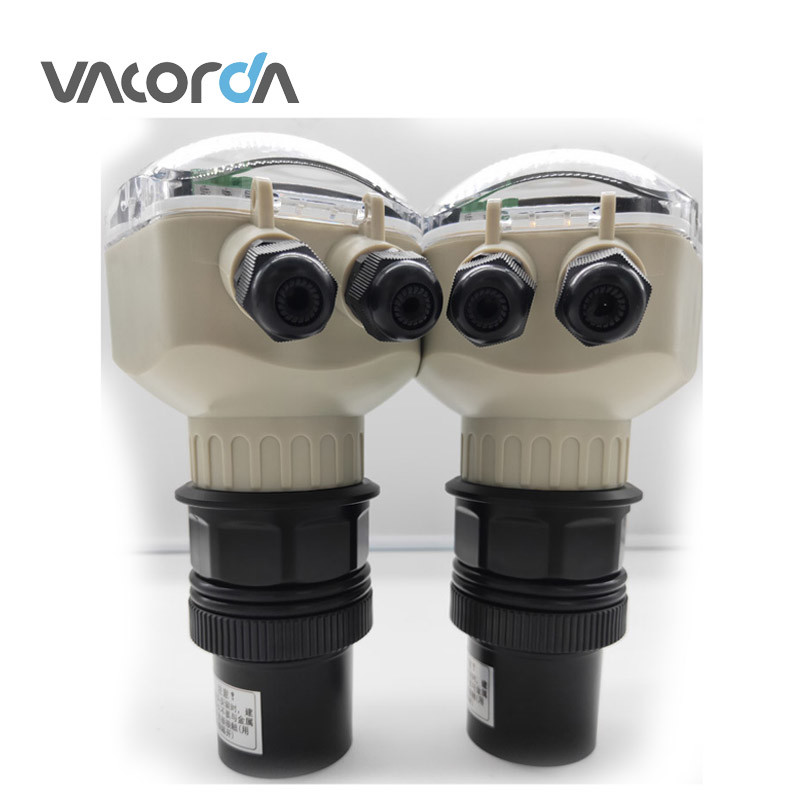

Detailed Images

ultrasonic control level





ultrasonic lpg tank level



For the range of 20m, 30m, 40m, the size of the orifice on the tank should be larger than the size of the DN200 flange. And the length of the connecting pipe is under the flange



Company Information

Ultrasonic Level Sensor For Septic Tank Etc. 5Ultrasonic Level Sensor For Septic Tank Etc. 6vacorda exhibitionsvacorda case

Packaging & Shipping

vacorda packing shipping
