Ultrasonic Diesel Fuel Tank Level Sensor 3 Induction Buttons With High Reliability

1 Piece/Pieces
MOQ
Negotiable
Price
Ultrasonic Diesel Fuel Tank Level Sensor 3 Induction Buttons With High Reliability
Features Gallery Product Description Request A Quote
Features
Specifications
Measuring Range: 0~30m
Cable Fix: PG13.5
Measure Cycle: 1.5s
Parameter Set Up: 3 Induction Buttons
Pressure Range: ±0.1MPa
Mode Of Indication: 4 Digit LCD
Temperature Compensation: The Whole Range Is Automatic
Sensor Material: ABS/PVC/PTFE
Beam Angle: 8°, 5° (3db)
Product Name: Ultrasonic Diesel Fuel Tank Level Sensor 3 Induction Buttons With High Reliability
Port: Shanghai/Shenzhen
High Light:

ultrasonic tank level sensor

,

ultrasonic fluid level sensor

Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: VACORDA
Certification: ISO9001/CE/TUV/From-E
Model Number: HKD
Payment & Shipping Terms
Packaging Details: Carton
Supply Ability: 300 Piece/Pieces per Month
Product Description

Ultrasonic Diesel Fuel Tank Level Sensor 3 Induction Buttons With High Reliability

Ultrasonic Diesel Fuel Tank Level Sensor 3 Induction Buttons With High Reliability 0



Product Description

Ultrasonic level meter is a non-contact highly accuracy and cost-effective level measuring instrument which is easily installed and maintained. It can meet most of the material level measurement requirements without touching the medium. The instrument has the automatic temperature correction, automatic fixed distance calibration and other calibration functions to make the measurement results more accurate and reliable.



Product features

Security: When measuring liquid with poison, explosion, corrosion, stress, easily volatile, easily leak, it does not use valves, pipe, joint. It is without leak source, and not contact tank of liquid and gas. It is very safe. Even in the state of instrument damage or maintenance, there is no possibility of leakage, poisoning or explosion.

Hygiene: Don’t contact with liquid (wine making, beverage, milk production, storage tanks, pipes) in the detection and monitoring projects, and no pollution.

Installation and maintenance convenient: installation is no fire, no clear tank, and no impact on production.

Ultrasonic Diesel Fuel Tank Level Sensor 3 Induction Buttons With High Reliability 1



 Product Parameters

(1)Measure Cycle:

1.5s

(2)Cable Fix:

PG13.5

(3)Working temperature:

-40℃~+75℃

(4)Mode of indication:

4 digit LCD

(5)Parameter set up:

3 induction buttons

(6)Mode installation:

Whorl, Flange

(7)Accuracy:

0.2% Span(in air)

(8)Beam angle:

8°, 5° (3db)

(9)Pressure range:

±0.1MPa

(10)Sensor Material:

ABS/PVC/PTFE

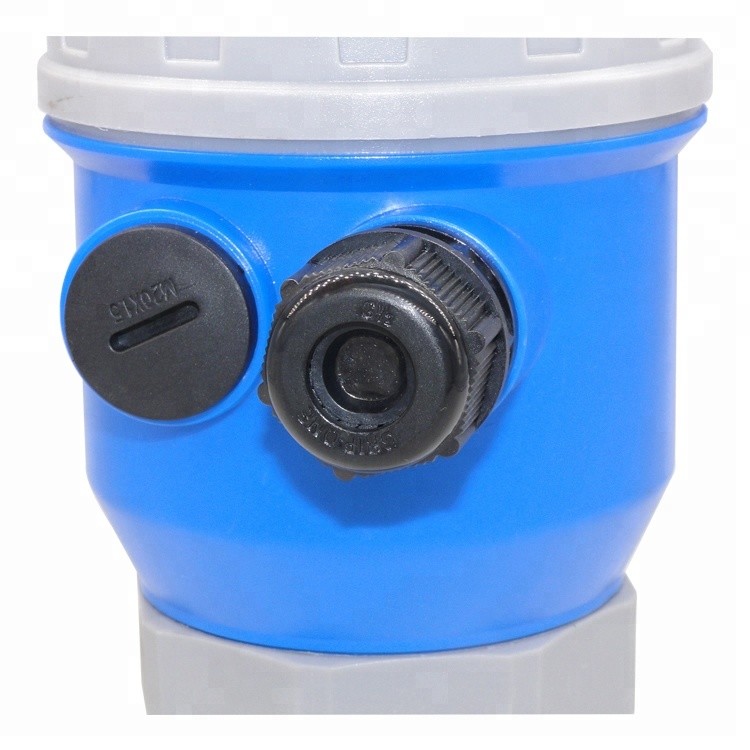

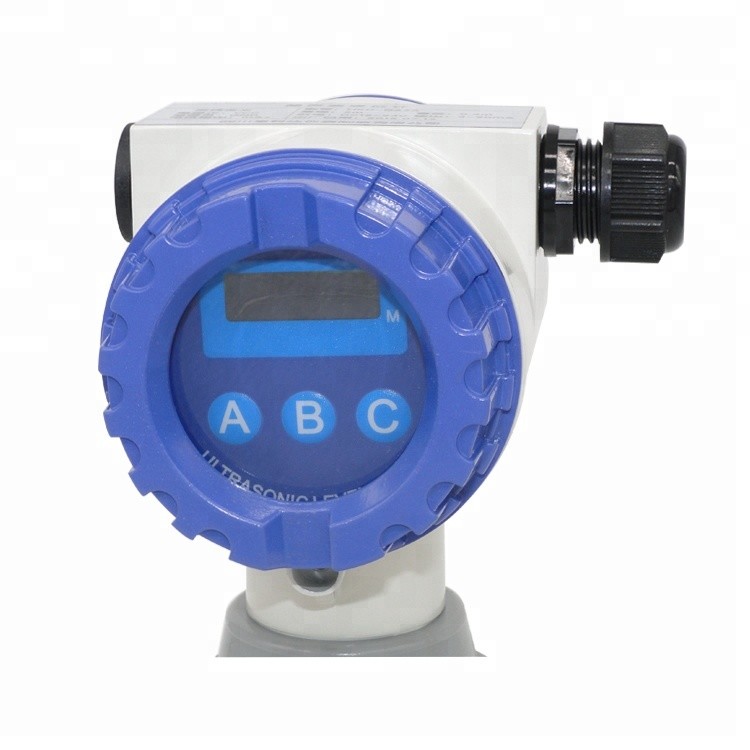

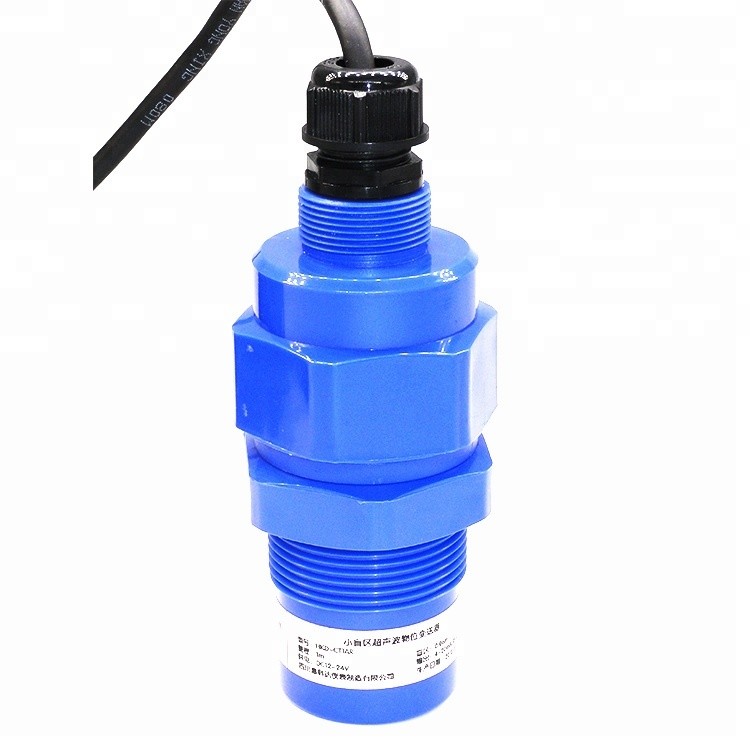

Detailed Images

  Ultrasonic Diesel Fuel Tank Level Sensor 3 Induction Buttons With High Reliability 2Ultrasonic Diesel Fuel Tank Level Sensor 3 Induction Buttons With High Reliability 3Ultrasonic Diesel Fuel Tank Level Sensor 3 Induction Buttons With High Reliability 4Ultrasonic Diesel Fuel Tank Level Sensor 3 Induction Buttons With High Reliability 5



Production Workshop and Certificate

Ultrasonic Diesel Fuel Tank Level Sensor 3 Induction Buttons With High Reliability 6Ultrasonic Diesel Fuel Tank Level Sensor 3 Induction Buttons With High Reliability 7



Application of ultrasonic liquid level comprehensive measuring instrument

The integrated ultrasonic level gauge is widely used to measure the level and volume of storage tanks, ponds and reservoirs, and can also be used to measure the flow of open channels. In practical applications, many interfaces are inaccessible, such as corrosion of measuring equipment products (acids, alkalis), pollution of measuring equipment (sewage), and adhesion of substances (adhesives) on the measuring device. Since the measurement technology of the integrated ultrasonic level gauge is based on the principle of non-contact ultrasonic, the integrated ultrasonic level gauge is suitable for those liquid level and material level positions that cannot be touched by physical means.

Ultrasonic Diesel Fuel Tank Level Sensor 3 Induction Buttons With High Reliability 8
