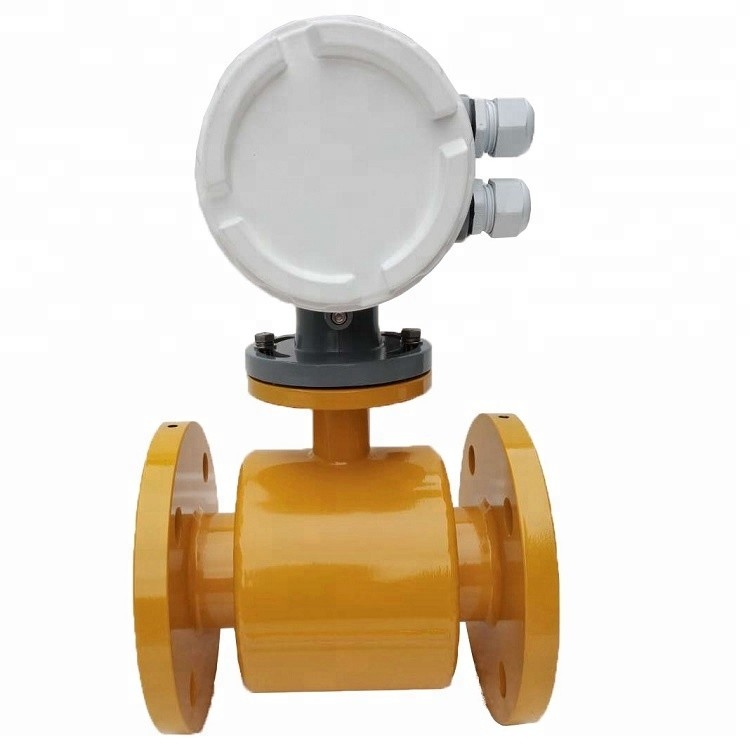

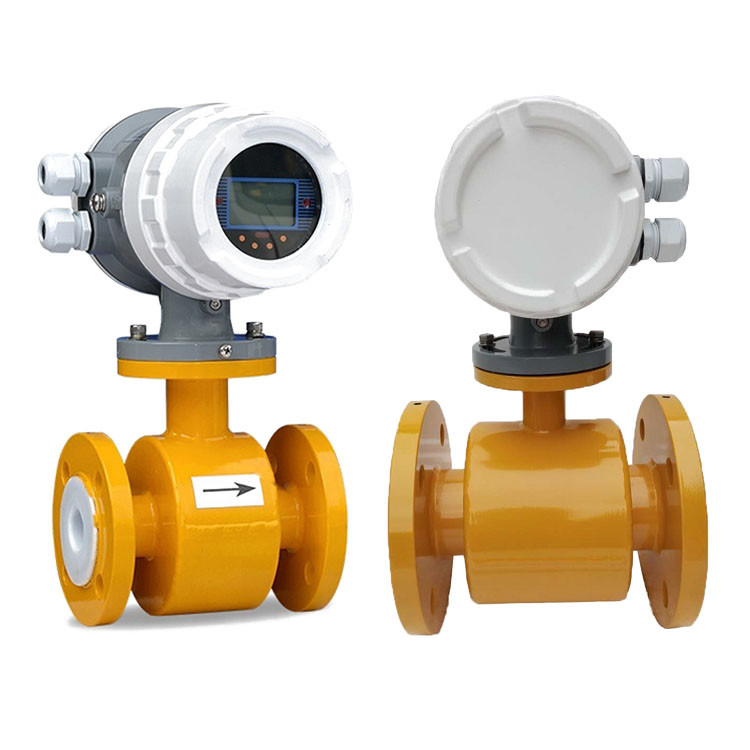

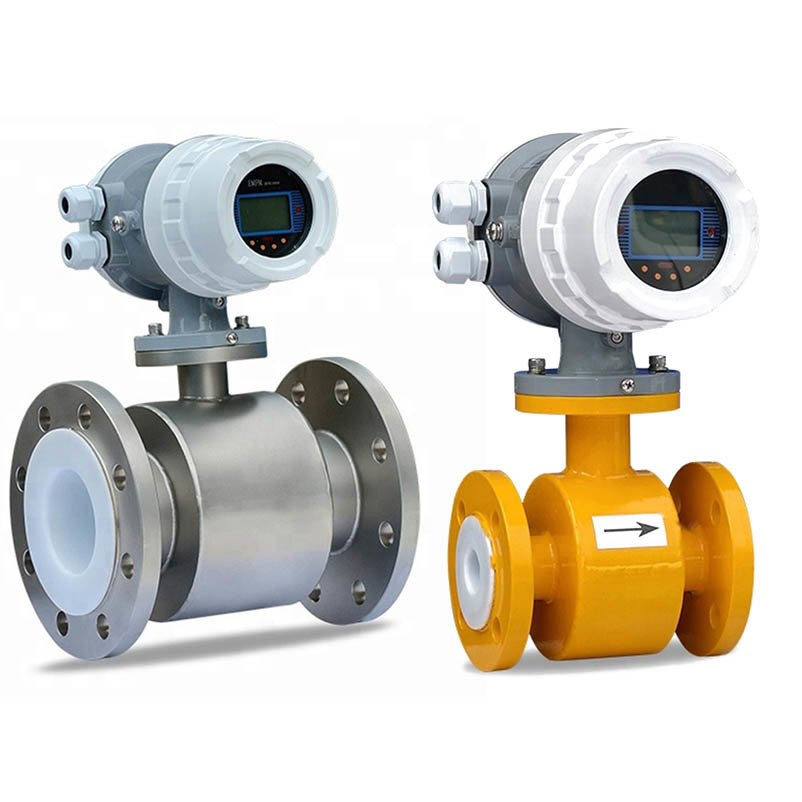

Battery Power SS304 Integrated Electromagnetic Flowmeter
1. No moving and blocked flow parts in the pipeline, almost no additional pressure loss in the measurement.
2. Measurements results are independent of physical parameters, such as flow distribution, fluid pressure, temperature, density and viscosity.
3. On-site modification of the measuring range available.
4. LCD display, easy to use and simple to operate.
5. Using SMD devices and SMT technology.
6. Using 16-bit embedded processors with fast speed and high accuracy, enhancing the stability of measurement.
7. Anti-interference, reliability, measurement range up to 150:1.
8. Ultra low EMI switch, wide range of power supply voltage.
9. RS485, RS232, Hart and Modbus digital communication signal output.
10. Self-checking function.
Due to its unique advantages, it is widely used in the fields of petroleum, chemical industry, steel, light industry, sewage processing, environmental protection, water conservancy project and pharmacy to measure the volume flow of the conducted liquid mediums, such as acid, alkali, salt solution and so on.
|(1)working pressure:||pipeline: DN10~DN65: ≤ 2.5MPa|
|(2)Chamber Material:||Stainless steel, carbon steel|
|(3)Power Supply:||85~265VAC 45~63HZ|
|(7)Accuracy:||piped: 0.5 class, 1.0 class|
|(10)Measuring range ratio:||150:1|
HKLD type intelligent electromagnetic flowmeter is a fully intelligent electromagnetic flowmeter developed by our company using the most advanced technology at home and abroad. Its electromagnetic converter core adopts high-speed central processing unit. The calculation speed is very fast, the precision is high, and the measurement performance is reliable. The sensor adopts non-uniform magnetic field technology and special magnetic circuit structure, the magnetic field is stable and reliable, and the volume is greatly reduced, the weight is reduced, and the flowmeter is characterized by small flow.
|Product Name||Electromagnetic Flowmeter|
|Accuracy class||0.5 class, 1.0 class|
|Measured medium temperature||Common rubber lining: -20~+60 ° c|
|High temperature rubber lining: -20~+90 ° c|
|PTFE lining: -30~+100 ° c|
|High temperature vinyl lining: -30~+180 ° c|
|Rated working pressure||
pipeline: DN10~DN65: ≤ 2.5MPa;DN80~DN150: ≤ 1.6MPa;
DN200~DN1200: ≤ 1.0MPa
|Flow rate range||0.3~15m/s|
|Measured fluid conductivity||≥5μs/cm liquid|
|Output||4~20mA / 4~20mA + Hart|
316L, titanium (Ti), tantalum (Ta), Hastelloy (H), Platinum (Pt) or
other special electrode materials
|Working power supply||85~265VAC / 24VDC / Battery|
|Straight pipe length||pipe: ≥ 5DN in the upper reaches, downstream of greater than or equal to 2DN|
|Protection grade||standard: IP65; IP68(optional)|
