Water Level Gauge Sight Glass Level Indicator In Boiler Good Sealability

1 set
MOQ
Negotiable
Price
Water Level Gauge Sight Glass Level Indicator In Boiler Good Sealability
Features Gallery Product Description Request A Quote
Features
Specifications
Material: 304,316 L, 1Cr18Ni9Ti, 0Cr18Ni9, 00Cr17Ni14Mo2, 321, Titanium Alloy
Pressure: 1.6MPa
Temperature: ≤100℃
Protection Class: IP65
Center-center Distance: 0~1400mm
Medium Density: 0.45g/cm3
Product Name: Sight Glass Level Gauge , Water Level Indicator In Boiler Good Sealability
High Light:

sight glass level gauge

,

reflex glass level gauge

Basic Infomation
Place of Origin: CHINA
Brand Name: VACORDA
Certification: ISO,CE
Model Number: Water Level Gauge for boiler with Reflex or Transparent type China Supplier
Payment & Shipping Terms
Packaging Details: wooden cases
Delivery Time: 10 working days
Payment Terms: T/T
Supply Ability: 100 sets per week
Product Description

Water Level Gauge Sight Glass Level Indicator In Boiler Good Sealability

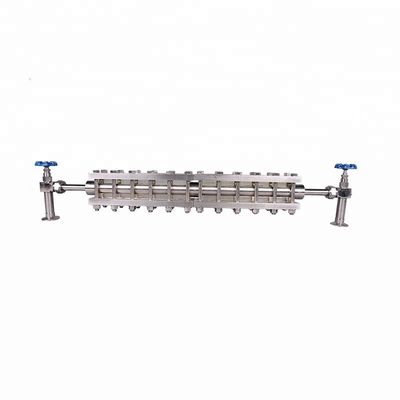

Water Level Gauge Sight Glass Level Indicator In Boiler Good Sealability 0

Product Description
The HK glass plate level gauge is divided into three types: transparent type, reflection type and sight glass type. It mainly consists of a liquid level meter body, an upper valve (air valve), a lower valve (liquid valve), a drain plug (or a drain valve), and an insurance steel ball. When the glass plate is damaged, the safety steel ball automatically blocks the gas and liquid side valves to prevent or reduce the outflow of the medium, so that the root valve of the liquid level meter can be manually cut off for treatment. This series of products is solid in structure, reliable in sealing and easy to install. It is an ideal instrument for liquid level observation in various medium and low pressure containers.



Product installation

glass plate level gauge

Product Parameters

Nominal length (center to center ):

0~300-0~2000mm

Recommended length:

550, 850, 1150, 1450, 1750mm

Material:

Carbon steel, 304, 316L

Nominal pressure (MPa):

Transparent type: 2.5, 6.3; Reflection-type: 4.0; Sight glass type: 0.1, 0.6

Working temperature:

0~250°C

Connection flange:

DN20 (3/4”); A,B type---HG20592; C type---HG20615-09

Heating steam cube connector:

 RC1/4 internal thread

Heating steam pressure:

≤1.0MPa

Steel ball closing pressure:

≥0.3MPa

Detailed Images

 glass plate level gaugeglass plate level gaugeglass plate level gauge

Related Products

vacorda instruments (6)vacorda instruments (7)vacorda vortex flowmetervacorda instruments (9)vacorda instruments (4)



Product Application

Water Level Gauge Sight Glass Level Indicator In Boiler Good Sealability 10



Company Information


 about vacorda instruments

Sichuan VACORDA Instruments Manufacturing Co., Ltd. is a professional production-manufacturing enterprise specialized in designing, producing and marketing of instruments and apparatuses. Our company has been established for 21 years since 1997 to grow up to be a team of high-quality, united, hard-working and truth-seeking characters. Solid foundation has been established.
