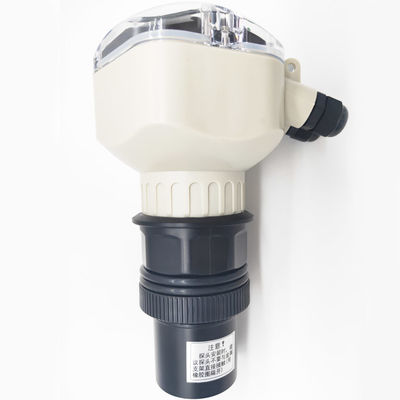

4-20ma Diesel Fuel Tank Ultrasonic Liquid Level Sensor For Co2 Cylinder
Ultrasonic level meter is a non-contact highly accuracy and cost-effective level measuring instrument which is easily installed and maintained. It can meet most of the material level measurement requirements without touching the medium. The instrument has the automatic temperature correction, automatic fixed distance calibration and other calibration functions to make the measurement results more accurate and reliable.
Product features
1. Maintenance free, non-contact continuous level sensor
2. 2-wire instrument with HART digital communication
3. Up to 10 m measurement range
4. Wide temperature range of -40 to 85 ˚C
5. Accuracy of ±2 mm or 0.2 % of full span (the larger one)
6. Beam angle as low as 5˚ with false echo filtering for narrow spaces
7. Easy installation with graphic echo display, advanced diagnostic and easy setup menu
8. Unique GAP technology ensures the best performance under any condition
9. IP66/67 and NEMA 4X (can submerge to 1 m depth for 30 minutes)
10. ATEX, IEC & FM Intrinsic safe and non sparking approved
Product Parameters
| (1)Power supply: | DC20~32V |
| (2)Output: | DC4~20mA |
| (3)Working temperature: | -40℃~+75℃ |
| (4)Mode of indication: | 4 digit LCD |
| (5)Parameter set up: | 3 induction buttons |
| (6)Mode installation: | Whorl, Flange |
| (7)Accuracy: | 0.2% Span(in air) |
| (8)Beam angle: | 8°, 5° (3db) |
| (9)Pressure range: | ±0.1MPa |
| (10)Protect grade: | IP67 |
Production Workshop and Certificate
Application of ultrasonic liquid level comprehensive measuring instrument
The integrated ultrasonic level gauge is widely used to measure the level and volume of storage tanks, ponds and reservoirs, and can also be used to measure the flow of open channels. In practical applications, many interfaces are inaccessible, such as corrosion of measuring equipment products (acids, alkalis), pollution of measuring equipment (sewage), and adhesion of substances (adhesives) on the measuring device. Since the measurement technology of the integrated ultrasonic level gauge is based on the principle of non-contact ultrasonic, the integrated ultrasonic level gauge is suitable for those liquid level and material level positions that cannot be touched by physical means.
