Portable Meter Ultrasonic Fuel Level Sensor For High Temperature With Relay

Basic Information
Place of Origin: Sichuan, China (Mainland)
Brand Name: VACORDA
Model Number: HKD
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Carton
Supply Ability: 300 Piece/Pieces per Month
Working Temperature: -40℃~+75℃ Mode Of Indication: 4 Digit LCD
Pressure Range: ±0.1MPa Accuracy: 0.2%Span (In Air)
Brand Name: Vacorda Product Name: China Portable Meter Ultrasonic Level Sensor For High Temperature With Relay
High Light:

ultrasonic level meter

,

ultrasonic fluid level sensor

Why choose us:
1. 23 years of instrumentation equipment production experience
2. Product support OEM / ODM, export to more than 100 countries
3. The company area 20,000 square meters, and 150+ orders per month
4. Provide email, skype, whatsapp provide 24-hour one-on-one technical support service online



China Portable Meter Ultrasonic Level Sensor For High Temperature With Relay


Product Description

Ultrasonic level meter is a non-contact highly accuracy and cost-effective level measuring instrument which is easily installed and maintained. It can meet most of the material level measurement requirements without touching the medium. The instrument has the automatic temperature correction, automatic fixed distance calibration and other calibration functions to make the measurement results more accurate and reliable.



The ultrasonic method is a proved, as well as cost-effective solution for level measurement in liquids and bulk solids. Instruments are available as compact or separate versions. This measuring principle is characterized by easy planning and assembly, fast and safe commissioning, a long service life and reduced maintenance costs. Typical applications include abrasive and aggressive media, even in rough ambient conditions.



Measuring Principle

Prosonic is based on the Time-of-Flight principle. A sensor emits ultrasonic pulses, the surface of the media reflects the signal and the sensor detects it again. The Time-of-Flight of the reflected ultrasonic signal is directly proportional to the distance traveled. With the known tank geometry the level can be calculated.



Applications

Applied in brewing, beverage, milk production, storage tanks, oil pipelines, sewage tank,  Wells,, rivers, reservoirs,  liquid level measurement, etc.



Product Parameters

(1) Power supply: DC20~32V
(2) Output: DC4~20mA
(3) Working temperature: -40℃~+75℃
(4) Mode of indication: 4 digit LCD
(5) Parameter set up: 3 induction buttons
(6) Mode installation: Whorl, Flange
(7) Accuracy: 0.2% Span(in air)
(8) Beam angle: 8°, 5° (3db)
(9) Pressure range: ±0.1MPa
(10) Protect grade: IP67



Detailed Images

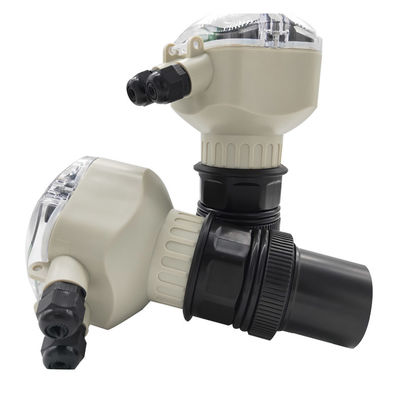

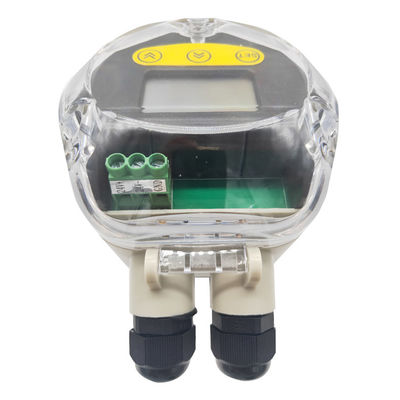

Portable Meter Ultrasonic Fuel Level Sensor For High Temperature With Relay 0Portable Meter Ultrasonic Fuel Level Sensor For High Temperature With Relay 1

Portable Meter Ultrasonic Fuel Level Sensor For High Temperature With Relay 2

Portable Meter Ultrasonic Fuel Level Sensor For High Temperature With Relay 3
