High Temperature Glass Level Gauge Sealed And Reliable 3~5 Years Lifetime

Basic Information
Place of Origin: Sichuan, China (Mainland)
Brand Name: vacorda
Model Number: HKD
Minimum Order Quantity: 1 Piece/Pieces
Price: $200.00 - $300.00 / Pieces
Packaging Details: wooden box
Supply Ability: 100 Piece/Pieces per Week
Material: SS304, 316L, Carbon Steel Warranty: 18 Months
Lifetime: 3~5 Years Connection: Flange DN20(3/4")
Work Temperature: 0-250 Degree Pressure: 2.5,6.3,4.0,0.1,0.6
Measuring Range: 0~300-0~2000mm Recommed Length: 550,850,1150,1450,1750mm
Port: Shenzhen/shanghai
High Light:

sight glass level gauge

,

tank sight glass level indicators

High Temperature Glass Level Gauge Sealed And Reliable 3~5 Years Lifetime​



Product Description

Glass plate level gauge is divided into three kinds: Transparent type, reflection type and sight glass type. The level gauge is mainly composed by level gauge’s body, upper valve (gas valve), lower valve (liquid valve), drain valve, insurance steel ball and so on. When the glass plate have some cracks or be damaged, the insurance steel ball will automatically stop the side valve of gas and liquid to avoid or reduce flowing. So the worker can cut off the bottom valve to handle it. This series product is stable, sealed and reliable, simple installation, which is ideal instrument for detecting for liquid level in all kinds of containers with middle or low pressure.Connecting the upper and lower flanges of this level gauge with the upper and lower flanges of the container to form a permeator, then the height of liquid can be directly seen.

Structure:

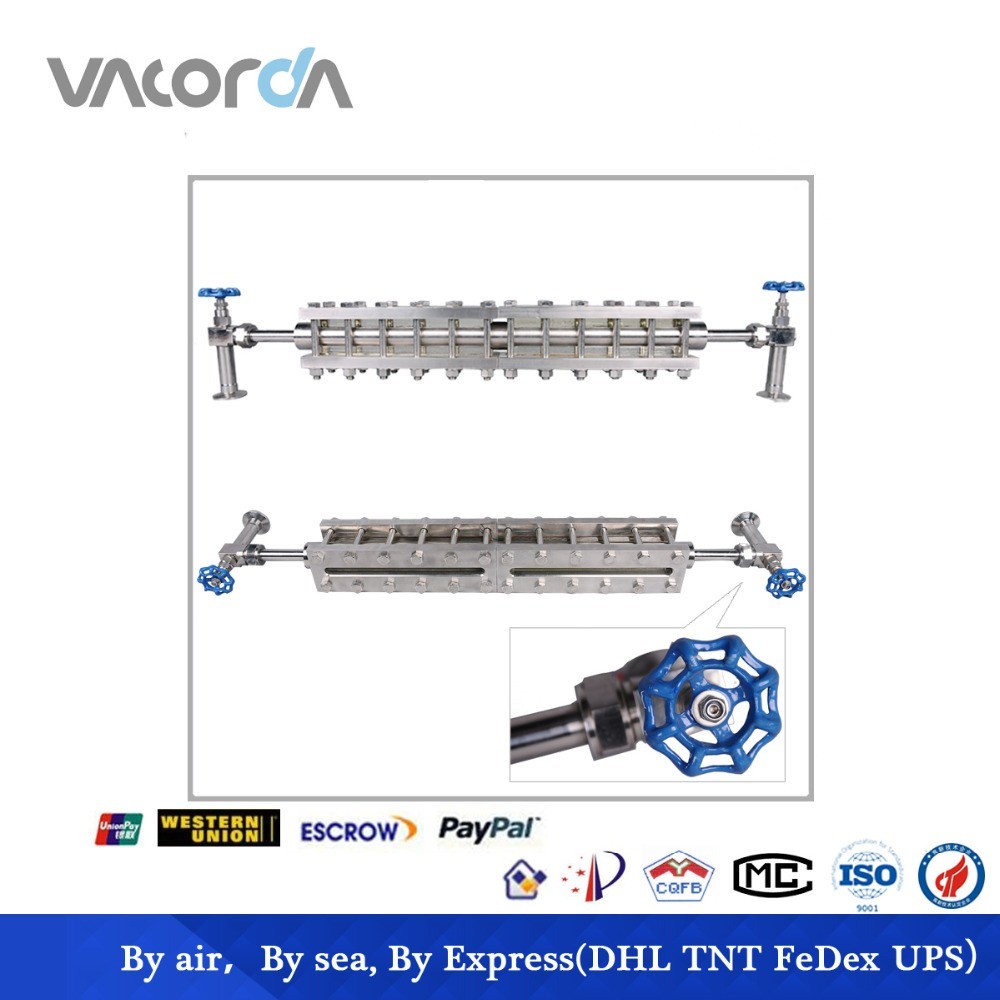

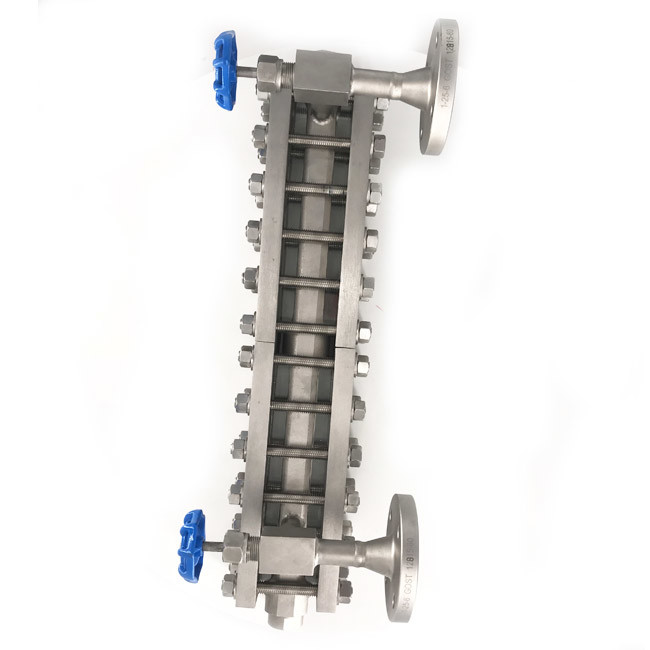

 High Temperature Glass Level Gauge Sealed And Reliable 3~5 Years Lifetime 0High Temperature Glass Level Gauge Sealed And Reliable 3~5 Years Lifetime 1



Technical parameters

Nominal length (center to center ):

0~300-0~2000mm

Recommended length:

550, 850, 1150, 1450, 1750mm

Material:

Carbon steel, 304, 316L

Nominal pressure (MPa):

Transparent type: 2.5, 6.3; Reflection-type: 4.0; Sight glass type: 0.1, 0.6

Working temperature:

0~250

Connection flange:

DN20 (3/4”); A,B type---HG20592; C type---HG20615-09

Heating steam cube connector:

 RC1/4 internal thread

Heating steam pressure:

1.0MPa

Steel ball closing pressure:

0.3MPa

Detailed Images

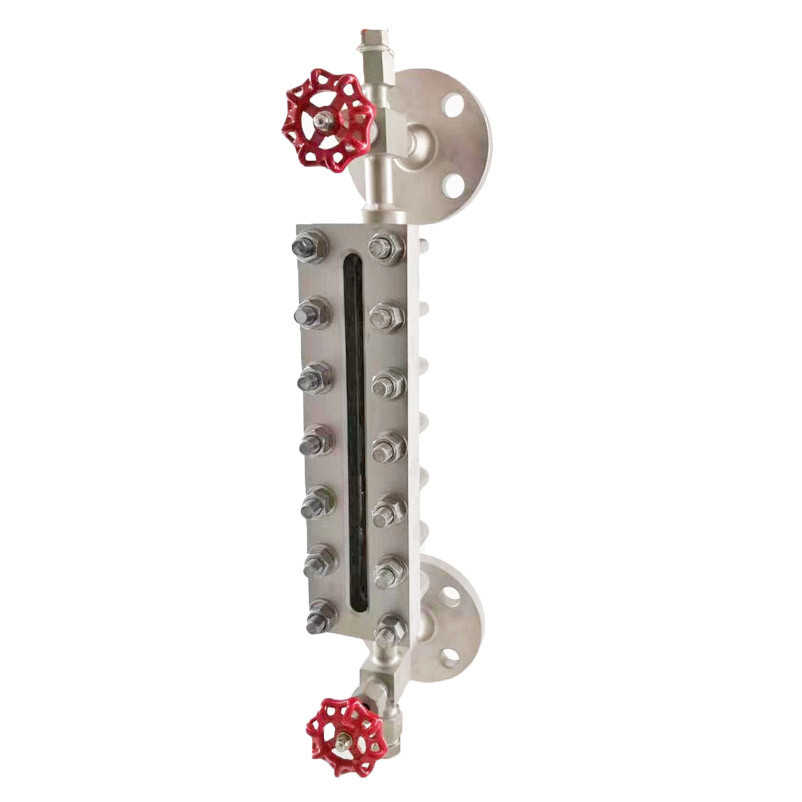

High Temperature Glass Level Gauge Sealed And Reliable 3~5 Years Lifetime 2

High Temperature Glass Level Gauge Sealed And Reliable 3~5 Years Lifetime 3

High Temperature Glass Level Gauge Sealed And Reliable 3~5 Years Lifetime 4High Temperature Glass Level Gauge Sealed And Reliable 3~5 Years Lifetime 5
