Volt And Ampere Digital Temperature Controller Volt Ampere Meter With Guage

1
MOQ
USD33/set
Price
Volt And Ampere Digital Temperature Controller Volt Ampere Meter With Guage
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: DPS Current Measurement Dc Digital Volt And Ampere Volt Ampere Meter Meter With Guage
Application: Industrial Temperature Measuring
Power Supply: 110/220/380VAC
Function: Temperature Monitor
Display Type: LED Display
Working Conditions: -10 ° C ~ +60 ° C, Relative Humidity: 20% ~ 85%
High Light:

Ampere Digital Temperature Controller

,

Volt Ampere Meter With Guage

,

Temperature Monitor Volt Ampere Meter

Basic Infomation
Place of Origin: China
Brand Name: vacorda
Certification: ISO9001/CE/TUV/From-E
Model Number: HKD
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 20 workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Piece/Pieces per Week
Product Description

DPS Current Measurement Dc Digital Volt And Ampere Volt Ampere Meter Meter With Guage

Measuring range: AC 30-500V
Minimum input: AC30V
Maximum input: AC500V( if input voltage greater than 500VAC, the voltmeter would burn.)
Permissible error: 1% (+ / - 1 digit)
Display: three 0.56 "LED digital tube
Display Color: Red/blue/green
Refresh rate: About 200m/S
Current consumption: Less than 20mA, generally 5-15mA
Operating temperature: -10 ° c ~ 65 ° c

DPS digital display ac dc voltage and current dual display meter is to simultaneously display the measured AC voltage and ac dc current on the instrument Widely used in power distribution cabinets, household power distribution boxes, home appliance repairs, etc.

DPS Current Measurement Dc Digital Volt And Ampere Volt Ampere Meter Meter With GuageDPS Current Measurement Dc Digital Volt And Ampere Volt Ampere Meter Meter With Guage

Technical parameters

Brand
VACORDA
Model No
DP4-A
Shell material
Abs plastic
Product Size (MM)
96*48mm
Application
Current measurement
Working conditions
-10-+50℃
Accuracy
Level 0.5
Power supply
110/220VAC
Transmitting output
4-20mA
Sampling cycle
2.5 times per second
Input
One input
Insulation resistance
DC500 ≥100MΩ
Meaturing method
Dual-slope A/D convert

DPS Current Measurement Dc Digital Volt And Ampere Volt Ampere Meter Meter With Guage

Model Code Tables

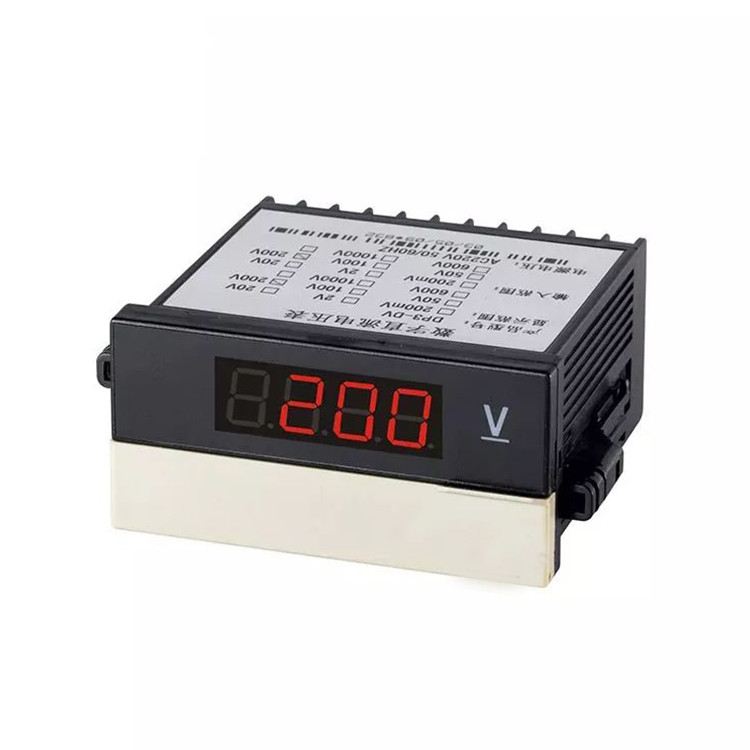

DC digital volt meter (Without transmitting output, Power supply 220VAC)

Model number Range Resolution Mutual inductor transform ratio Accuracy
DP3-DV0.2 199.9mV 100 uV 5MΩ +-0.5%F S +-2digit
DP3-DV2 1.999V 1mV 5MΩ +-0.5%F S +-2digit
DP3-DV20 19.99V 10mV 5MΩ +-0.5%F S +-2digit
DP3-DV200 199.9V 100mV 5MΩ +-0.5%F S +-2digit
DP3-DV500 500V 1V 5MΩ +-1.0%F S +-2digit



Technical Parameter

Max Display range 1999
Input One input
Meaturing method Dual-slope A/D convert
Overflow Display ‘ -1 ’ or ‘ 1 ’
Polarity Display Only ‘ - ’ for DC
Display unit Red LED 0.56”
Power supply 220VAC 50/60Hz
Withstand voltage AC 1500V / 1min
Insulation resistance DC500 ≥100MΩ
Work condition -10 to 50 Degree C, ≤85%RH
Weight 450 g















DPS Current Measurement Dc Digital Volt And Ampere Volt Ampere Meter Meter With Guage

External Dimension

DPS Current Measurement Dc Digital Volt And Ampere Volt Ampere Meter Meter With Guage

Company Information

DPS Current Measurement Dc Digital Volt And Ampere Volt Ampere Meter Meter With Guage

Sichuan VACORDA Instruments Manufacturing Co., Ltd.is a professional production-manufacturing enterprise specialized in designing, producing and marketing of instruments and apparatuses. Our company has been established for 23 years since 1997 to grow up to be a team of high-quality, united, hard-working and truth-seeking characters. Solid foundation has been established.



Our company has got the ISO9001: 2000 international quality system certification in 2005, Import and export trading right in 2012, total 12 patents till 2016, the title of “national high-tech enterprise” and CE certificate for three categories product in 2014. Our company has owned trade marks as “vacorda”. At the same time, our company is preparing for more certificates for foreign market, such as IECEX, API, UL and so on, to lay a foundation for further international market.
