Name: Durable Sanitary Milk Flow Meter 85~265VAC 45~63HZ With Orifice Plate
Brand: vacorda
SKU: HKD-
Rating: 4.5 (137 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Orifice Flow Meter

Power Supply: 85~265VAC 45~63HZ

Accuracy Class: ±1%FS

Working Pressure: ≤ 42.0MPa

Medium Temperature: -40℃- 450℃

Connection Type: Flange Or Wafer Type

Explosion-proof Grade: Exia II CT5Ga Exd II BT6Gb

IP Grade: IP67

Port: Shenzhen/Shanghai

High Light:

orifice flow meter

oxygen flow meter

Basic Infomation

Place of Origin: Sichuan, China (Mainland)

Brand Name: vacorda

Certification: CE/TUV/ISO9001/SGS

Model Number: HKD-

Payment & Shipping Terms

Packaging Details: wooden box

Supply Ability: 100 Piece/Pieces per Week

Gallery

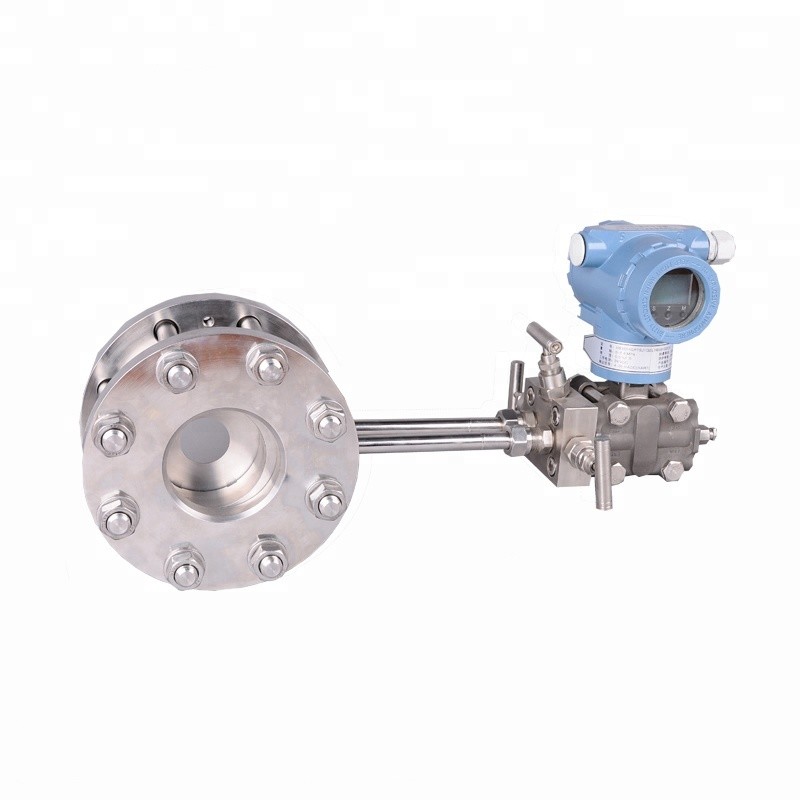

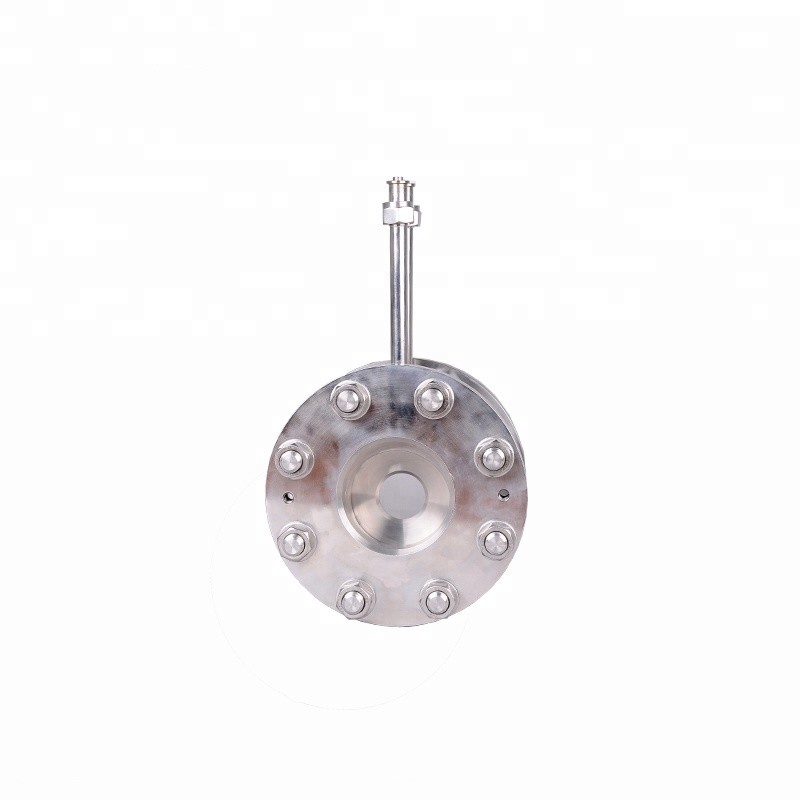

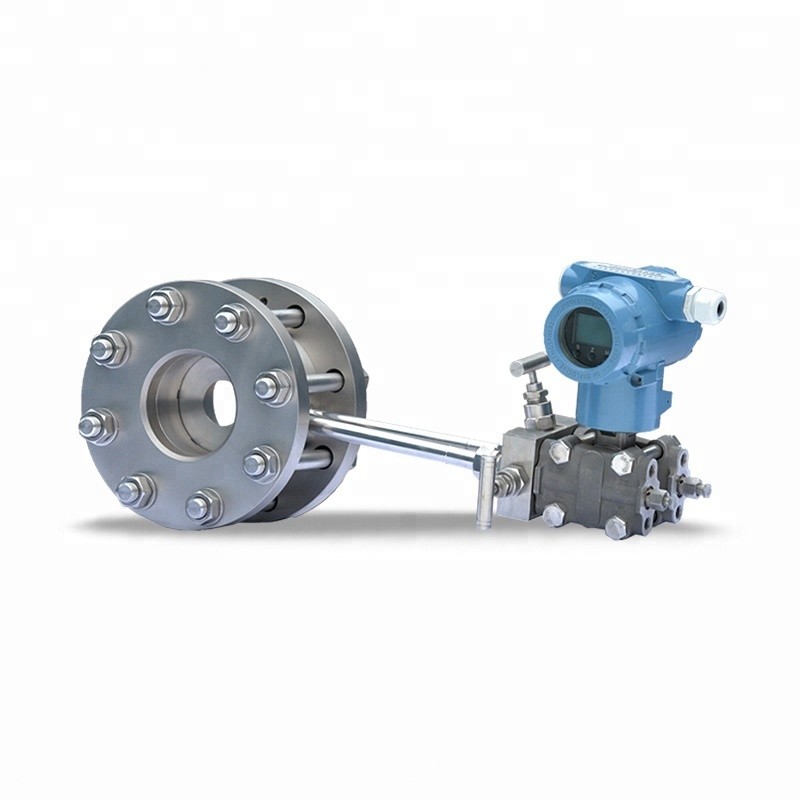

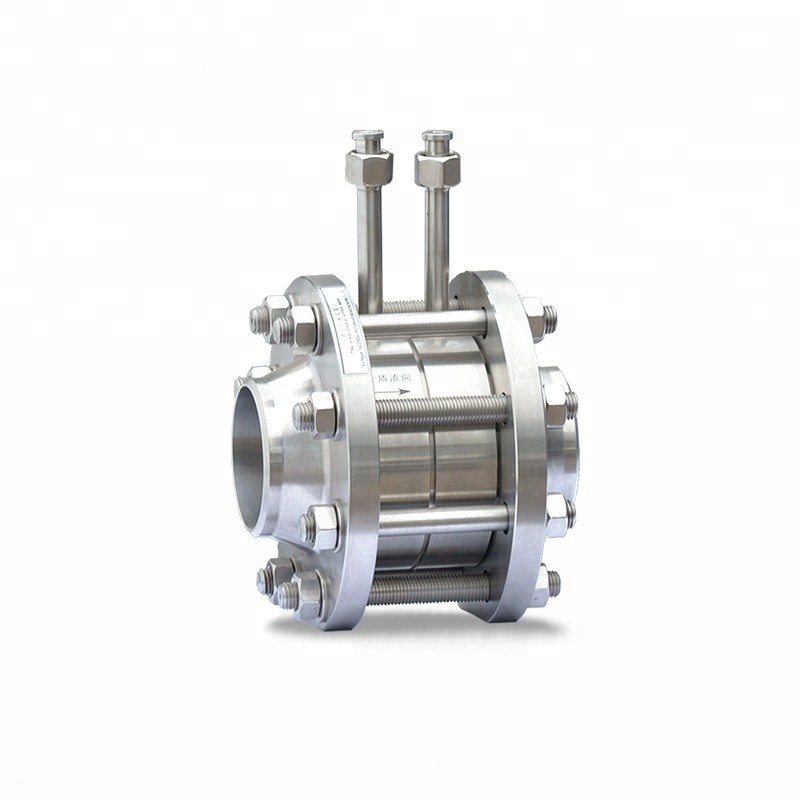

Durable Sanitary Milk Flow Meter 85~265VAC 45~63HZ With Orifice Plate

Product Description

Durable Sanitary Milk Flow Meter 85~265VAC 45~63HZ With Orifice Plate

LG throttling gear is a primary device in a differential pressure flow measurement system, which consists of a throttle, a pressure-receiving device and a straight pipe section. Throttling device is divided into standard throttling device and non-standard throttling device, the one is coincident with IS05167 and GB/T2624 standard is the standard throttling device, the others are non-standard throttling deivce.
When the pipe filled fluid flows through the throttling device in the pipe, according to the law of conservation of energy and the equation of flow continuity, the stream will form a local contraction at the throttle, thereby increasing the flow rate, static pressure reduction, static pressure difference ΔP(or named differential pressure) before and after the throttle. The greater the flow rate of the fluid, the greater the differential pressure generated before and after the throttle, and the amount of fluid flow is measured by measuring the differential pressure before and after the throttle.
Standard throttling devices should normally be used whenever possible, and non-standard throttling devices can be used only when the fluid Reynolds number is small or contains impurities.

Technical Parameters
Nominal diameter:DN15~1200(More than 1200 negotiated orders)
Nominal pressure:≤42MPa
Inaccuracy:±0.5%~±1.5%
Installation method:Flange connection, Welded connection(or customized)
Pressure method: Corner connection pressure (ring chamber or separate drilling), Flange pressure, Span pressure or else
Straight pipe: Upstream5~10D,downstream2~5D

Throttling device classification

classification	Pressure method		Reference model	Nominal diameter(mm)	Nominal pressure(MPa)	Diameter ratio
Orifice plate	Small orifice plate	Corner connection pressure	LG-XH-40/25	15~40	1.0~42	0.1~0.7
	Small orifice plate	Flange pressure	LG-XF-40/25	25~40	1.0~42	0.15~0.7
	Standard orifice	Corner connection pressure	LG-BH-320/100	50~400	1.0~42	0.23~0.8
			LG-BH-100/65	50~250	1.0~42
			LG-BH-63/50	15~150	1.0~42
			LG-BZ-16/600	450~1600	0.6~2.5
			LG-BZ-10/50	450~1000	0.6~1.6
		Flange pressure	LG-BF-25/300	50~750	1.0~20	0.25~0.75
		Flange pressure	LG-BZ-40/150	50~400	1.0~20
		Span pressure	LG-BJ-63/150	50~400	1.0~63
	Built-in orifice		LG-BFC-260/80	50~400	1.0~42
	Double orifice		LG-SH-16/100	25~400	1.0~10	0.19~0.82
	1/4 round orifice		LG-HH-160/100	25~400	1.0~26	0.32~0.71
	Conical inlet orifice plate		LG-VH-16/100	25~200	1.0~4.0	0.12~0.32
	Round hole plate		LG-QH-6/1000	50~1600	0.25~2.5	0.32~0.71
	Round hole plate		LG-QH-25/600	50~1400	0.25~2.5	0.32~0.71
Nozzle	Small nozzle		LG-MH-40/32	25~40	1.0~26	0.3~0.71
	Standard nozzle		LG-PH-40/150	50~600	1.0~32	0.30~0.8
	Standard nozzle		LG-PH-63/200	50~600	1.0~32	0.30~0.8
	Long neck nozzle		LG-CJ-260/80	50~400	1.0~32	0.22~0.8
Venturi tube	Venturi nozzle		LG-LT-16/150	65~400	0.6~2.5	0.32~0.78
	Classical venturi	Machining	LG-WT-6/200	50~600	0.6~40	0.38~0.75
	Classical venturi	Rough welding	LG-WT-6/1200	200~2000	0.6~2.5	0.38~0.73

Small orifice plate, Small nozzle Reference size table

Pressure Level	Size	DN15	DN25	DN32	DN40
PN25	D	95	115	135	145
PN25	L	126	128	143	149
PN40	D	95	115	135	148
PN40	L	126	147	148	148
PN63	D	105	135	150	165
PN63	L	126	152	159	177
PN100	D	95	135	150	165
PN100	L	126	155	162	178

Note: The length L is based on the actual size, and the dimensions in the table are for reference only.

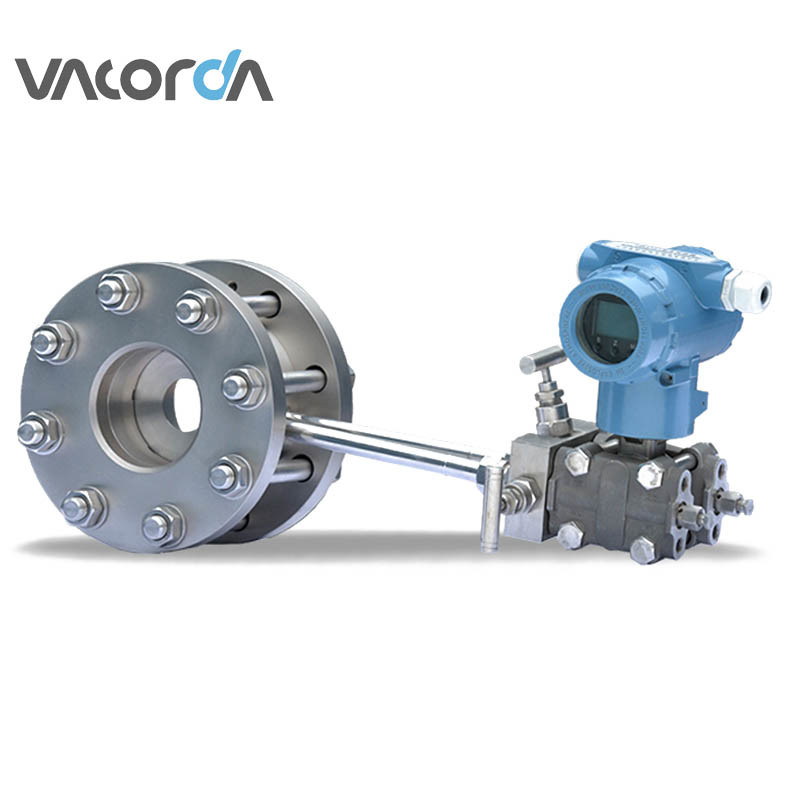

Durable Sanitary Milk Flow Meter 85~265VAC 45~63HZ With Orifice Plate 1

Company Profile and Certificate

Durable Sanitary Milk Flow Meter 85~265VAC 45~63HZ With Orifice Plate 2
