Natural/argon gas vortex flow meter with bluff body

Product Description

Vortex flowmeter is designed for measuring the volume/mass flow of liquids, gases and steam based on Karman vortex principle. Adopting advanced differential algorithm along with measurement of isolation, shielding and wave filtering, vortex flow meters have the advantages of immunity on vibration and noise. Meanwhile, the liabilities of LUGB series vortex flow meters are well guaranteed by unique sensor packaging technology. Upon receipt, examine your meter for visible damage. The Vortex is a precision measuring instrument and should be handled carefully. Remove the protective plugs and caps for a thorough inspection. If any items are damaged or missing, contact us. Make sure the Vortex flow model meets your specific needs.

Features

1.High accuracy and good repeatability

2.The detection element has no contact with the fluid, and has stable performance and high reliability.

3.The structure is simple and firm, movable parts, and reliable in long-term operation.

4.The measuring range is wide that can up to 1:10 (special up to 15).

5.The pressure loss is small, about 1/4~1/2 of the orifice flowmeter

Scope of application

It is widely used in large, medium and small types of pipeline drainage, industrial circulation, sewage treatment, oil and chemical reagents, and the measurement of compressed air, saturated, overheated steam, natural gas and other medium flow.

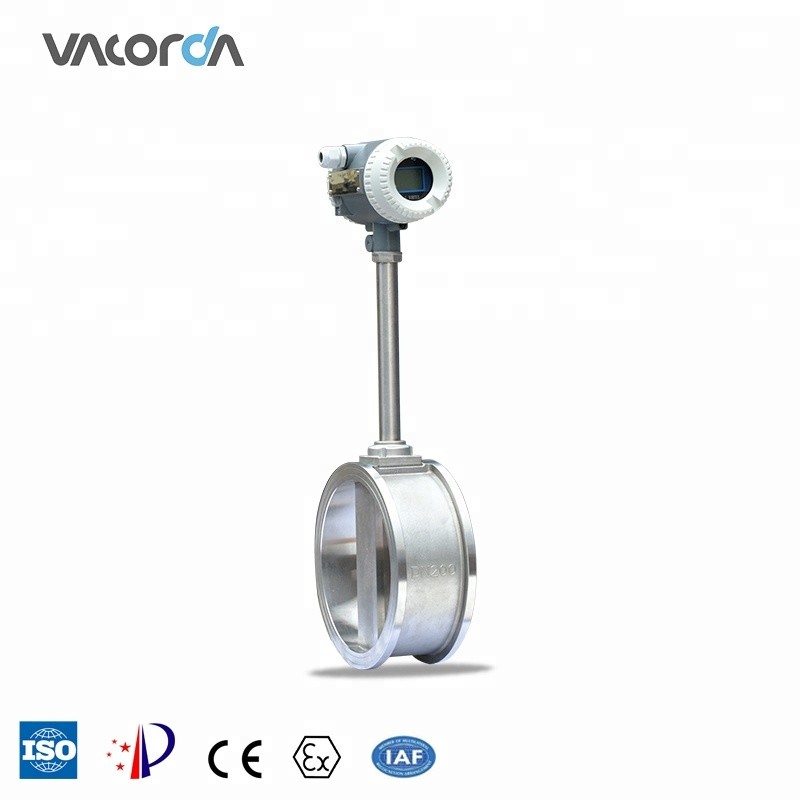

 Natural/argon gas vortex flow meter with bluff body 0

                              flange type                                                                                                                                flange clamping type



Product Parameters

(1)Measuring medium

Liquid,gas,steam

(2)Medium velocity

Liquid:0.5~7,gas:4~40,steam:7~70m/s

(3)Accuracy

Liquid:1.0,gas:1.5,insertion type:2.5

(4)Nominal size

DN15~DN300(Pipe type,Gripping type)

DN150~DN2000(insertion type)

(5)Medium temperature

-40℃~80℃,Middle temperature:-40℃~250℃,High temperature:-40℃~350℃

(6)Nominal pressure

1.0~6.3Mpa(>6.3 Customizable)

(7)Installation method

Flange,Clamping,insertion

(8)Signal outputPulse+4-20mADC, RS485, HART

(9)Power Supply

12V,24VDC(Three line pulse output)

24VDC(Two wire power supply)

3.6V lithium 7.5AH battery,2years lifetime(on the spot display)

(8)Electrical interface

M20x1.5,1.2''NPT

(9)Body material

304.316L(Customizable)

(10)head material

Cast aluminum shell,Stainless steel shell(Customizable)

(12)Protection grade                                                      IP65



(13) Explosion-proof grade                                                                   EX II BT4Gb, EXI II aBT4Ga

Detailed Images

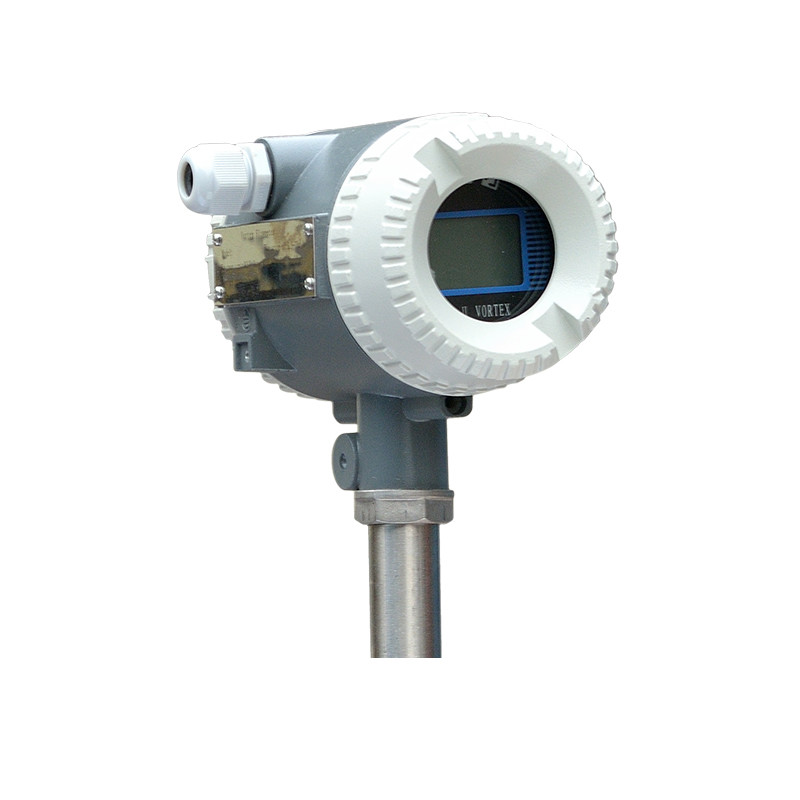

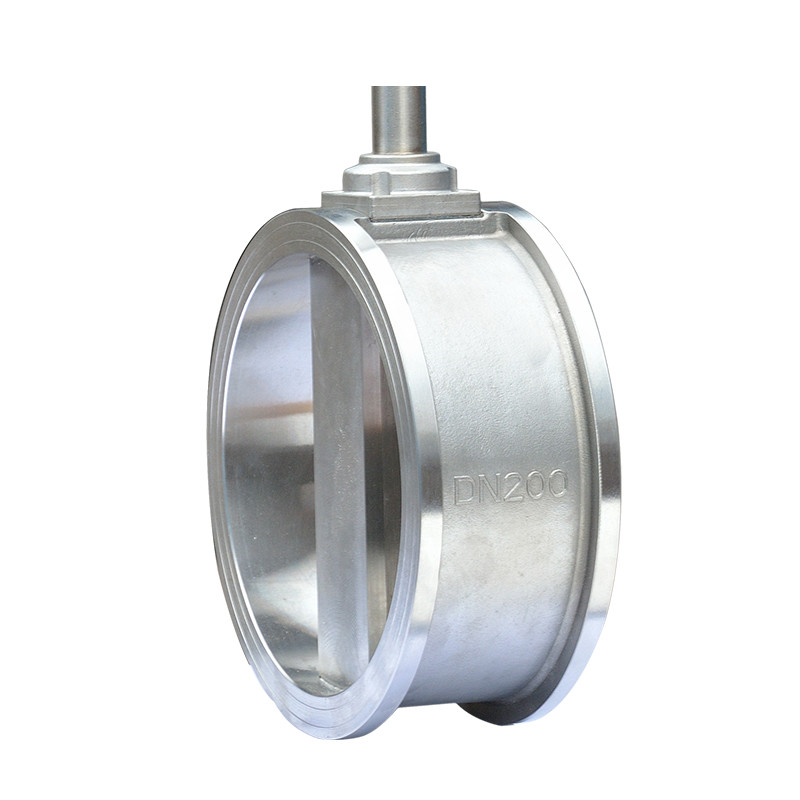

Natural/argon gas vortex flow meter with bluff body 1Natural/argon gas vortex flow meter with bluff body 2Natural/argon gas vortex flow meter with bluff body 3





Related Products

Natural/argon gas vortex flow meter with bluff body 4Natural/argon gas vortex flow meter with bluff body 5Natural/argon gas vortex flow meter with bluff body 6Natural/argon gas vortex flow meter with bluff body 7Natural/argon gas vortex flow meter with bluff body 8



Measurabe Flow Rate Range

Note: the flow range a below is foe reference only. Consult us if you have special requirement.

Refer to the nameplate or certificate for actual flow rang



   diameter

     (mm)

     liquid

 flow(m3/h)

 air(Standard state)

      flow(Nm3/h)

150.6~6.06~40
201.0~8.08~50
251.3~1310~80
321.5~1514~120
403~3025~250
504~4030~300
656~6050~500
8013~13080~800
10020~20020~1200
12536~360160~1600
15050~500250~2500
200100~1000400~4000
250150~1500600~6000
300200~20001000~10000



Intallation





Cautions for installation



Natural/argon gas vortex flow meter with bluff body 9



Rquired Lengths of Straight Run



 Natural/argon gas vortex flow meter with bluff body 10

The recommended guidelines are given to enhance accuracy and maximize performance. Distance given here are minimum requirements; double them for desire straight pipe lengths.



        •  Upstream: allow a minimum straight pipe length at least 10 times the internal diameter of the pipe.

           For example, with the 50mm pipe ,there should be 500mm of straight pipe immediately upstream.

           Desired upstream straight pipe length is 500mm.



        •  Downstream:allow a minimum straight pipe length at least 5 times teh internal diameter of the pipe. For              example, with the 50mm pipe , there should be 250mm of straight pipe immediately upstream.                            Desired upstream straight pipe is 500mm.





Product Application

 Natural/argon gas vortex flow meter with bluff body 11

Company Information

Natural/argon gas vortex flow meter with bluff body 12

Sichuan VACORDA Instruments Manufacturing Co., Ltd. is a professional production-manufacturing enterprise specialized in designing, producing and marketing of instruments and apparatuses. Our company has been established for 21 years since 1997 to grow up to be a team of high-quality, united, hard-working and truth-seeking characters. Solid foundation has been established.
