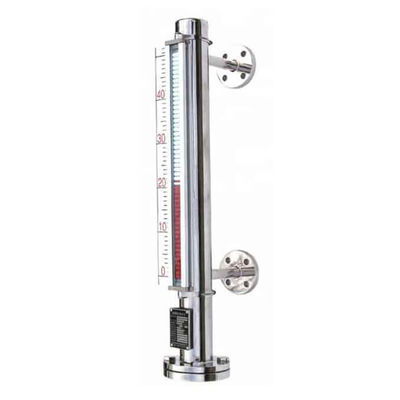

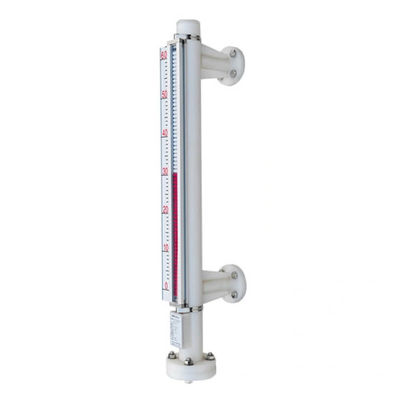

Side Mount Anti-Corrosion Magnetic Floater Oil Level Gauge For Tank
Product Description
Inside the indicator tube is a lightweight magnetized indicator or series of metallic flags. The indicator is magnetically coupled to the float and moves up and down with the liquid level. The indicator allows the operator to read the level from more than 100 feet away. The only moving parts are the float and the indicator.
Working Principle
Magnetic level gauges work on the principle of communicating vessels, therefore the level in the measuring chamber will be the same as the level in the vessel. The measuring chamber is fitted with a float, which has a magnet inside. The float with magnet will float on the medium and the magnet in the float will turn the flaps of the indicating rail.
Advantages
Permanent indication without external power supply
Low temperature version is fitted with ice free indication strip
Fully adjustable switches
Back lighting is unnecessary
Eccentric drain cannot blocked by the float
Product Parameters
(1) Center-center distance: | 150~6000mm |
(2) Medium density: | More than 0.45g/cm3 |
(3) Nominal pressure: | PN2.5~PN40, PN40~PN320(x 0.1MPa) |
(4) Material: | SS304, 316L, PP, PTFE, or customized |
(5)Operating temperature: | -190 ~ +425 °C |
(6) Process connection: | DN20~DN80/RF/14,DN80~DN250/RF/14 |
(7)Indicator types: | |
A: Al &ABS flap cylinder | B: Al flap plate |
C: PVC ABS flap cylinder | D: PP&ABS flap cylinder |
E: AL &LED | F: PP&LED |
| 1. Welding cover |
| 1. flange cover |
(10)Protection class: | IP65 |
(11)Application: Widely used in petroleum, chemical industry, oil field, pharmaceuticals industry, | |
Note: Basic type, top mounted type, heat tracing type, LPG specialized type, anti-corrosive | |
