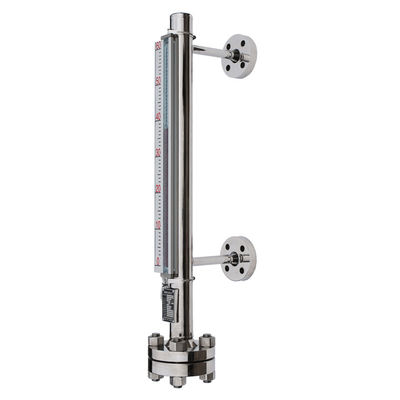

UHC Series anti corrosion PTFE Magnetic Liquid level Gauge With Limit Switch

Basic Information
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Model Number: UHC-CJ
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 7-10 working days per piece
Supply Ability: 100 Piece/Pieces per Week
Pressure: PN6-PN63(x0.1MPa) Connection: FlangeDN20/RF/14
Center To Center Distance: 150mm-6000mm Temperature: <80°c
Meterial: Ss304,ss316L,1Cr18Ni9Ti,0Cr18Ni9,00Cr17Ni14Mo2,Titanium Measuring Range: 150~8000mm (center Distance) Or On Request
Accuracy: 10mm(standard),5mm Product Name: UHC Series Anti Corrosion PTFE Magnetic Liquid Level Gauge With Limit Switch
High Light:

magnetic liquid level gauge

,

magnetic fuel tank level indicator

UHC Series Magnetic Float Liquid level Gauge With Limit Switch





Product Parameters



Center-center distance: 150~6000mm
Medium density: More than 0.45g/cm3
Nominal pressure: PN6~PN63(x 0.1MPa)
Material: SS304, 316L, PP, PTFE, or customized
Operating temperature: <80 °C
Process connection: Flange or customized
Indicator types:
A: Al &ABS flap cylinder B: Al flap plate
C: PVC ABS flap cylinder D: PP&ABS flap cylinder
E: AL &LED F: PP&LED
Structure of top chamber:

1..flange

2.flange with M14*1.5 plug screw

3.flange with DN20 flange

4.flange with air valve

Structure of bottom chamber:

1.flange cover

2.flange with drain plug screw

3.flange with DN20 welding tube

4.flange with DN20 flange

5.flange with needle/ball valve

Protection class:

IP65


Product feature
  • Minimal leak points as compared to sight glasses
  • No process liquid in contact with indicator glass
  • Designed for both gas/liquid and liquid/liquid interface measurements
  • Measure both interface and top level with one indicator
FAQ


Q: What certificates do we have ?
A:We have the certification of ISO,CE and SIL.etc we could send them to you by email.



Q:How is the price?
A:Our products are customized ones, so the price depend on the your actual working parameters.



Q:Could I visit your factory?
A:Welcome! our factory is located in Zigong, Sichuan province, China.



Q: How soon can you arrange the production?
A: Once getting your product confirmation and receiving your payment, we will arrange the production immediately.



Q: What are your brand names for international market?
A: "VACORDA" is the brand name for our international marketing.


Detailed Images

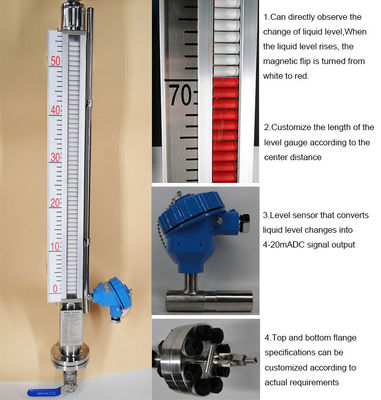

UHC Series anti corrosion PTFE Magnetic Liquid level Gauge With Limit Switch 0
