High temperature float ball level switch with high accuracy

Basic Information
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Model Number: UQK
Minimum Order Quantity: 1 Piece/Pieces
Price: $45.00 - $120.00 / Pieces
Packaging Details: wooded box.
Supply Ability: 100 Piece/Pieces per Week
Name: Level Float Switch Warranty: 18 Months
Delivery: Express, Ship, Air Temerature: -40~120℃
Pressure: 2.5MPa Material: 304,316 L,1Cr18Ni9Ti, 0Cr18Ni9, 00Cr17Ni14Mo2,321, Titanium
Connection: Flange Lifetime: 5-10 Years
Insert Length: 80~300mm Switching State: 1 Switch
Port: Shanghai/shenzhen
High Light:

water tank level controller

,

water level controller

High temperature float ball level switch with high accuracy

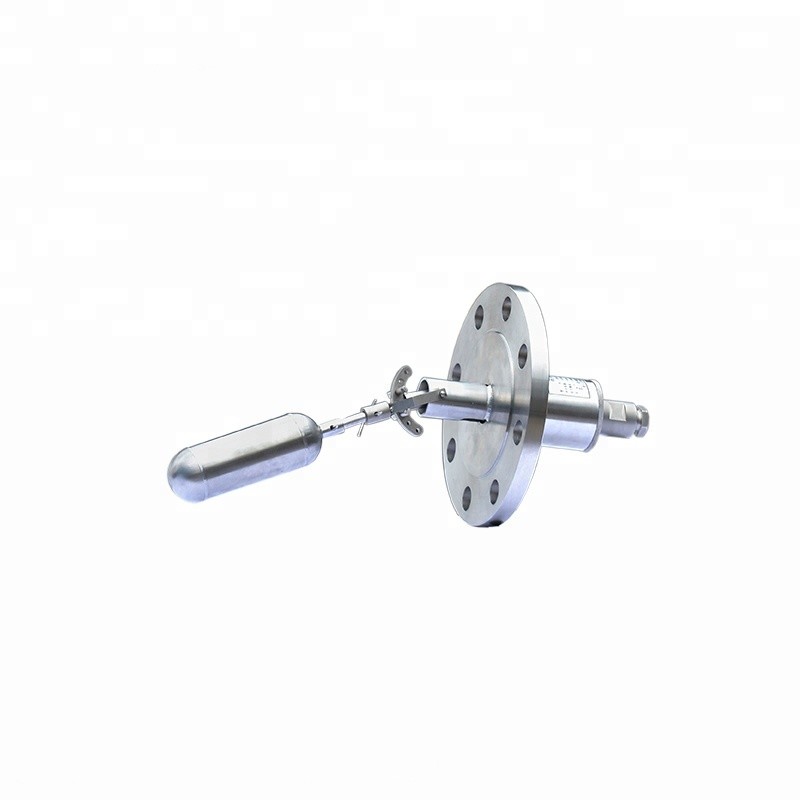

High temperature float ball level switch with high accuracy 0



Features:

1. No external power supply, passive output contact ;

2. Long life span, stable and reliable operation, easy installation, almost no maintenance

3. Independent of mediums’ physical and chemical status.

4. Appliable for all kinds of bad medium environment with density ≥0.5g/cm³.

5. Available for interface detection of mediums with two different densities.

6. Wide application range. Pressure 0~PN160 (max. up to PN320), temperature -40~+150 ° c;

7. At most 8 detecting points, delivering signal independently.

8. Anti-explosion design.

9.Customization.



Application:

UHK magnetic float level switch and pontoon level switch are made of different materials, and can be used in almost all strong and weak corrosion-resistant mediums and none corrosive mediums.



Technical parameters:

Installation type

DN50/RF/PL(HG/T20592-2009; >PN100,HG/T 20615-2009,DN≥65)

Medium Density

≥0.5g/cm3



Float diameter

PN≤6.3MPa, float diameter=45mm;

PN>6.3MPa, float diameter=65mm

Swith condition&Qty

transform type with one switch

Installation depth L

80~300mm

Max voltage

250VAC, 230VAC

Max current

0.6A(SPDT); 2A(SPST)

Max volume

0.6A:60W(reed pipe type); 2A:200W(jiggle switch)

Working temperature scope



-40~80°C   -40~120°C

High temperature

type

≤ 150°C

Pressure

PN2.5~PN160 (Max pressure: PN320)

Note: while pressure>PN100, flange should be ≥DN65.

Connection

M20×1.5 female thread

Installation angle

≤ ±10°

IP grade

IP65

Anti-explosion grade

Exia II CT6Ga or Exd II CT6Gb

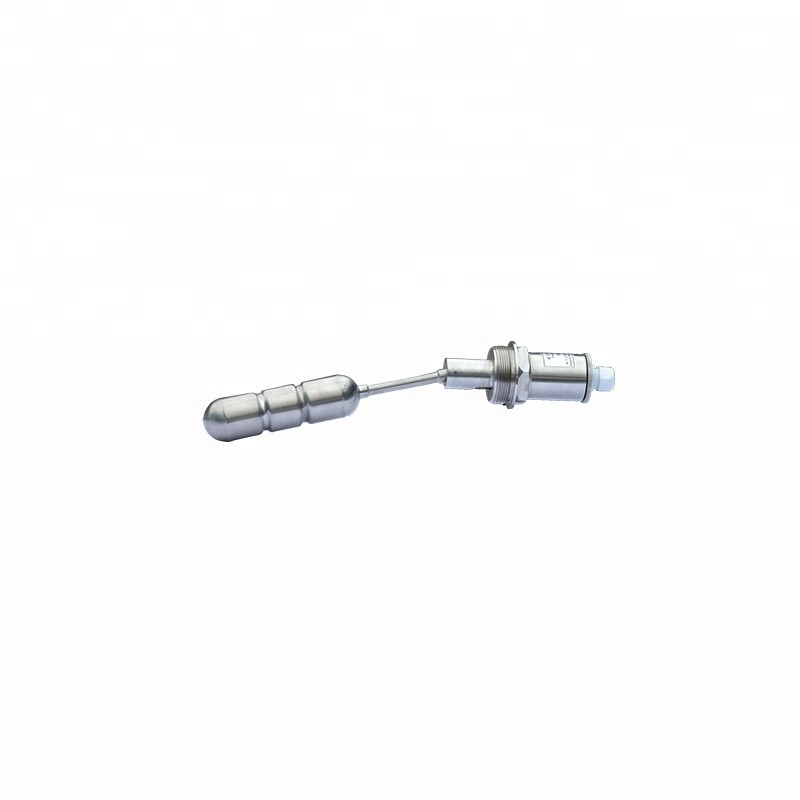

High temperature float ball level switch with high accuracy 1
