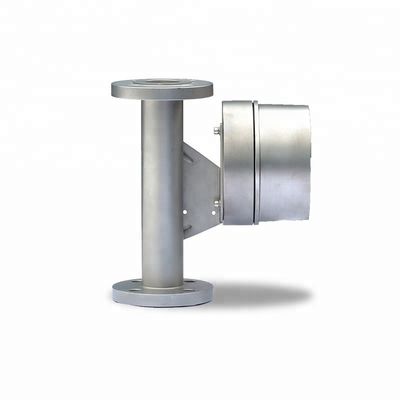

Non-Contacting Magnetic Coupling Transmission Metal Tube Rotameter
1 Piece/Pieces
MOQ
Negotiable
Price
Non-Contacting Magnetic Coupling Transmission Metal Tube Rotameter
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Certification: CE/TUV/ISO9001/SGS
Model Number: LZ
High Light:

rotameter type flow meter

,

metal tube variable area flow meter

Payment & Shipping Terms
Packaging Details: wooden box for flow meter
Supply Ability: 800 Piece/Pieces per Month
Specifications
Product Name: Variable Area N2 Flow Meter
Warranty: 18 Months
Delivery: Express, Ship, Air
Application: Small Pipe, Low Flow Rate
Accuracy: 1.5 Standard
Medium: Corrosion, Non Corrosion Meduim
Material: 304,316 L,1Cr18Ni9Ti, 0Cr18Ni9, 00Cr17Ni14Mo2,321, Titanium
Connection: Flange
Lifetime: 5-10 Years
Explosion Proof Grade: Exia II CT5Ga, Exd II BT5Gb
Port: Shanghai/guangzhou
Product Description

Non-Contacting Magnetic Coupling Transmission Metal Tube Rotameter

Non-Contacting Magnetic Coupling Transmission Metal Tube Rotameter 0

Product Description

Metal tube float flow meter is a type of variable area flowmeter. In a vertical conical tube that expands from bottom to top, the gravity of a float with a circular cross section is absorbed by the liquid, and the float can rise freely in the cone. And drop. Under the action of flow velocity and buoyancy, it moves up and down. After balancing with the weight of the float, it is transmitted to the dial through the magnetic coupling to indicate the flow. Generally divided into glass and metal rotor flowmeter. The metal rotor flowmeter is the most commonly used in the industry. For small diameter corrosive media, glass is usually used. Due to the inherent fragility of the glass material, the key control point also uses a rotameter made of precious metals such as full titanium. . Mainly used in petroleum, chemical, power generation, pharmaceutical, food, water treatment and other complex, harsh environmental conditions, and various media conditions in the flow measurement process.



Product features

1. Single axle, smart display, high reliability, easy maintenance, long life time.

2. Less requirement on the tube.

3. Flow ratio:10:1, special type: 20:1.

4. Suitable for measurements of mediums with small pipe and low flow rate.

5. LCD display, displaying instantaneous flow and whole flow at same time.

6. Non-contacting magnetic coupling transmission.

7. Metal structure, suitable for strong corrosive mediums and environments with high temperature, high pressure and flammable and explosive conditions.

8. Two-wire available, battery and AC supply to choose.

9. Multiple parameters calibration function, data restoration and back-up, power-fail protection function.



 Product Parameters

(1) Medium temperature:

Standard:-40°C~+100°C; PTFE:-50°C~+100°C

High pressure:110°C~+450°C

(2) Output:

DC4~20mA

(3) Working temperature:

-40℃~+75℃

(4) Medium viscosity:

DN15:η<5mPa.s(F15.1~F15.3), η<30mPa.s(F15.4~F15.8)

DN25:η<250mPa.s; DN50~DN200:η<300mPa.s

(5) Environment temperature:

Remote type: -40°C~+85°C

(6) Connection type: Standard: DIN2501 standard flange; special: customize
(7) Accuracy: Standard:1.5; Special: 1.0

(8) Power supply:

Standard: 24VDC two-line 4~20mA(12VDC~32VDC)

(9) Explosion-proof grade:

Exia II CT5Ga   Exd II BT6Gb

(10) Protect grade:

IP65



Detailed Images

  Non-Contacting Magnetic Coupling Transmission Metal Tube Rotameter 1Non-Contacting Magnetic Coupling Transmission Metal Tube Rotameter 2Non-Contacting Magnetic Coupling Transmission Metal Tube Rotameter 3
