Simple Structure Side Mounted Magnetic Level Gauge With Transmitter



Product Description

The UHC magnetic liquid level gauge is made up of measuring body,dual-colored display cylinder, ruler, top&low flange,magnetic ball and transmitter (4-20mA).Based on buoyance principle,the magnetic ball in the body of the level gauge is up or down with the liquid level changing and makes dual-colored turning to show the level of medium. Each cylinder is with two-color axisymmetric structures.The distance of two cylinders is 10mm. Red side of display cylinder indicates liquid and white side display cylinder indicates air. Besides measuring liquid level,it also could measure the interface of the two kinds of liquid.


Product features

• Simple structure, good stability, reliability and durability.

• Isolated medium, indicator, transmitter and switch

• Wide range of operating pressure: vacuum to 42Mpa

• Wide range of operating temperature: -190℃ to 425 ℃

• Independent of medium’s physical and chemical states.

• SPST or SPDT available
 •  Optioning Reed liquid level transducer , Magnetostrictive sensor or  capacitive  two-wire  level  transducer to  transmit  4-20mA DCsignal (or HART) and realize remote control and measurement.


Product Parameters

(1) Center-center distance:

150~6000mm

(2) Medium density:

More than 0.45g/cm3

(3) Nominal pressure:

PN63~PN320(x 0.1MPa)

(4) Material:

SS304, 316L or customized

(5)Operating temperature:

-190 ~ +425 °C

(6) Process connection:

DN20/RF/14(or customized)

(7)Indicator types:

    A: Al &ABS flap cylinder

B: Al flap plate

    C: PVC ABS flap cylinder

D: PP&ABS flap cylinder

    E: AL &LED

F: PP&LED

 (8) Structure of top chamber:

1.Welding cover
2.welding cover with M14*1.5 plug screw
3.flange
4.flange with M14*1.5 plug screw
5.welding cover with DN20 flange
6.flange with DN20 flange
7.welding cover with air valve
8.flange with air valve

(9) Structure of bottom chamber:

1.flange cover
2.flange with drain plug screw
3.flange with DN20 welding tube
4.with DN20 flange
5.with needle/ball valve

(10)Protection class:

IP65

Application: Widely used in petroleum, chemical industry, oil field, pharmaceuticals industry, food, wine industry etc., suitable for level measurements under the environment of high/low temp., high pressure, strong corrosion, toxicity.

Note: Basic type, top mounted type, heat tracing type, LPG specialized type, anti-corrosive type, boiler steam specialized type etc, they have some differences in technical parameter. Different pressure has different flange specification.


Detailed Images

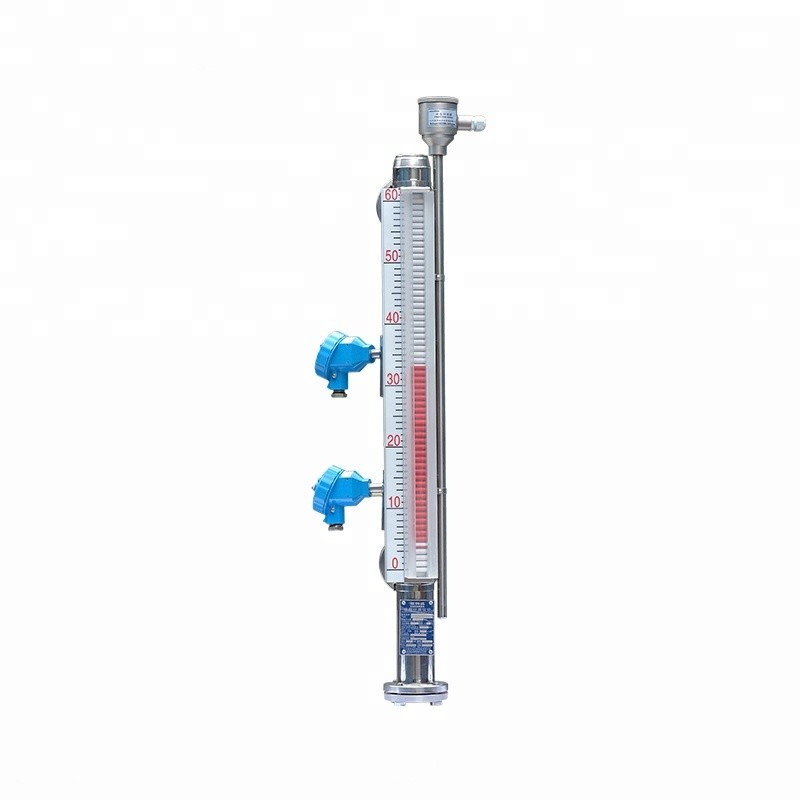

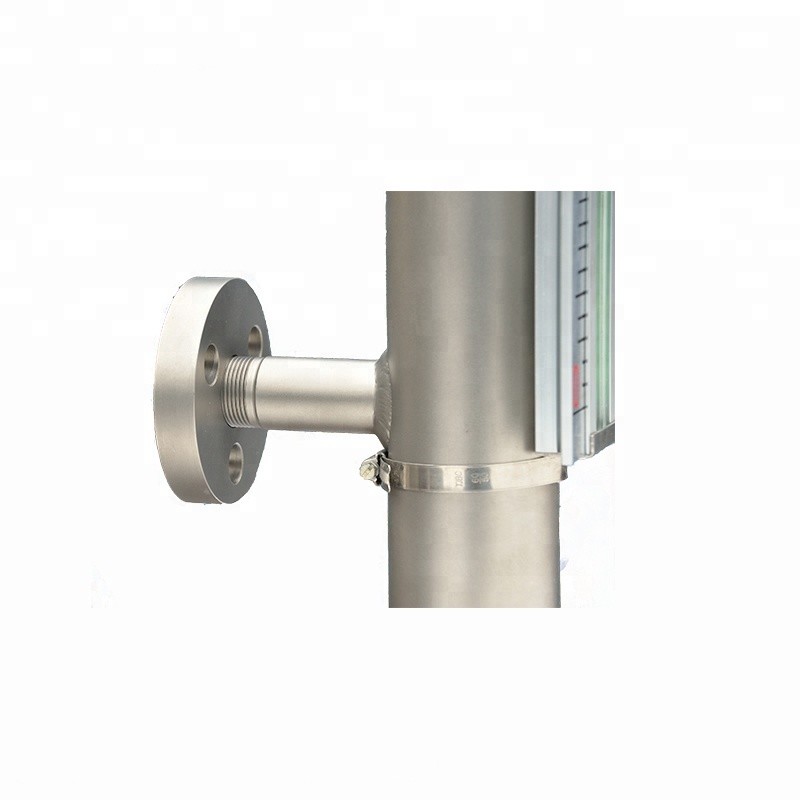

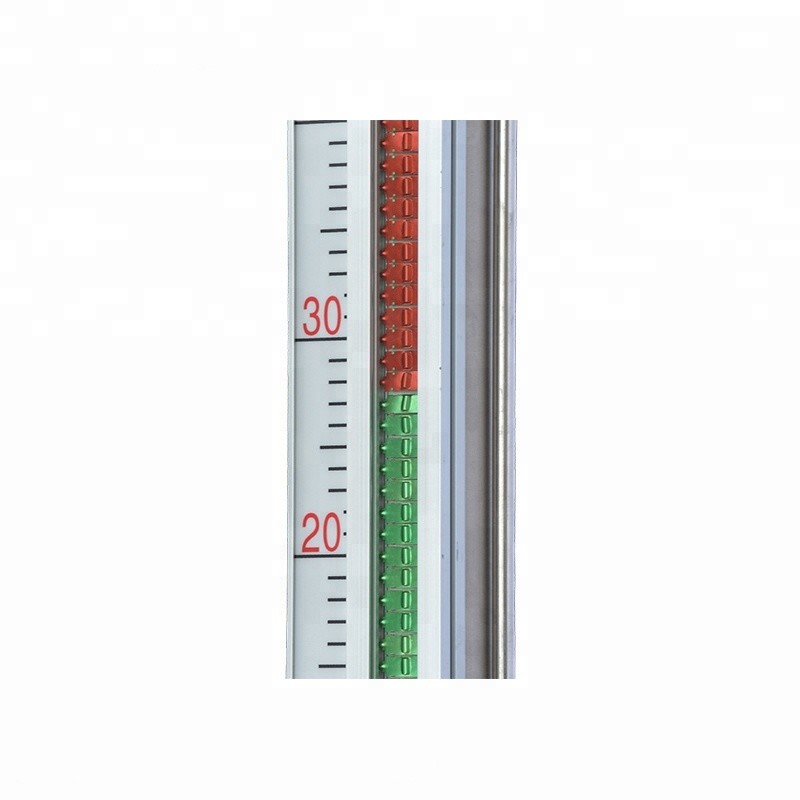

 Simple Structure Side Mounted Magnetic Level Gauge With Transmitter 0Simple Structure Side Mounted Magnetic Level Gauge With Transmitter 1
