VACORDA 4-20mA Fuel Tank Level Gauge Sight Glass With Good Stability
1 Piece/Pieces
MOQ
Negotiable
Price
VACORDA 4-20mA Fuel Tank Level Gauge Sight Glass With Good Stability
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Certification: CE/TUV/ISO9001/SGS
Model Number: UHC
High Light:

20mA magnetic liquid level gauge

,

magnetic fuel tank level indicator

,

20mA Fuel Tank Level Gauge

Payment & Shipping Terms
Packaging Details: Wooden box or as your request
Supply Ability: 100 Piece/Pieces per Week
Specifications
Temperature: -190~425℃
Product Name: VACORDA 4-20mA Fuel Tank Level Gauge Sight Glass With Good Stability
Pressure: From Vacuum To 42Mpa
Color: White/red Flap Indicator
Installation Form: Side Mounted,top Mounted,rope Type, Side+top Mounted...
Material: 304,316 L,1Cr18Ni9Ti, 0Cr18Ni9, 00Cr17Ni14Mo2,321, Titanium
Center To Center Distance: 150~6000mm Or Customize
Protection Class: IP65
Life Span: 5-8 Years
Keyword: Fuel Tank Level Indicator
Port: Shanghai/shenzhen
Product Description

VACORDA 4-20mA Fuel Tank Level Gauge Sight Glass With Good Stability


Product Description

The UHC type magnetic flap liquid level gauge is made up of measuring body,dual-colored display

cylinder, ruler, top&low flange, magnetic ball and transmitter (4-20mA). Based on buoyance

principle, the magnetic ball in the body of the level gauge is up or down with the liquid level

changing and makes dual-colored turning to show the level of medium. Each cylinder is with

two-color axisymmetric structures. The distance of two cylinders is 10mm. Red side of display

cylinder indicates liquid and white side display cylinder indicates air. Besides measuring liquid

level, it also could measure the interface of the two kinds of liquid.



Installation

VACORDA 4-20mA Fuel Tank Level Gauge Sight Glass With Good Stability 0

 Product features

1. Simple structure, good stability and reliability.

2. Independent of medium’s physical and chemical states such as conductivity, dielectric constants, foam etc.

3. Appliable for all kinds of medium environment such as corrosive, toxic and explosive one.

4. Interface measurement or level measurement of 2 kinds of medium with different density.

5. Two-wire 4~20mADC signal output, 0.8’’ or 0.56” LED digital display.



Product Parameters

(1) Center-center distance:

150~6000mm

(2) Medium density:

More than 0.45g/cm3

(3) Nominal pressure:

PN2.5~PN40, PN40~PN320(x 0.1MPa)

(4) Material:

SS304, 316L, PP, PTFE, or customized

(5)Operating temperature:

-190 ~ +425 °C

(6) Process connection:

DN20~DN80/RF/14,DN80~DN250/RF/14

(7)Indicator types:

A: Al &ABS flap cylinder

B: Al flap plate

C: PVC ABS flap cylinder

D: PP&ABS flap cylinder

E: AL &LED

F: PP&LED





(8) Structure of top chamber:

1.Welding cover

2.welding cover with M14*1.5 plug screw

3.flange

4.flange with M14*1.5 plug screw

5.welding cover with DN20 flange

6.flange with DN20 flange

7.welding cover with air valve

8.flange with air valve



(9) Structure of bottom chamber:

1.flange cover

2.flange with drain plug screw

3.flange with DN20 welding tube

4.with DN20 flange

5.with needle/ball valve

(10)Protection class:

IP65

(11)Application: Widely used in petroleum, chemical industry, oil field, pharmaceuticals industry,

food, wine industry etc., suitable for level measurements under the environment of high/low

temp., high pressure, strong corrosion, toxicity.

Note: Basic type, top mounted type, heat tracing type, LPG specialized type, anti-corrosive

type, boiler steam specialized type etc, they have some differences in technical parameter.

Different pressure has different flange specification.

Detailed Images

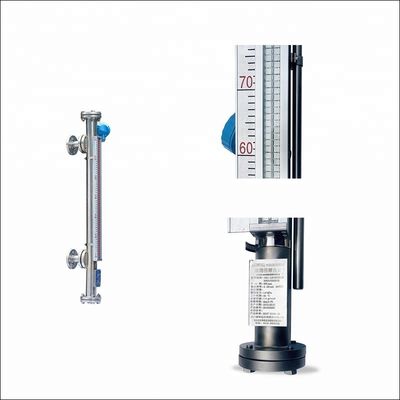

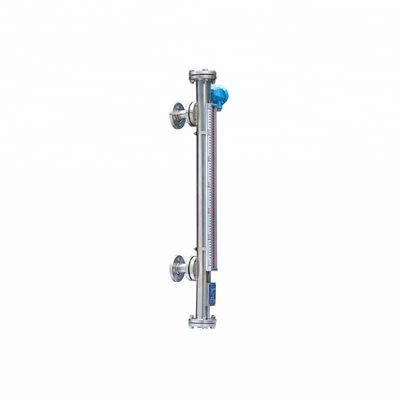

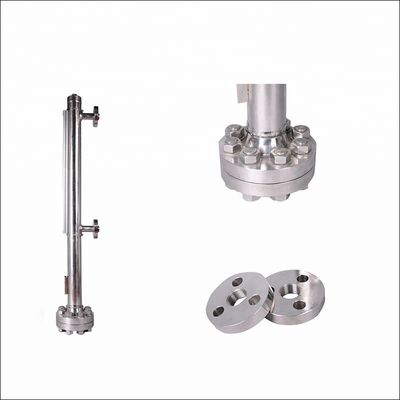

VACORDA 4-20mA Fuel Tank Level Gauge Sight Glass With Good Stability 1VACORDA 4-20mA Fuel Tank Level Gauge Sight Glass With Good Stability 2VACORDA 4-20mA Fuel Tank Level Gauge Sight Glass With Good Stability 3VACORDA 4-20mA Fuel Tank Level Gauge Sight Glass With Good Stability 4

The working principle of the magnetic flap level gauge

The magnetic flap level gauge (also called the magnetic float level gauge) is developed based on the principle of buoyancy and the magnetic coupling effect. When the liquid level in the measured container rises and falls, the magnetic float in the liquid level gauge body tube also rises and falls, and the permanent magnet in the float is transferred to the magnetic column flip indicator through magnetic coupling, driving the red and white column to flip 180 degrees. When the liquid level rises, the column turns from white to red, and the liquid level drops, and the column turns from red to white. The red and white junction of the indicator is the actual height of the liquid level in the container, so as to achieve a clear indication of the liquid level. The magnetic flap level gauge can be directly used to observe the level of the medium in various containers. It is suitable for liquid level indication in petroleum, chemical and other industrial fields. It has simple structure, intuitive observation and clear, no blockage, no leakage, convenient installation and simple maintenance. The upper and lower mounting flanges of the glass plate level gauge are connected with the container to form a connector, and the actual height of the liquid level in the container can be directly observed through the glass plate. The upper and lower valves are equipped with safety steel balls. When the glass is accidentally damaged, the steel ball is automatically sealed under the action of the internal pressure of the container to prevent the liquid in the container from overflowing and ensure the safety of the operator.
