Vacorda Local Display Reliable Water Tank Magnetic Level Gauge
1 Piece/Pieces
MOQ
USD150-800/Piece
Price
Vacorda Local Display Reliable Water Tank Magnetic Level Gauge
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Sichuan, China (Mainland)
Brand Name: Vacorda
Certification: CE, ISO, SIL
Model Number: UHC
High Light:

IP65 diesel tank level indicator

,

mechanical tank level gauge

,

IP65 Magnetic Level Gauge

Payment & Shipping Terms
Packaging Details: Standard wooden box for long distance transportation
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100 Piece/Pieces per Week
Specifications
Product Name: Vacorda Local Display Reliable Water Tank Magnetic Level Gauge
Installation Form: Side/top Mounted/bottom Mounted.etc
Material: 304,316 L,1Cr18Ni9Ti, 0Cr18Ni9, 00Cr17Ni14Mo2,321, Titanium
Working Temperature: -190~425℃
Center To Center Distance: 150~6000mm Or Customized
Protection Grade: IP65
Color: Red/white Flap Indicator
Installation Interface: Flange, Thread Or Welded Pipe
Display: Optional, Direct Reading Or LED
Keyword: Level Gauge For Medicine Industry
Port: Shanghai/Shenzhen
Product Description

Vacorda Local Display Reliable Water Tank Magnetic Level Gauge


Product Description

The UHC magnetic level gauge is made up of measuring body,dual-colored display cylinder, ruler, top&low flange,magnetic ball and transmitter (4-20mA).Based on buoyance principle,the magnetic ball in the body of the level gauge is up or down with the liquid level changing and makes dual-colored turning to show the level of medium. Each cylinder is with two-color axisymmetric structures.The distance of two cylinders is 10mm. Red side of display cylinder indicates liquid and white side display cylinder indicates air. Besides measuring liquid level,it also could measure the interface of the two kinds of liquid.



Detailed Images

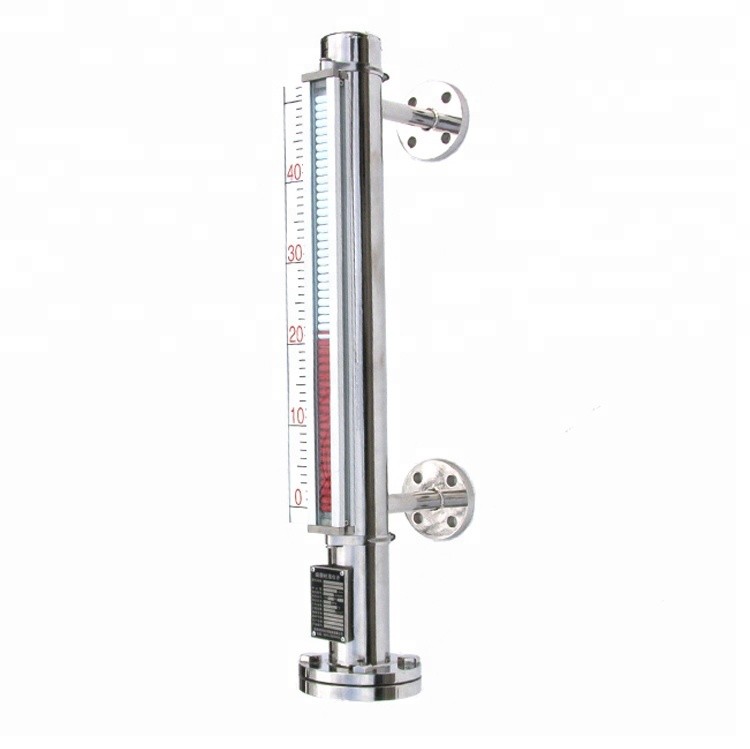

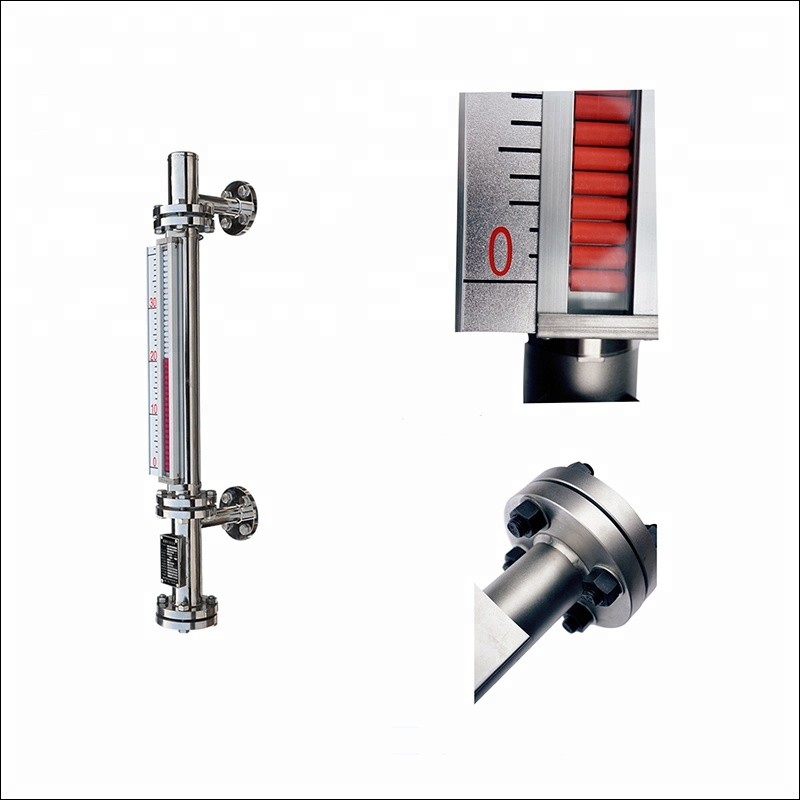

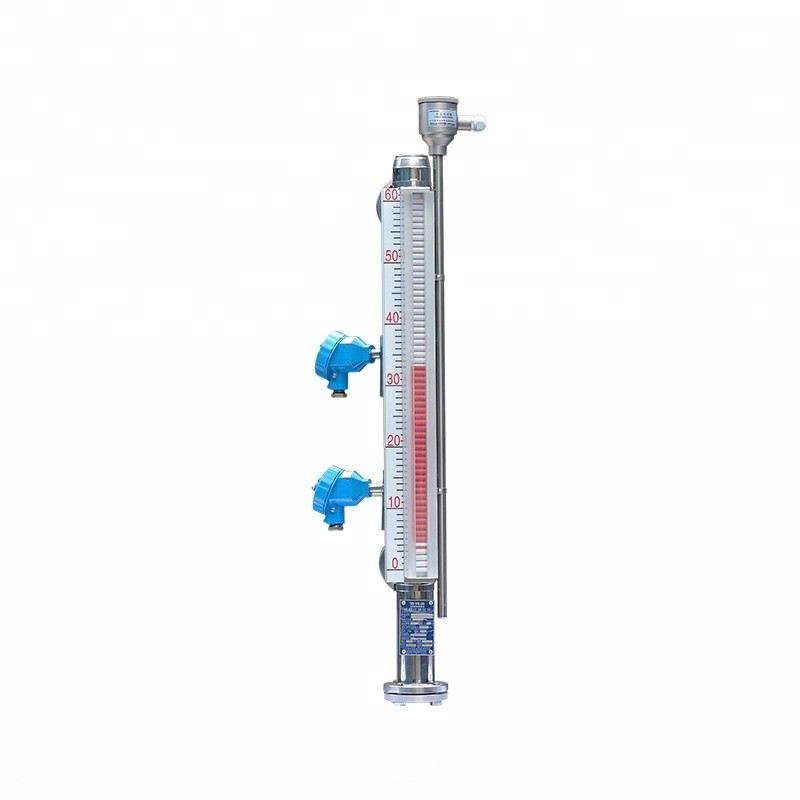

Vacorda Local Display Reliable Water Tank Magnetic Level Gauge 0Vacorda Local Display Reliable Water Tank Magnetic Level Gauge 1Vacorda Local Display Reliable Water Tank Magnetic Level Gauge 2Vacorda Local Display Reliable Water Tank Magnetic Level Gauge 3

Product Parameters

(1) Center-center distance:

150~6000mm or customized

(2) Medium density:

More than 0.45g/cm3

(3) Nominal pressure:

PN2.5~PN40, PN40~PN320(x 0.1MPa)

(4) Material:

SS304, 316L, 321,PP, PTFE, or customized

(5)Operating temperature:

-190 ~ +425 °C

(6) Process connection:

DN20~DN80/RF/14,DN80~DN250/RF/14

(7)Indicator types:

A: Al &ABS flap cylinder

B: Al flap plate

C: PVC ABS flap cylinder

D: PP&ABS flap cylinder

E: AL &LED

F: PP&LED

 (8) Structure of top chamber:

1.Welding cover
2.welding cover with M14*1.5 plug screw
3.flange
4.flange with M14*1.5 plug screw
5.welding cover with DN20 flange
6.flange with DN20 flange
7.welding cover with air valve 8.flange with air valve

(9) Structure of bottom chamber:

1.flange cover
2.flange with drain plug screw
3.flange with DN20 welding tube
4.with DN20 flange
5.with needle/ball valve

(10)Protection class:

IP65

Application: Widely used in petroleum, chemical industry, oil field, pharmaceuticals industry, food,
wine industry etc., suitable for level measurements under the environment of high/low temp.,
high pressure, strong corrosion, toxicity.

Note: Basic type, top mounted type, heat tracing type, LPG specialized type, anti-corrosive type,
boiler steam specialized type etc, they have some differences in technical parameter.


Product installation
Vacorda Local Display Reliable Water Tank Magnetic Level Gauge 4
Vacorda Local Display Reliable Water Tank Magnetic Level Gauge 5
Packing and delivery

Vacorda Local Display Reliable Water Tank Magnetic Level Gauge 6
